Wiper and Washer Systems

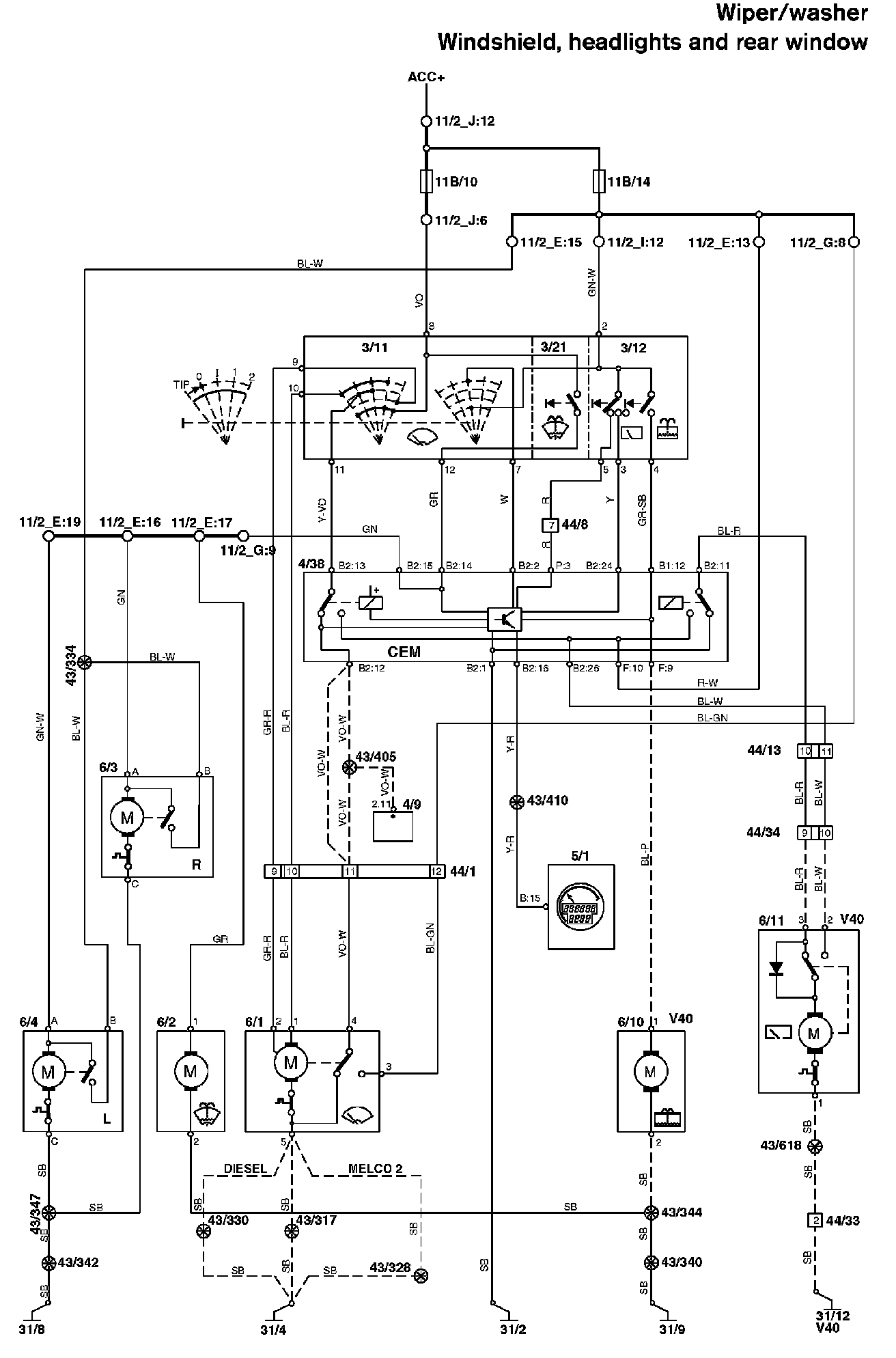

Wiper/Washer, Windshield, Headlights And Rear Window

Wiper/Washer, Windshield, Headlights And Rear Window:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
