Electric Fan With Assembly Parts. 4CYL Turbo


Electric Fan With Assembly Parts. 4CYL Turbo

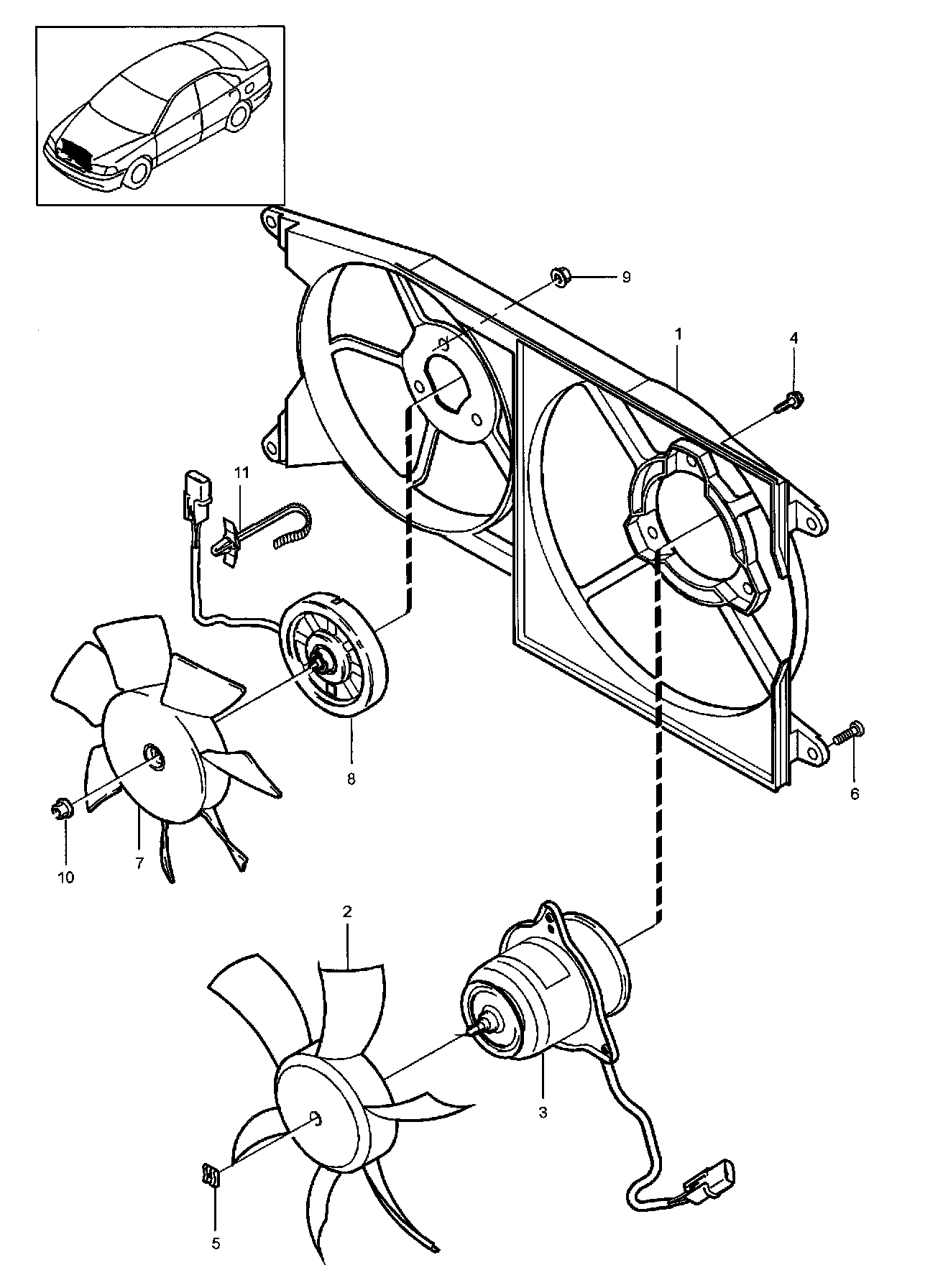

Electric Fan With Assembly Parts. 4CYL Turbo (Illustration):

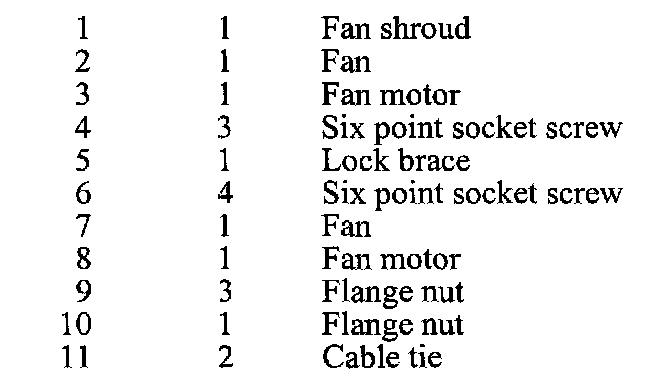

Electric Fan With Assembly Parts. 4CYL Turbo (Legend):
