Connector A, Terminals #A1-#A24

Signal specification

Combined instrument panel signal description

Signal specification, model year up to 1999 inclusive

Connector A, terminals # A1 - # A24
All values given below are between the respective terminal in column 1 and terminal # A13 (signal ground).If this is not the case it is indicated in parentheses.

NOTE: It is important to connect the breakout box and check ground terminals before reading off.

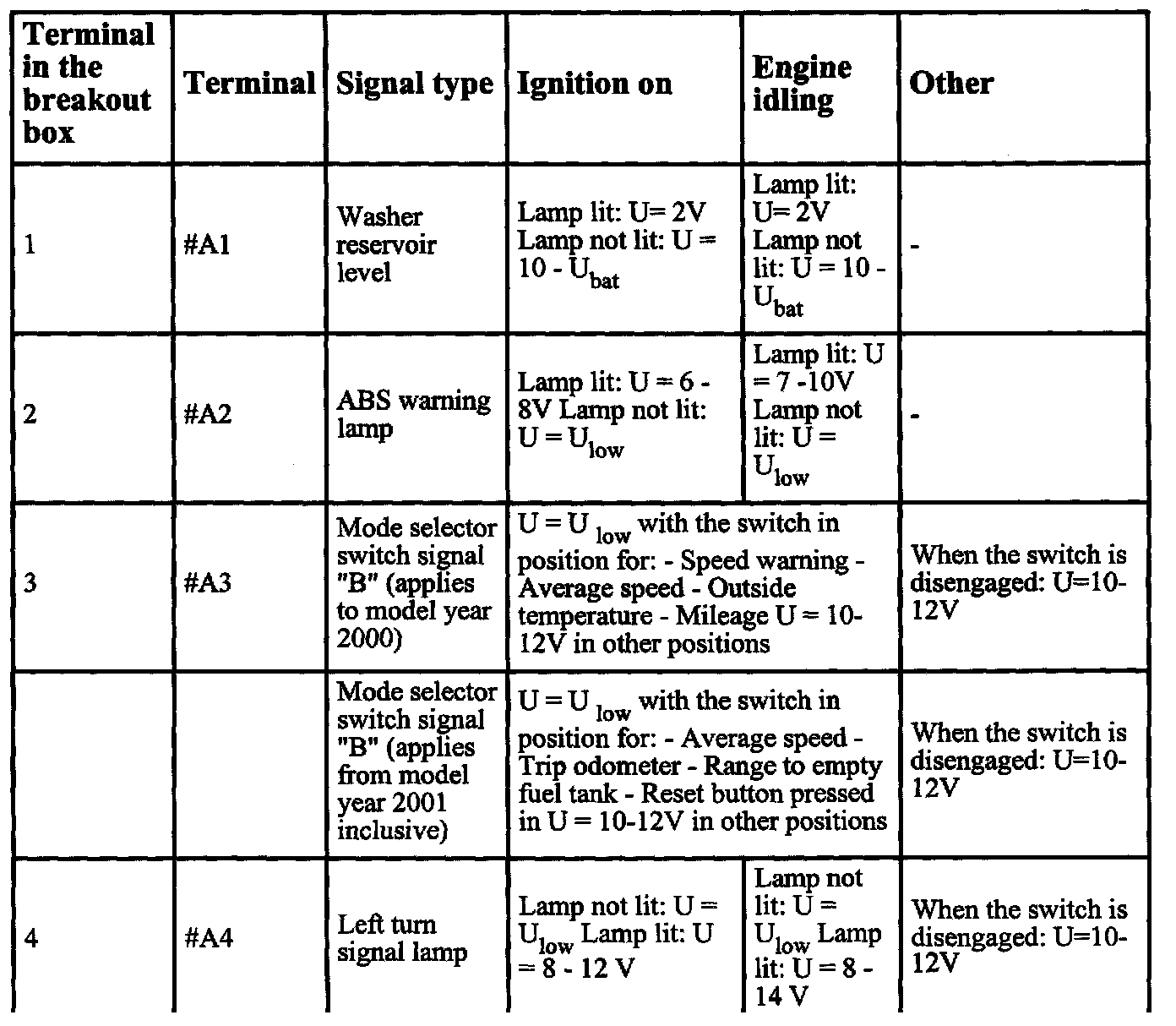

Terminals #A1 - #A3:

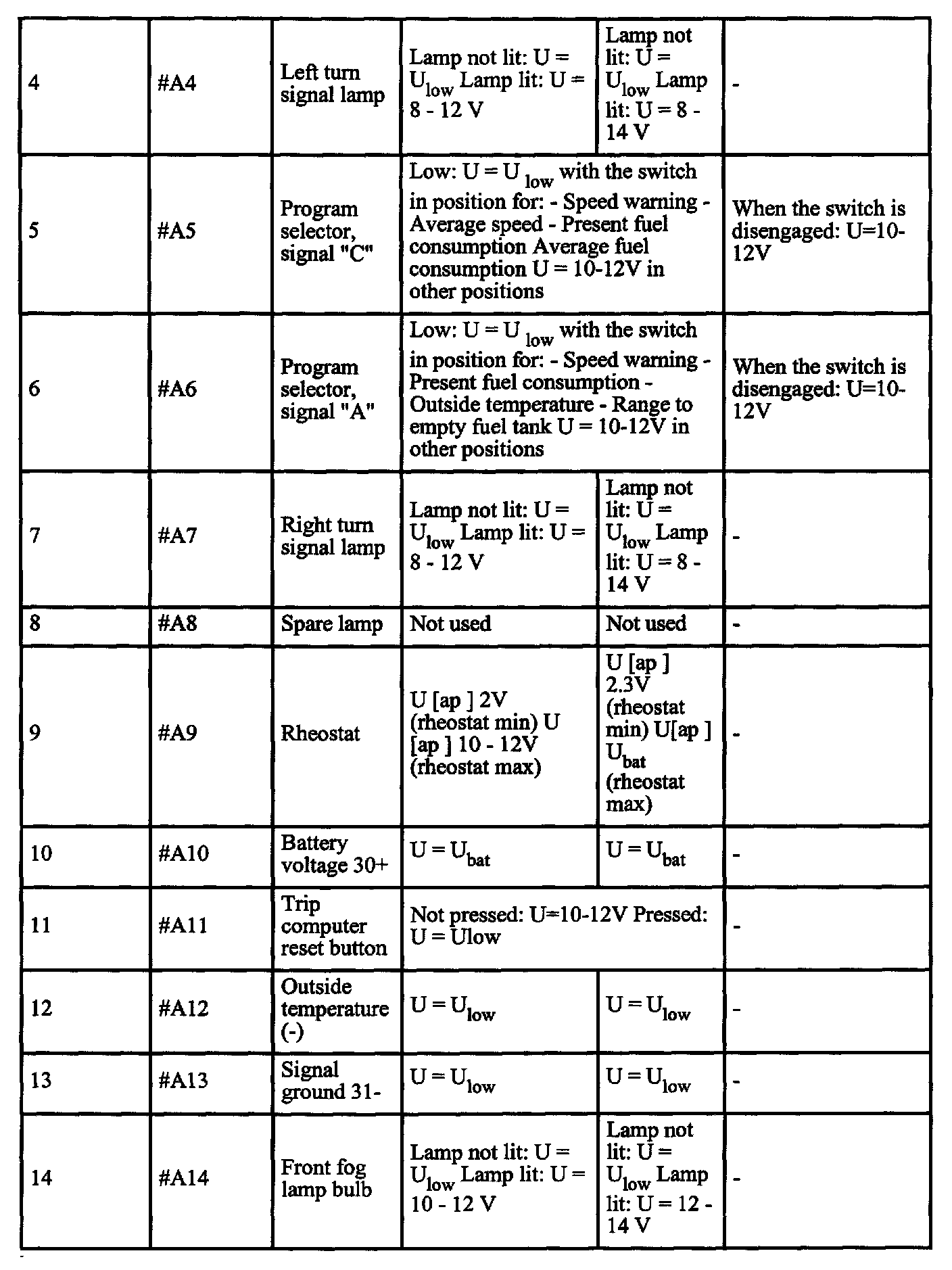

Terminals #A4 - #A14:

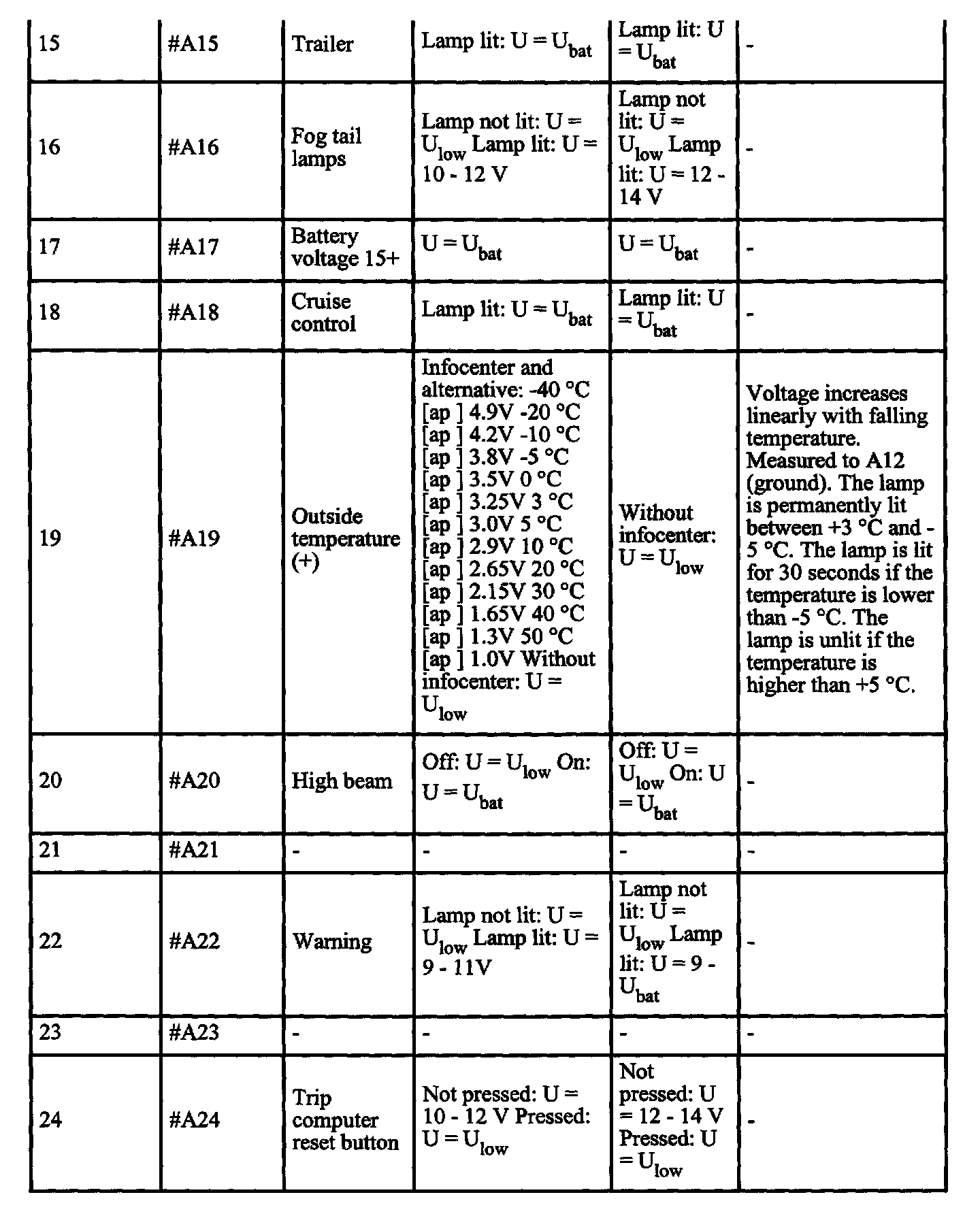

Terminals #A15 - #A24:

Signal specification, from model year 2000 inclusive

Connector A, terminals # A1 - # A24
All values given below are between the respective terminal in column 1 and terminal # A13 (signal ground).If this is not the case it is indicated in parentheses.

NOTE: It is important to connect the breakout box and check ground terminals before reading off.

Terminals #A1 - #A4:

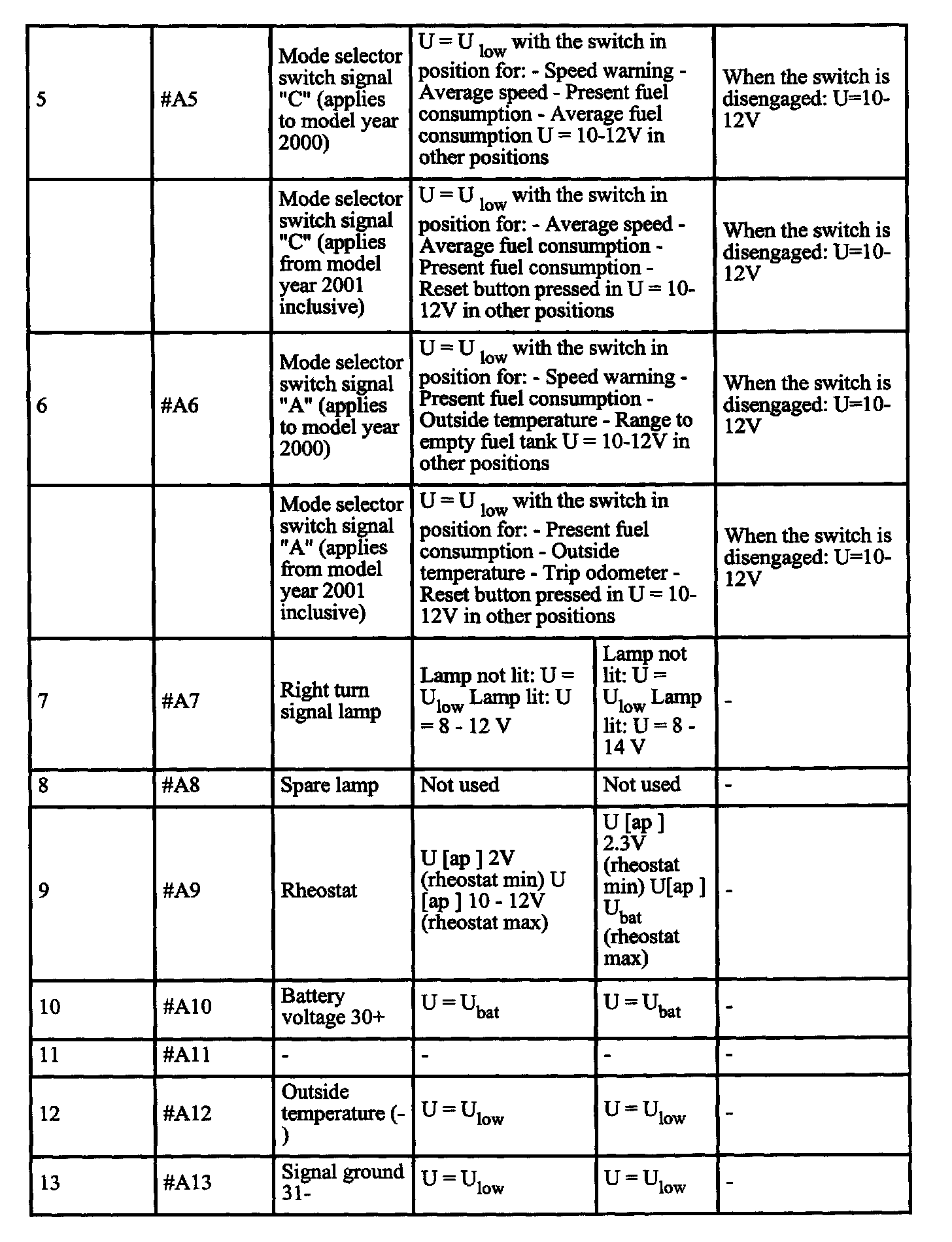

Terminals #A5 - #A13:

Terminals #A14 - #A24:
