Fog/Driving Lamp: Adjustments

Aligning the fog lamps

Adjustment

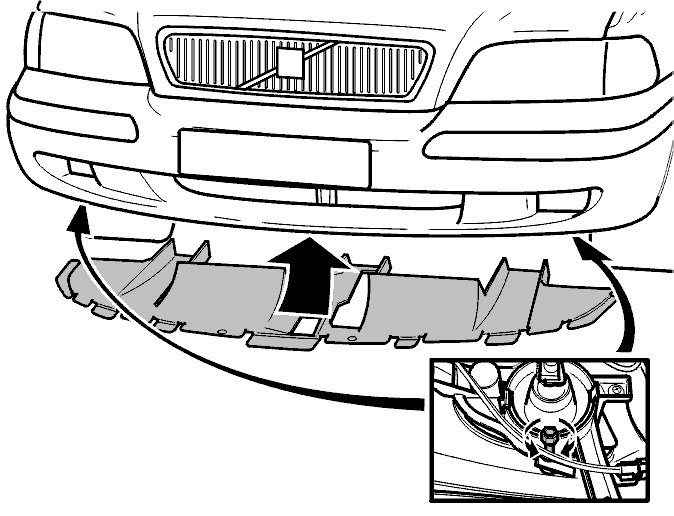

Remove the air baffle.
Adjust the lamp setting by turning the adjustment screw.

Note! Beam adjustment must be carried out in accordance with the relevant national statutory requirements.

Installation
Reinstall the air baffle.
