Electrical Diagrams

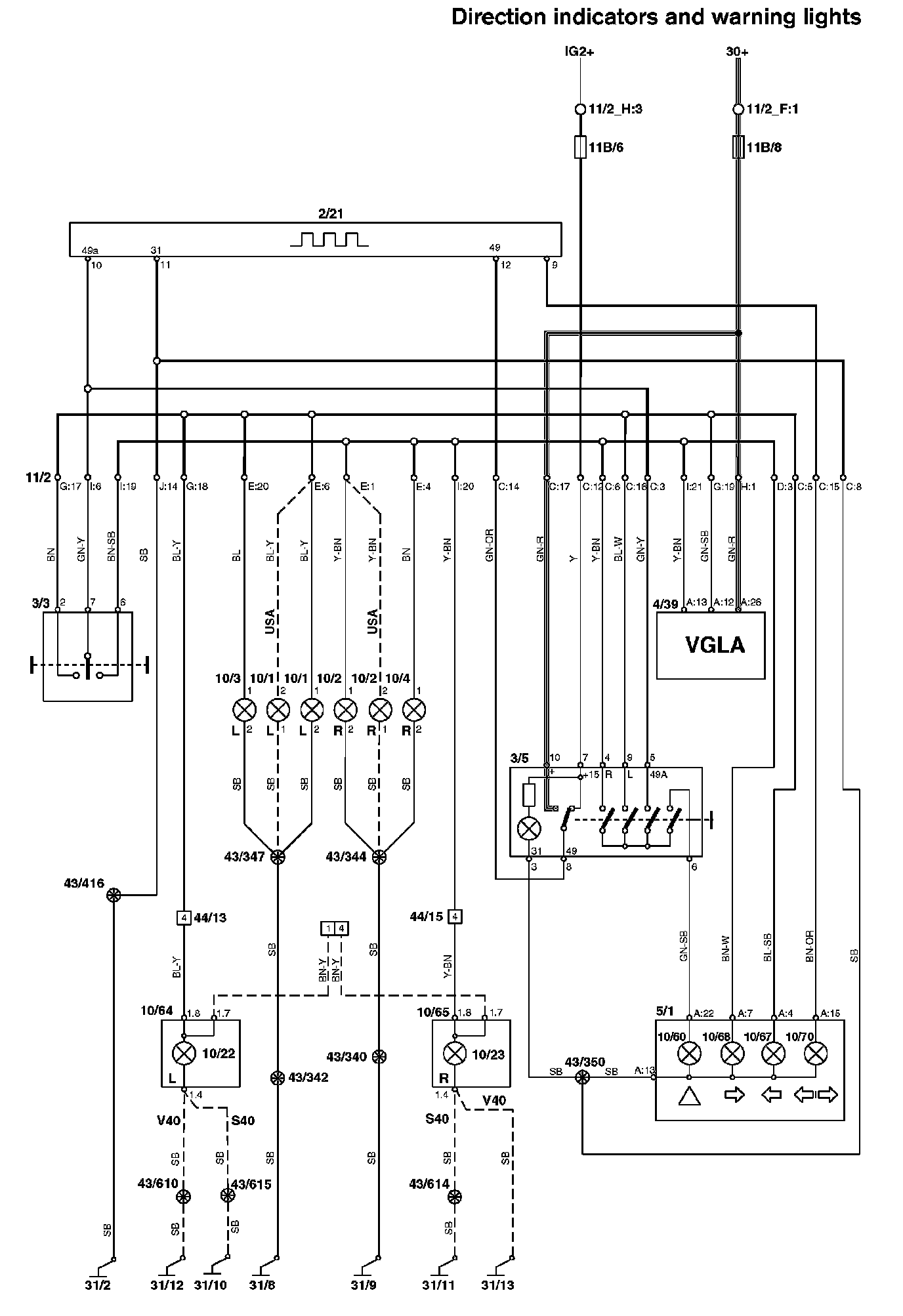

Direction Indicators And Warning Lights

Direction Indicators And Warning Lights:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
