Electrical Diagrams

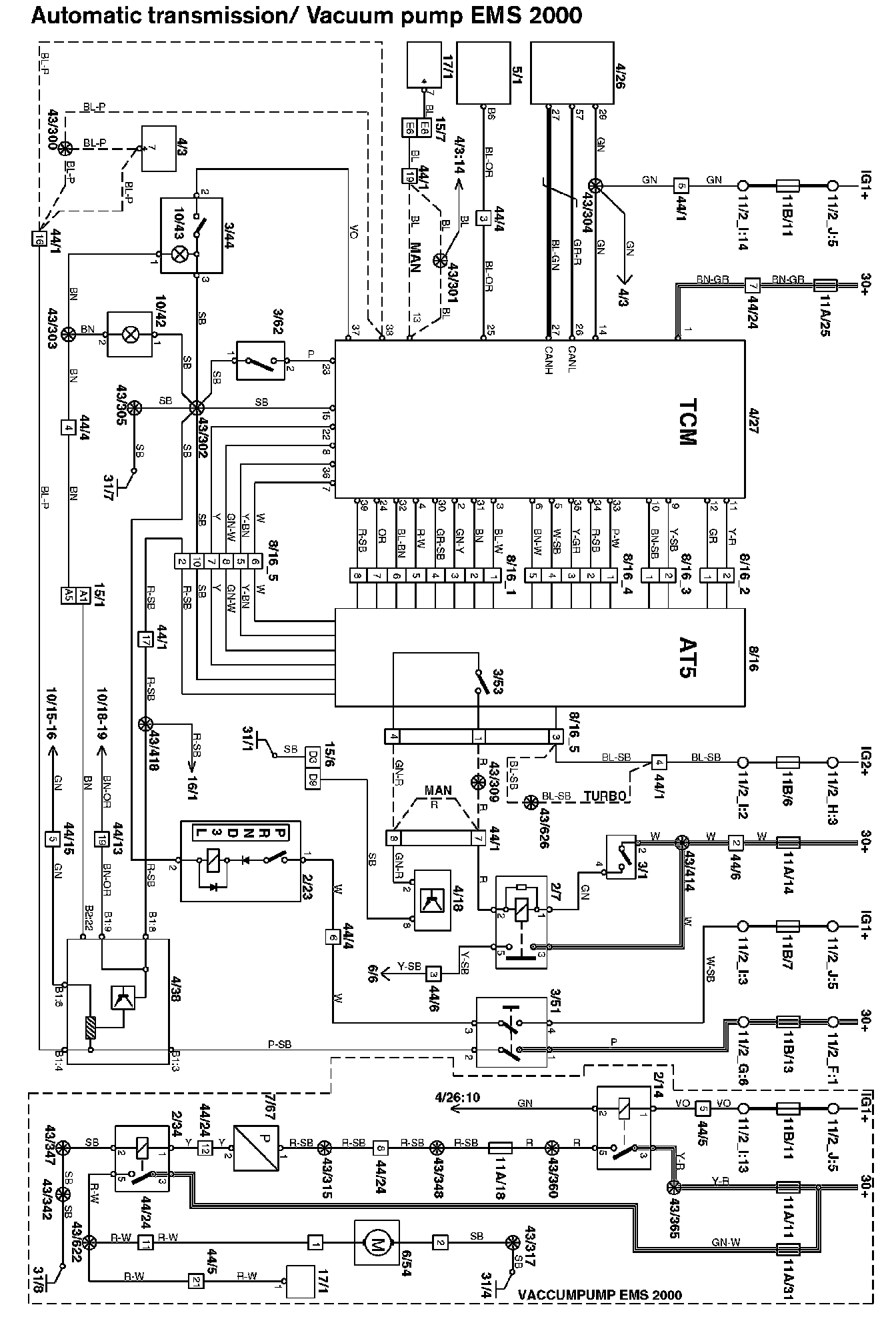

Automatic Transmission/Vacuum Pump EMS 2000

Automatic Transmission/Vacuum Pump EMS 2000:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
