Location of Components

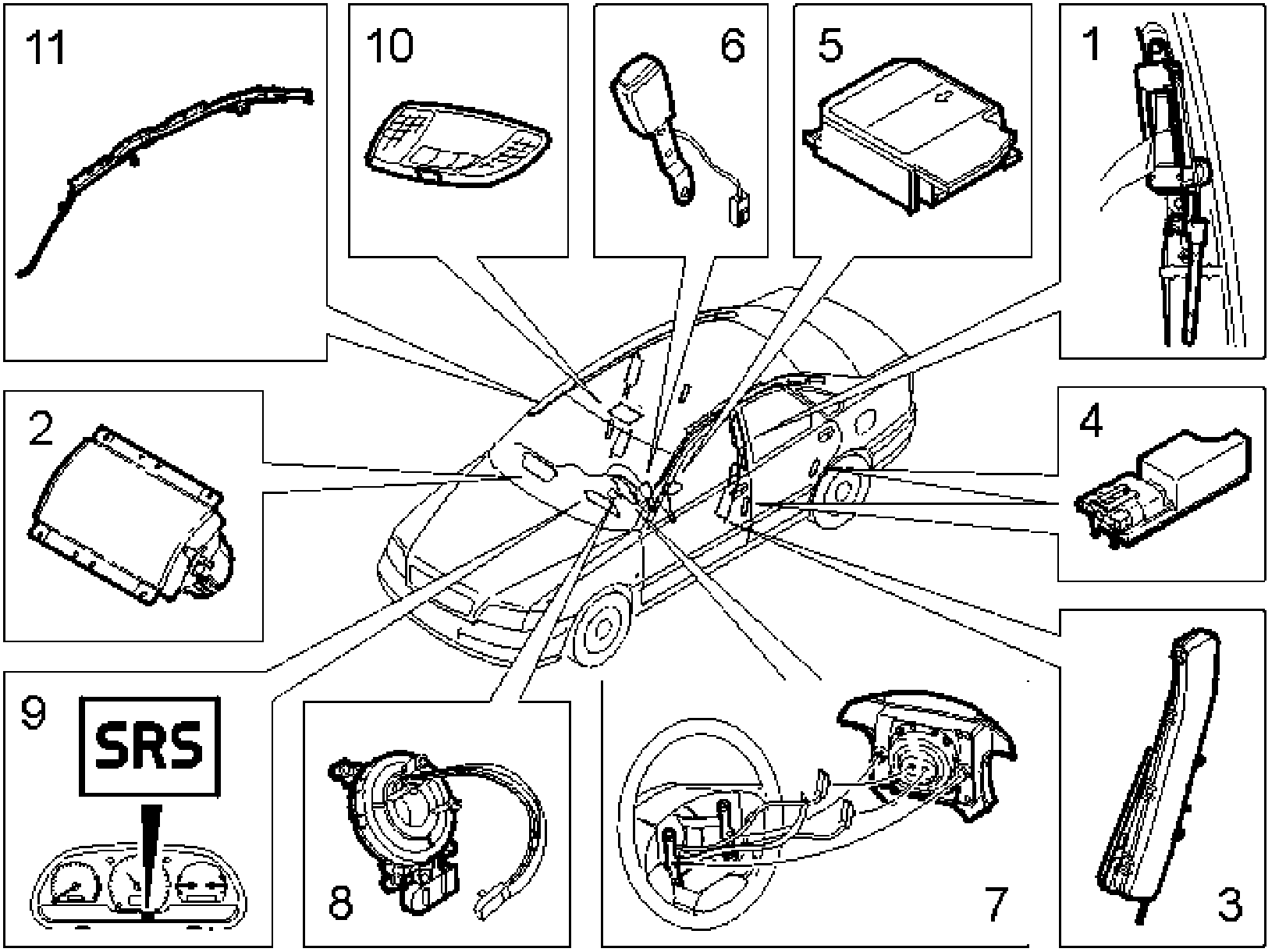

Location Of Components. Supplementary Restraint System (SRS)







1. Seat belt tensioner
2. Passenger air bag
3. Side impact protection (SIPS) bag
4. Side impact sensor
5. SRS control module
6. Seat belt buckle
7. Driver's air bag
8. Contact reel
9. SRS warning lamp
10. Seat belt reminder
11. Inflatable curtain
