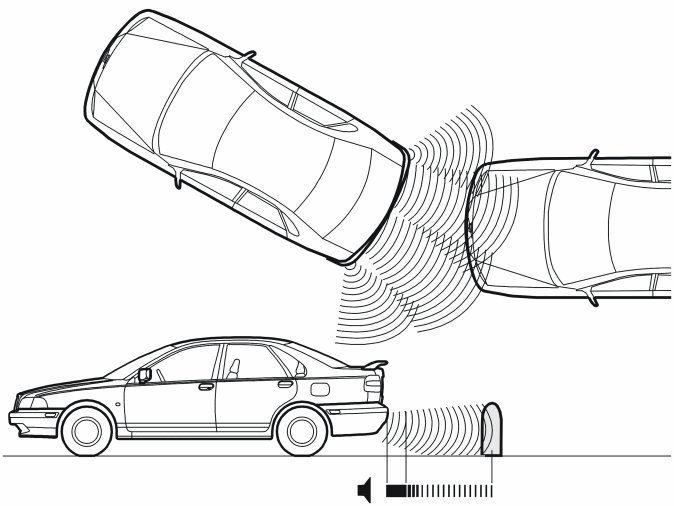

Reverse warning system
Cars equipped with SRS/SIPS (Airbag)
Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must be carried out by an authorized Volvo workshop.
Is the car equipped with SRS/SIPS?
Cars with SRS are most easily recognized by the letters SRS on the steering wheel pad. If the car also has an airbag on the passenger side, the letters SRS are embossed on the dashboard above the glove compartment. SIPS decals are located on the seat panels and the windscreen.
Do not damage the SRS wiring!
Do not trap, fray, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.
Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS information on carrying out such work. This is to prevent damage.
SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorized Volvo workshop.
SRS collision sensor control module
WARNING!
The ignition must be in position "0" and the key removed from the ignition if any connector in the SRS system is to be disassembled. Then wait at least five minutes. Then disconnect the battery negative lead before disassembling any of the connectors.
Reverse warning system
Illustration A applies to the S40
Illustration B applies to the V40
- Make a note of the anti-theft protection radio code if applicable
- Switch off the ignition
- Disconnect the battery negative lead
- Remove the 2 screws, the cargo compartment carpet and the rear wall panel
- Remove the clip (A) and turn the rear panels inwards on the left and right-hand sides. (For V40 with auxiliary loud speakers: See points 2, 3 and 4).
Applies to the S40
- Remove the entire left-hand panel in the cargo compartment.
Applies to V40 models with extra loud speakers:
- Angle the rear seat forwards. Fold the right-hand backrest down
- Remove the fixed section (A) on the right-hand backrest.
Applies to V40 models with extra loud speakers:
- Remove the parcel shelf
- Press together the clips. Pull off the cargo net from the reverse of the panel in the cargo compartment

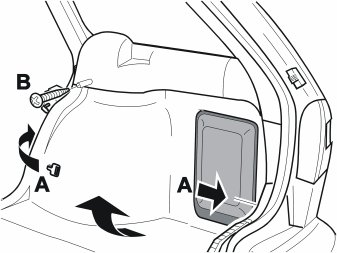

- Remove the clip (A). Remove the screw (B)
- Where applicable: Remove the mountings for the protective net
- Remove the cargo compartment panel from underneath. Use a twisting movement.
Applies to V40 models with extra loud speakers:

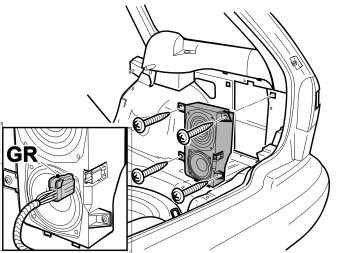

- Disconnect the grey (GR) connector (one or more)
- Remove the 4 screws
- Remove the extra loudspeaker.
- Remove the 3 mounting screws / clips for the splashguards
- Remove the screw (A)
- Press in the catch. Disconnect the connector for the side marker lamp in the rear bumper
- The procedure is the same for both the left and right hand sides.

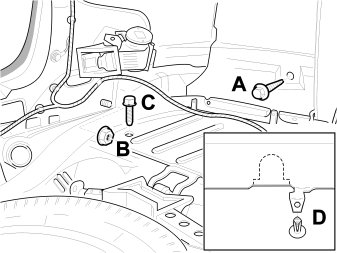

- Remove the nuts (A and B). Remove the screw (C)
- Carry out procedures A, B and C on both the right and left-hand sides
- Up to chassis number 600000: Remove the clip (D) from the underneath of the bumper
- Apply tape under the tail lamps to protect against damage to the paint work when removing the rear bumper
- Remove the rear bumper.
Applies only to V40 models

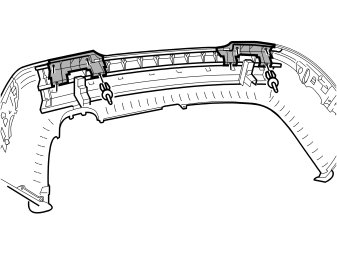

- Remove the 8 clips and the plastic supports on the right and left-hand sides.
Installing the sensors
Note! To prevent damage to the bumper cover when installing the sensors, the bumper cover must be placed on a foam underlay at least 3 cm thick.
Applies to cars up to chassis number 600 000:
- Remove the clips (A) from on top
- Remove the clips (B) from underneath
- Press in the catches. Remove the bracket for the bumper. (Some force is required to remove the bracket).

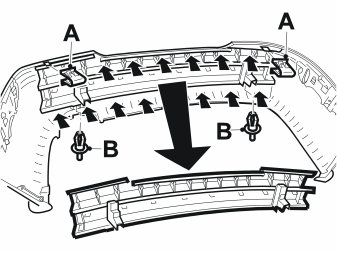

- Press in the catches. Remove the bracket (A)
- Start at one end. (Some force is required to remove the bracket.)
- Remove the two clips (B)
- Press in the catches. Remove the reinforcement (C). Start at one end.
Illustration A applies to cars with chassis numbers up to 600 000
Illustration B applies to cars with chassis numbers from 600 000
- Remove the shock absorbent rubber liner from the bracket

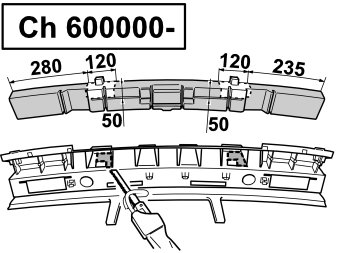

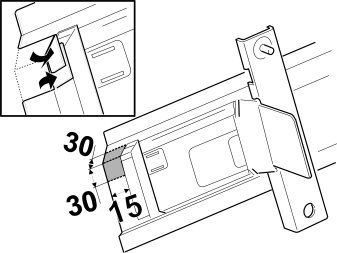

- Mark for holes in the bracket and liner as illustrated. Saw out holes using a pneumatic saw
- Reinstall the rubber liner in the bracket (use tape on the outside).
Illustration A applies to cars with chassis numbers up to 600 000
Illustration B applies to cars with chassis numbers from 600 000
- Find the centre of the bumper
- Apply masking tape to the surface surrounding the hole marks on the outside of the bumper
- Mark for four holes as illustrated
- Drill four 8.5 mm (21/64") diameter holes.
Illustration A applies to cars with chassis numbers up to 600 000
Illustration B applies to cars with chassis numbers from 600 000

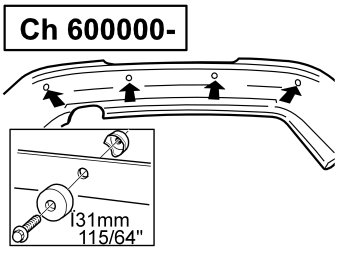

- Apply the special tool (Volvo P/N 9814069). Drill four 31 mm (1/4") diameter holes. Drill from the outside. Do not damage the paintwork on the bumper.
°°
NOTE! The temperature of the bumper must be at least 15 C (60 F)
- Clean the inside of the bumper at the sensor holder. First use sandpaper and then cleaner H (Volvo P/N 1161436)
- Clean the inside using cleaning agent (P/N 9192678)
- Treat the inside of the bumper using Activator (P/N 8637076) at the sensor holder. (Leave at least 10 minutes to dry).
°°

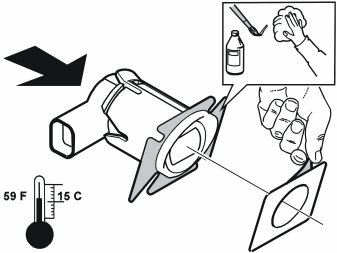

NOTE! The temperature of the sensors must be at least 15C (60 F)
- Clean the holders for the sensors. Use cleaner H (Volvo P/N 1161436)
- (Use cleaning agent (P/N 9192678). Treat the mounting surfaces of the sensors using Activator (P/N 8637076). (Leave at least 10 minutes to dry.)

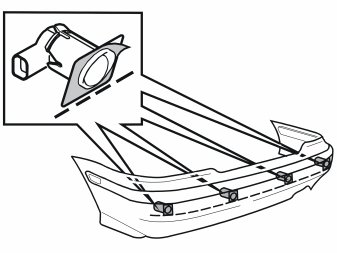

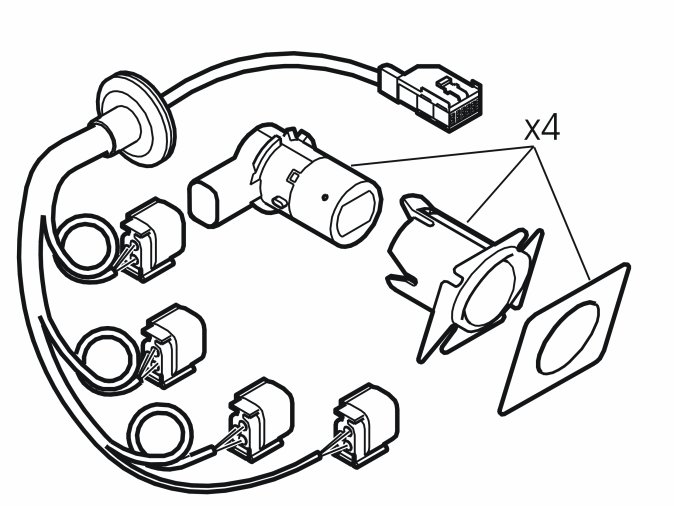

- Install the sensors in their holders
- Remove the masking tape and apply protective film to the sensor holders.
- Remove the masking tape. Install the sensor holders on the bumper. The thin section must be pointing upwards
- Ensure that the sensor holders are mounted straight.
Note! The function may be impaired if the sensors are not positioned correctly.
Applies to cars up to chassis number 600 000
Note! Do not damage the paintwork on the bumper.
Press the bracket for the bumper into place. Ensure that all catches engage
- Install the clips (A) and (B).
Applies to cars from chassis number 600 000
- Cut out three lines in the plate bracket. Bend in the bracket at these three points. (Use a pneumatic saw)
- Spray or paint rust solvent on the bracket.
Note! Do not damage the paintwork on the bumper.

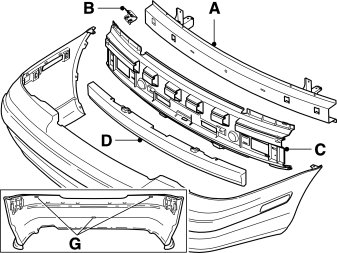

Check that the bumper (D) is still in the reinforcement (C)
- Install the reinforcement (C) in the bumper cover. (Note the positions of the three guide lugs (G).) Start at the ends and work in towards the centre
- Install the clip (B)
- Install the bracket (A) in the reinforcement for the bumper. Start pressing in the ends and work in towards the centre
- Ensure that all the guide lugs are correctly aligned.

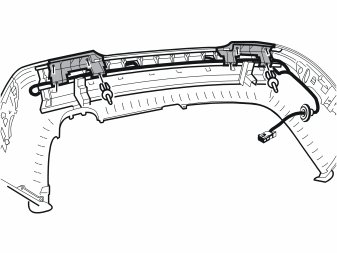

- Connect the sensor connectors
- Secure the cable harnesses using tape or tie straps.
Applies only to V40 models
- Install the plastic supports and the 8 clips on the right and left-hand sides.
- Mark out and drill one 8.5 mm (21/64") diameter hole
- Apply the special tool (Volvo P/N 9814069). Drill one 31 mm diameter hole
- Spray the inside of the holes using rust solvent.
- Clean the sensors and holders using cleaning agent (P/N 9192678-2)
- Apply a thin layer of primer (P/N 8637076-4) to the sensors and holders.
Note! The primer must dry for at least 10 minutes before it can be painted.
- Spray the sensor holders and the sensors. Use the same colour code as the car. Use Volvo recommended paint. Only paint the parts that will be visible after installation.
Note! Apply a maximum of two layers of paint. Too many layers of paint may have a negative impact on the function of the sensors. However, the sensors must be painted for optimal functionality.
- Remove the protective film from the bumper when the paint has dried.
- Check that the tape under the tail lamps is intact
- Route the cable harness for the sensors to the rear wing liner. Install the rubber grommet. Ensure that the rubber grommet forms a seal
- Reinstall the bumper.

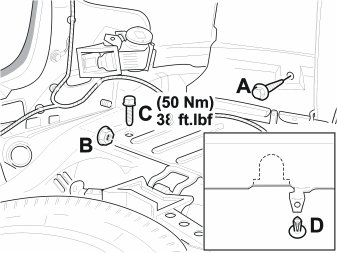

- Install the screw (C) and nuts (A and B). Hand tighten
- Tighten screw (C). Tighten to 50 Nm (37 lbf. ft). Tighten the nuts (A and B). Tighten to 5 Nm (4 lbf. ft). Tighten on both the left and right hand sides.
Applies to cars up to chassis number 600 000
- Install the clip (D) on the underneath of the bumper.
- Connect the connector for the side marker lamp
- Install the screw (A)
- Reinstall the 3 mounting screws / clips for the splashguards
- The procedure is the same for both the left and right hand sides.
Illustration A applies to the S40
Illustration B applies to the V40
- Connect the 12 and 16-pin connectors to the control module
- Remove the backing and apply the double-sided adhesive tape to the control module
- Remove the backing tape and install the control module as illustrated
- Secure the control module using a little force.
Applies only to S40 models
- Route the 2-pin connector along the existing cable harness to the left rear loudspeaker
- Secure one clip on the buzzer. Secure the clip on the edge of the left-hand loudspeaker panel
- Connect the connector.
Applies only to V40 models
- Remove the loudspeaker grille and the screw (A)
- Remove the lighting for the cargo compartment. Remove the wiring
- Remove the screw (B). Carefully remove the panel
- Route the 2-pin connector along the existing cable harness to the left rear loudspeaker
- Connect the connector to the buzzer. Secure the buzzer to the existing cable harness using a tie-strap.
Shut-off switch for the reverse warning sensor (Used when reversing with a trailer for example.):
Illustration A applies to the S40
- Position the switch (1) beside the buzzer under the parcel shelf. Mark for drilling.
Illustration B applies to the V40
- Position the switch (1) in the protective cover for the left tail lamp. Mark for drilling.
Applies to both

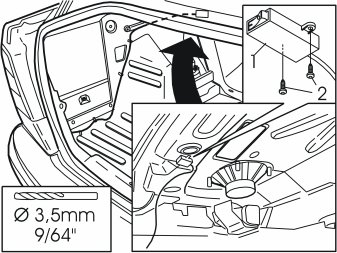

- Drill two 3.5 mm (9/64") diameter holes in the doubled plate
- Install the switch with two screws from the kit

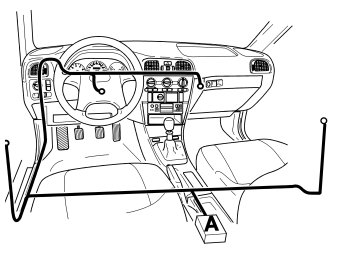

- Route the cable back towards the control module for the reverse warning system.
Reversing lamp:
Illustration A applies to the S40
Illustration B applies to the V40

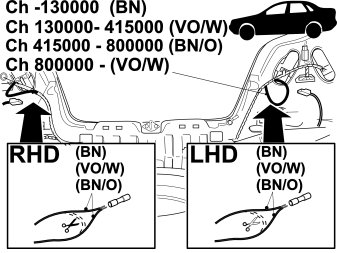

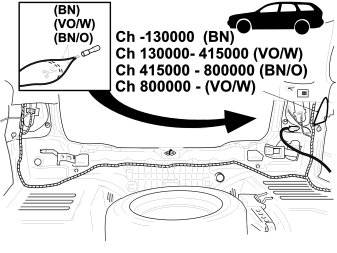

- Locate the ring cable for the reversing lamps;
- cars up to chassis number 130 000: Brown (BN) cable
- cars with chassis number 130 000 - 415 000: Violet/White (VO/W) cable
- cars with chassis number 415 000 - 800 000: Brown/Orange (BN/O) cable
- cars from chassis number 800 000: Violet/White (VO/W) cable.
- Cut off the cable and install the cable terminal.

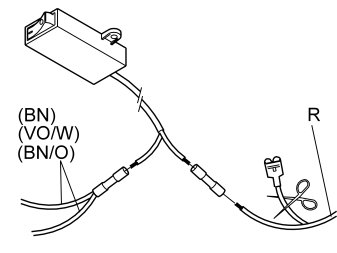

- Cut off the cable terminal from the red (R) cable
- Install the cable terminals from the switch. See the illustration.
Ground:
Illustration A applies to the S40
Illustration B applies to the V40

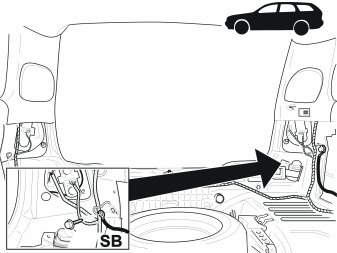

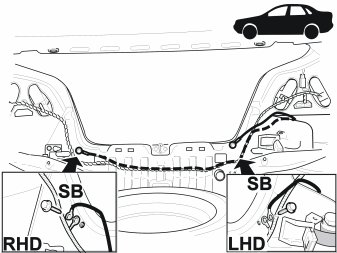

- Connect the cable terminal to the black (SB) cable
- Connect the black (SB) cable to ground on the tail lamp
- Secure all cables using tie straps.
- Remove the tape and clean the rear bumper
- Turn the ignition to position II
- Ensure that no one is inside the car
- Connect the battery negative lead
- Check that the reverse warning sensors are working (activates only when there is an object in the way behind the vehicle when reversing)
- Check the sound signal from the buzzer. The sound signal can be adjusted by turning the outer cover on the buzzer
- Where applicable: re-enter the radio code
- Set the car clock to the correct time
- Reinstall the remaining components.
