Home >> Volvo >> 2004 >> S40 L5-2.4L VIN 38 B5244S4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/111 >> L.E

L.E

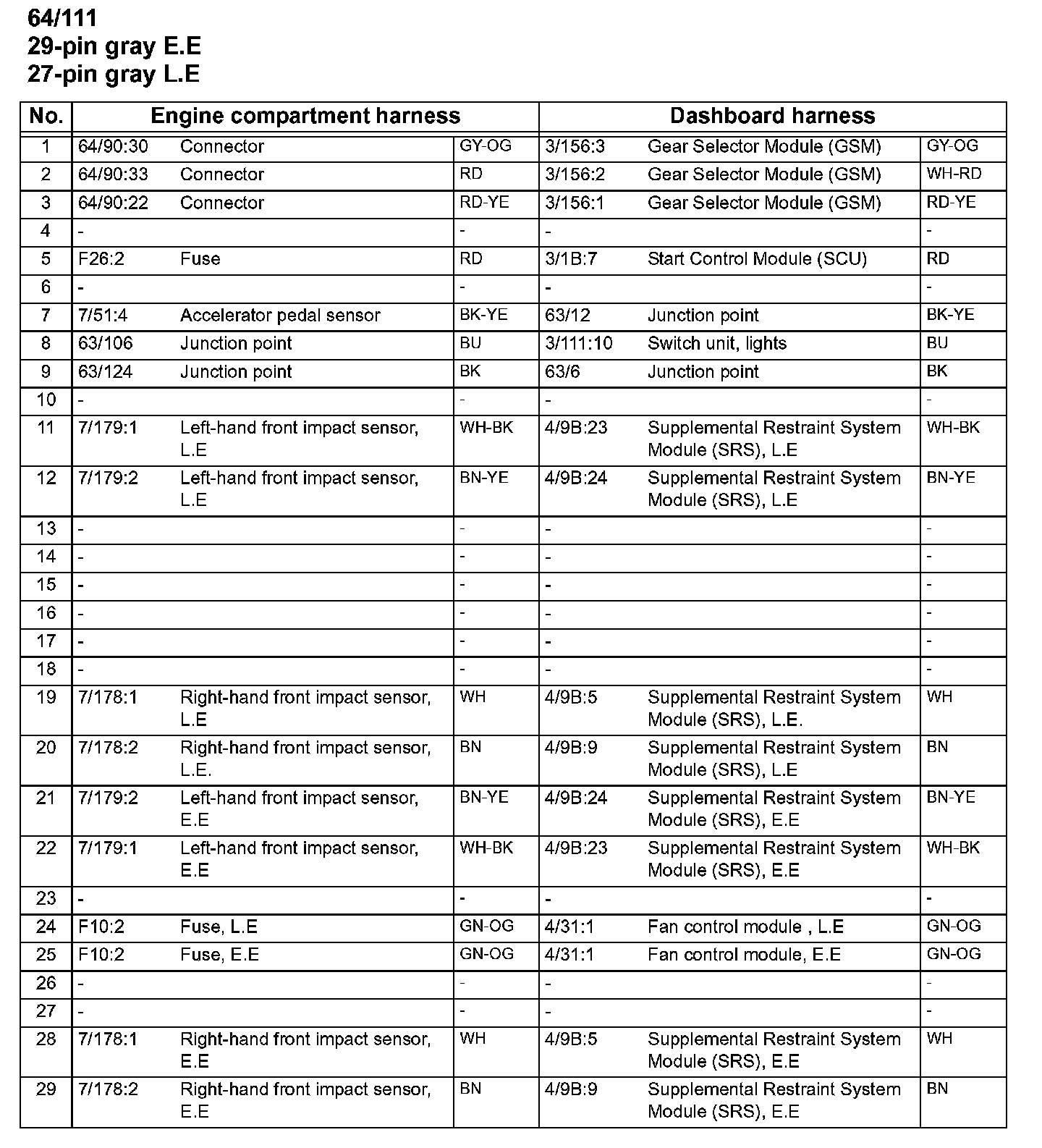

64/111:

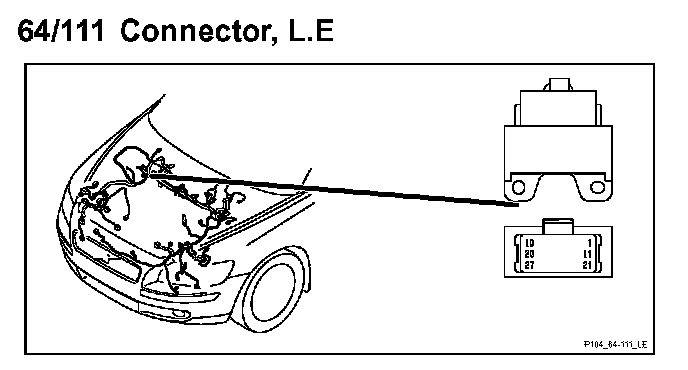

64/111 Connector, L.E:
