Home >> Volvo >> 2004 >> S40 L5-2.4L VIN 38 B5244S4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/48

64/48

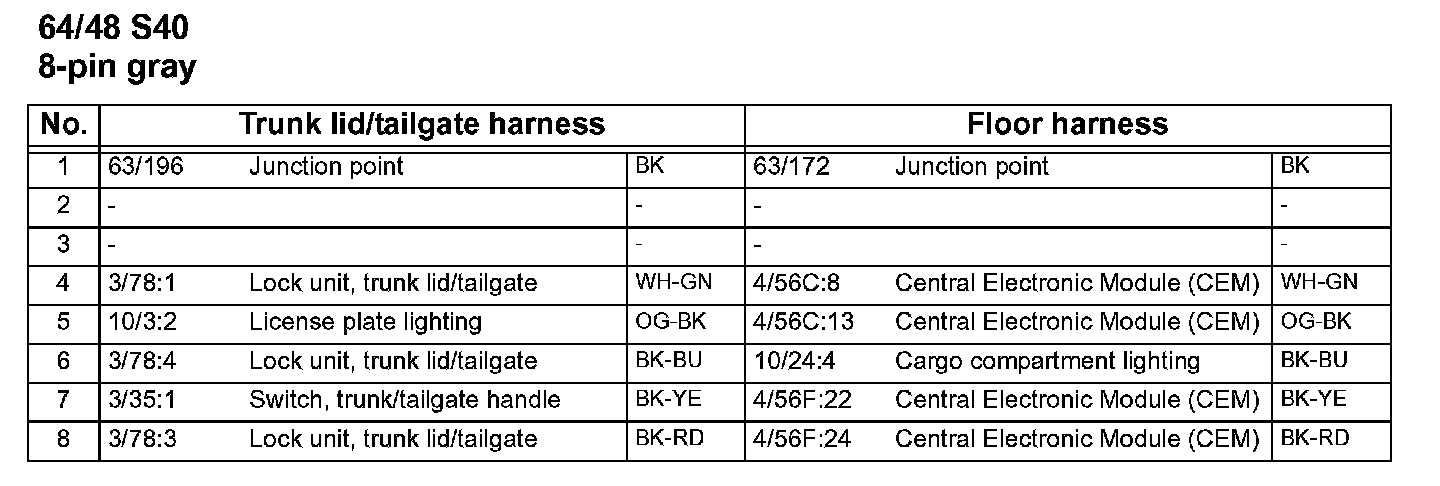

64/48 S40:



64/48 Connector S40:
