System Diagram

Engine Management System, 5-Cyl

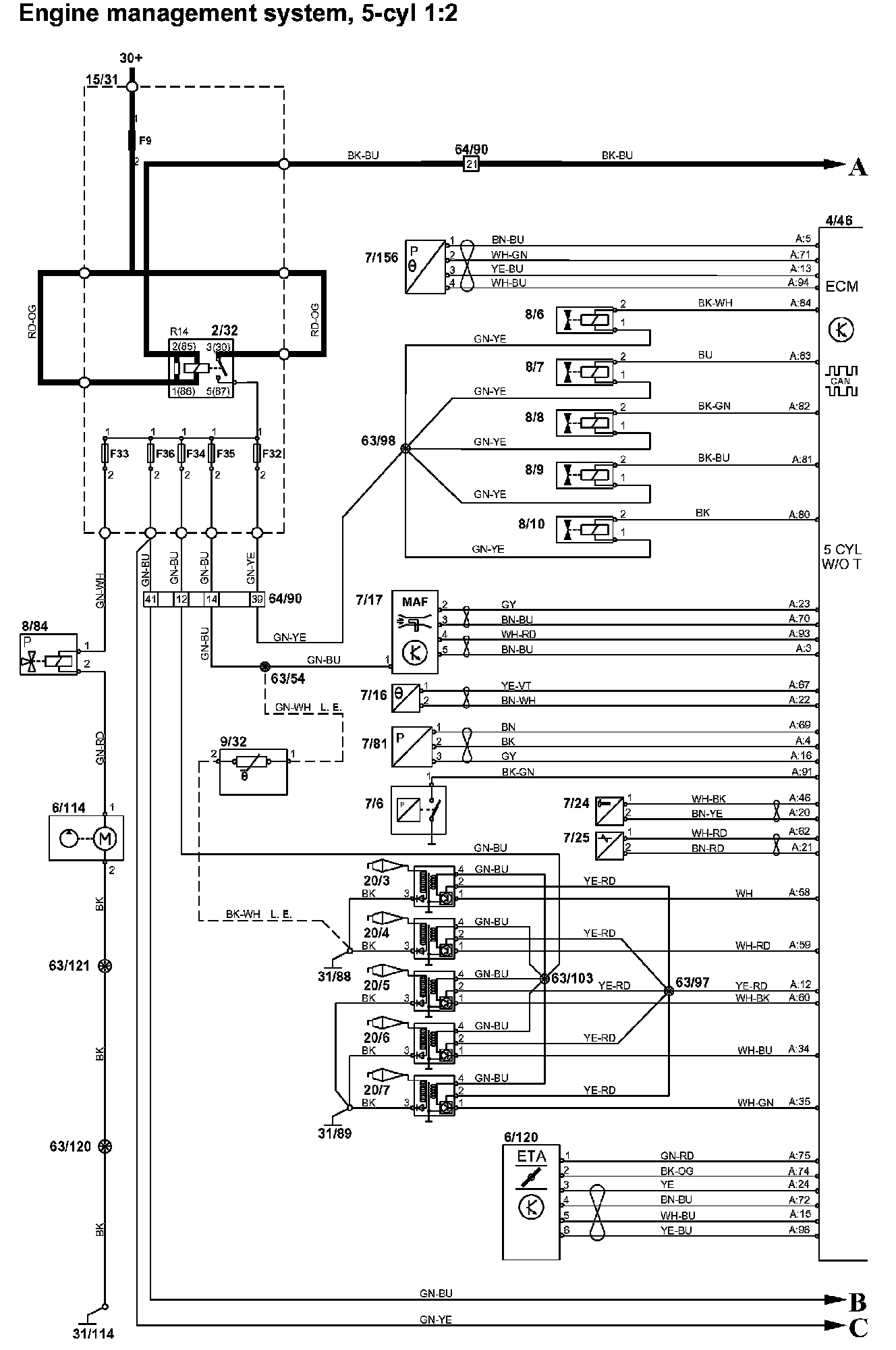

Engine Management System, 5-cyl, Part 1:

Engine Management System, 5-cyl, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
