Electrical Diagrams

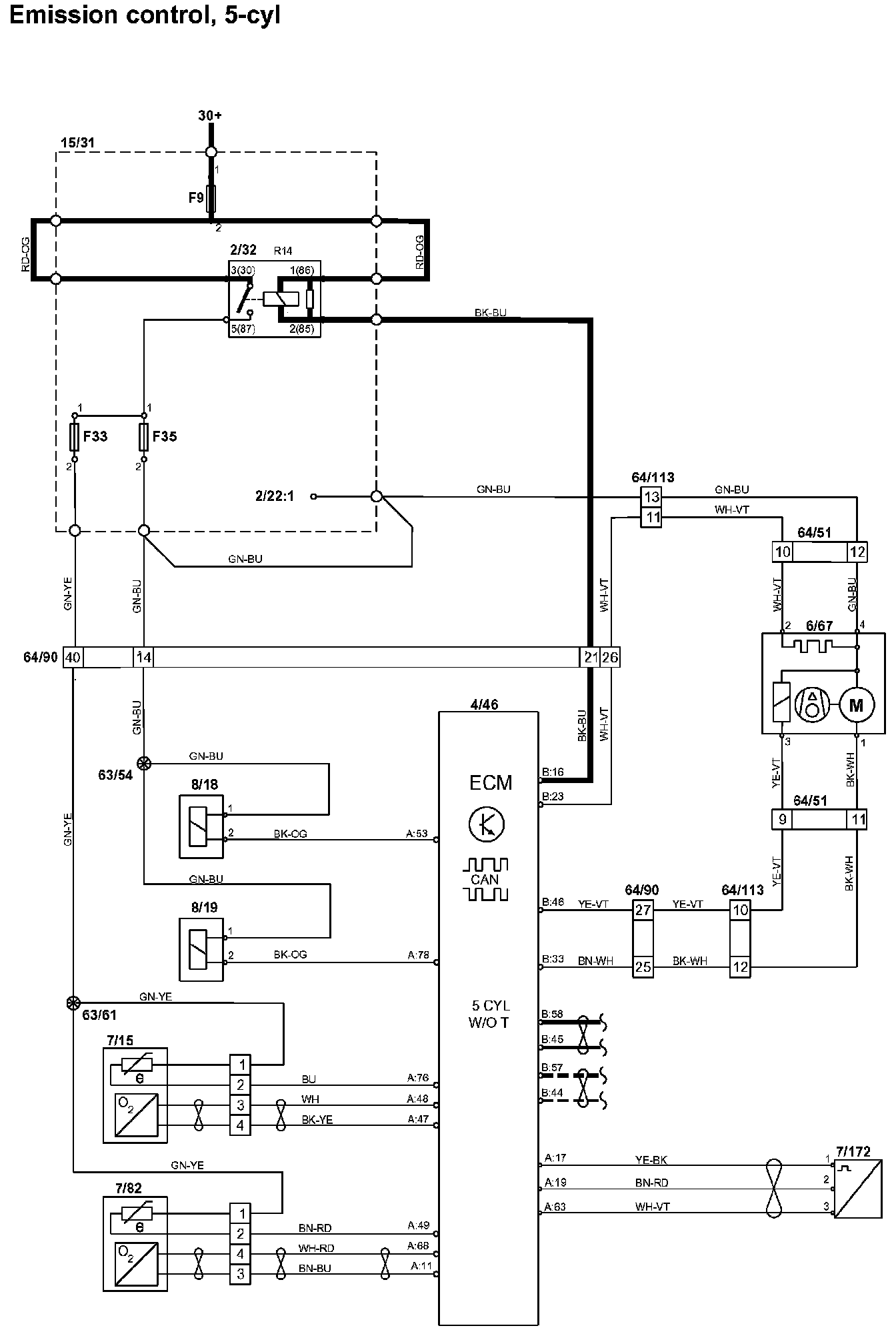

Emission Control, 5-Cyl

Emission Control, 5-cyl:

Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
