Electrical Diagrams



Supplemental Restraint System (SRS)

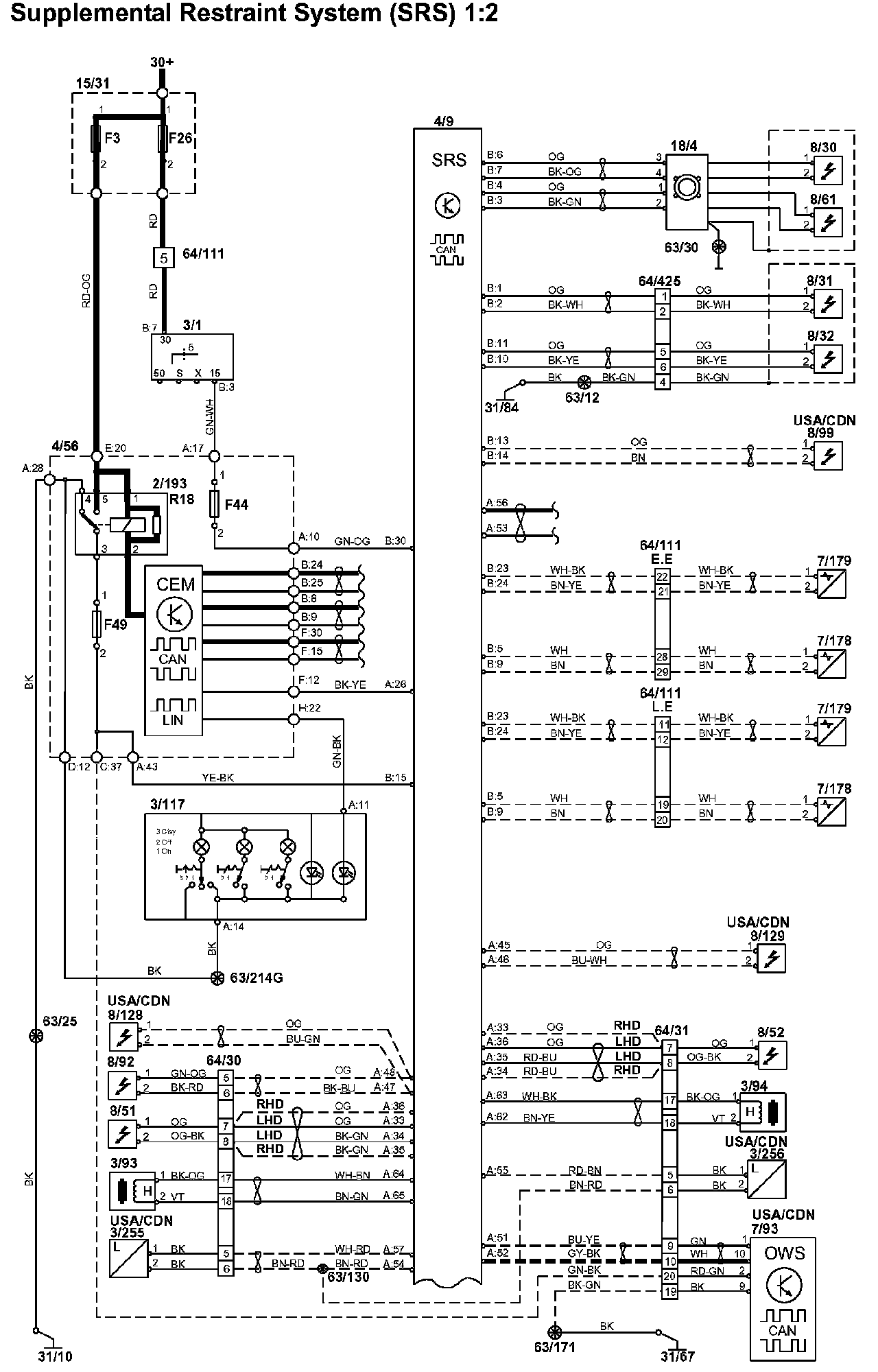

Supplemental Restraint System (SRS), Part 1:

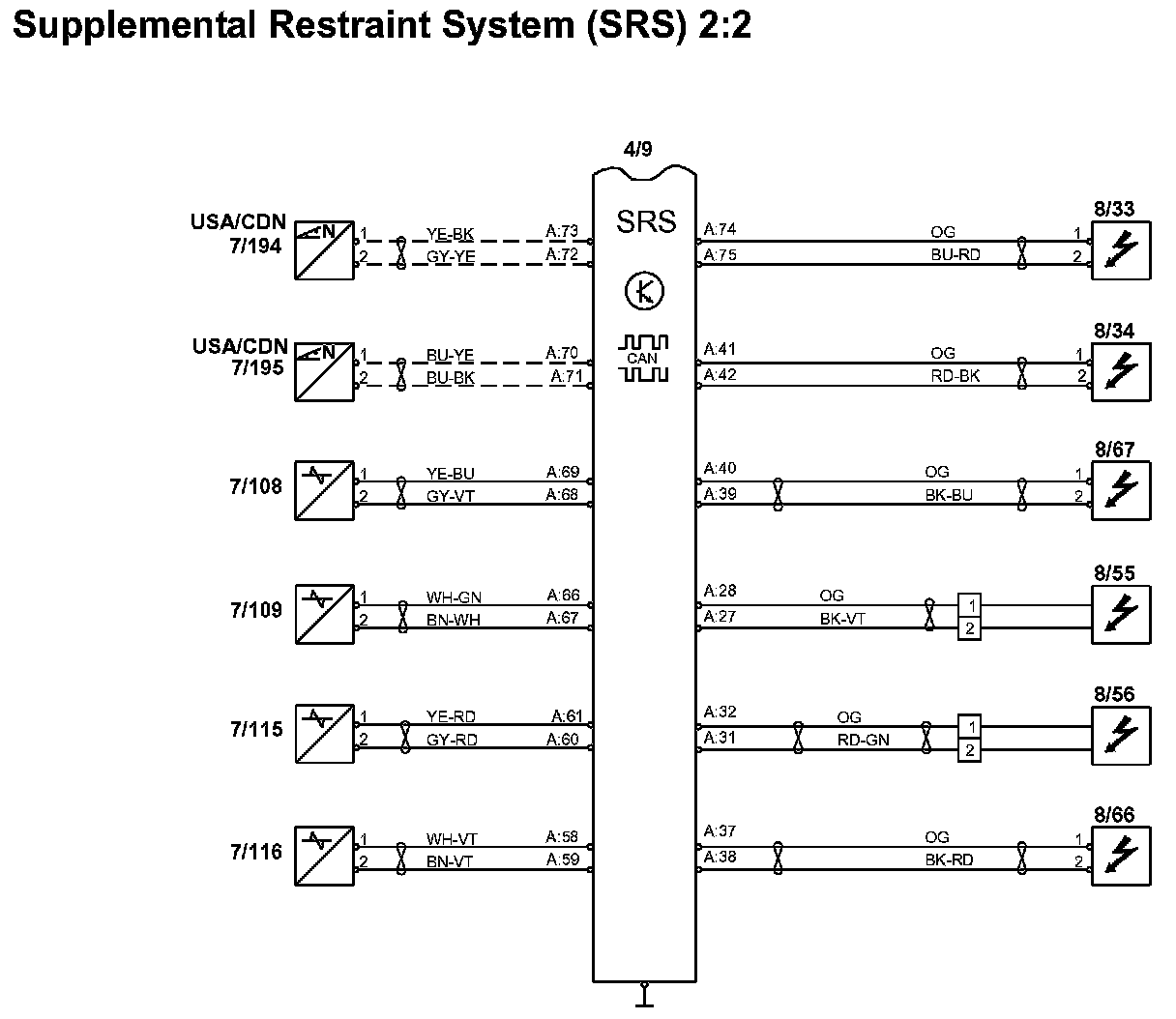

Supplemental Restraint System (SRS), Part 2:






Diagram Legend: Diagram Legend

Wire Color Code Identification And Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
