Home >> Volvo >> 2004 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/107

54/107

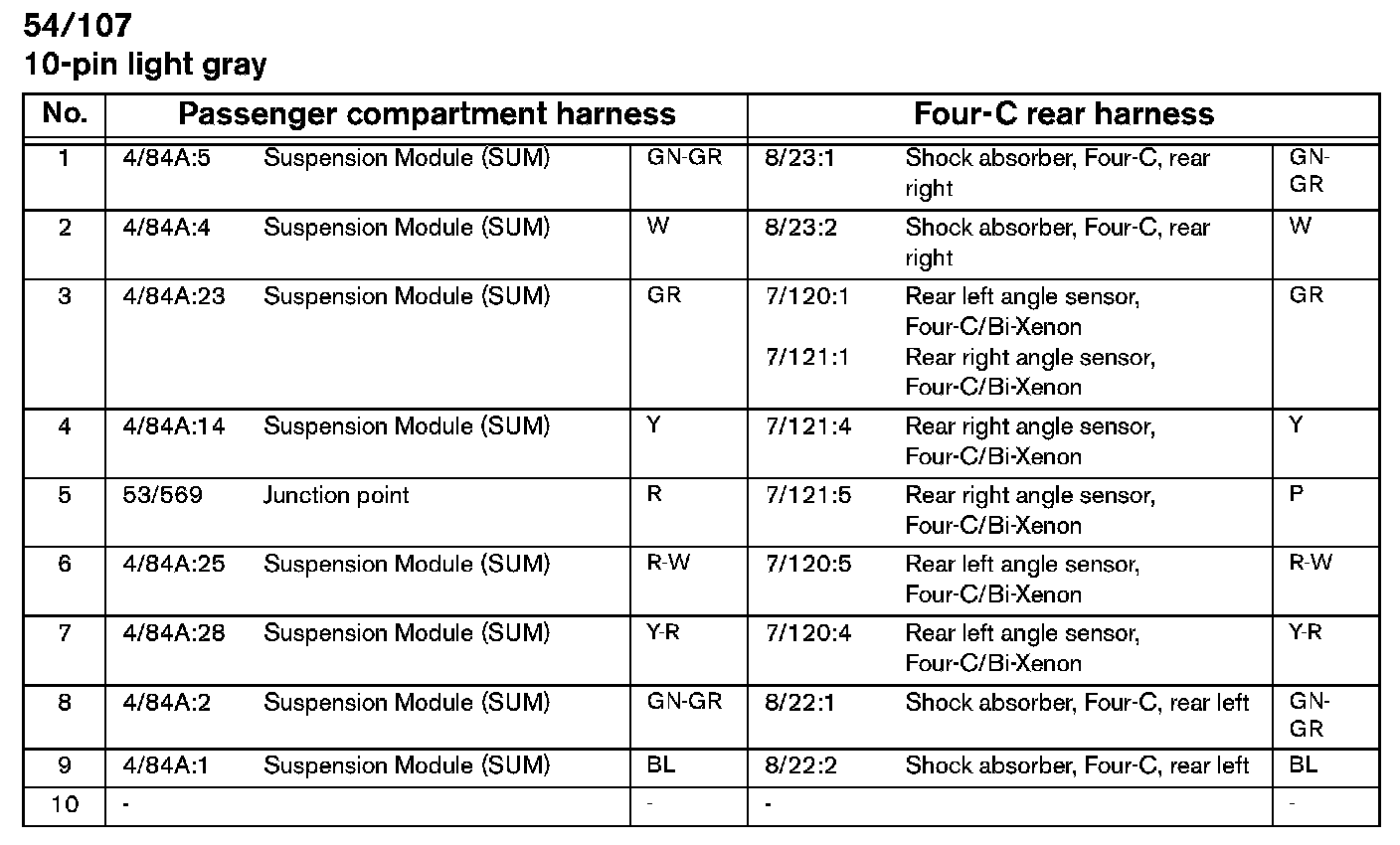

Connectors 54/107:



54/107 Connector:
