Home >> Volvo >> 2004 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/24

54/24

Connectors 54/24:

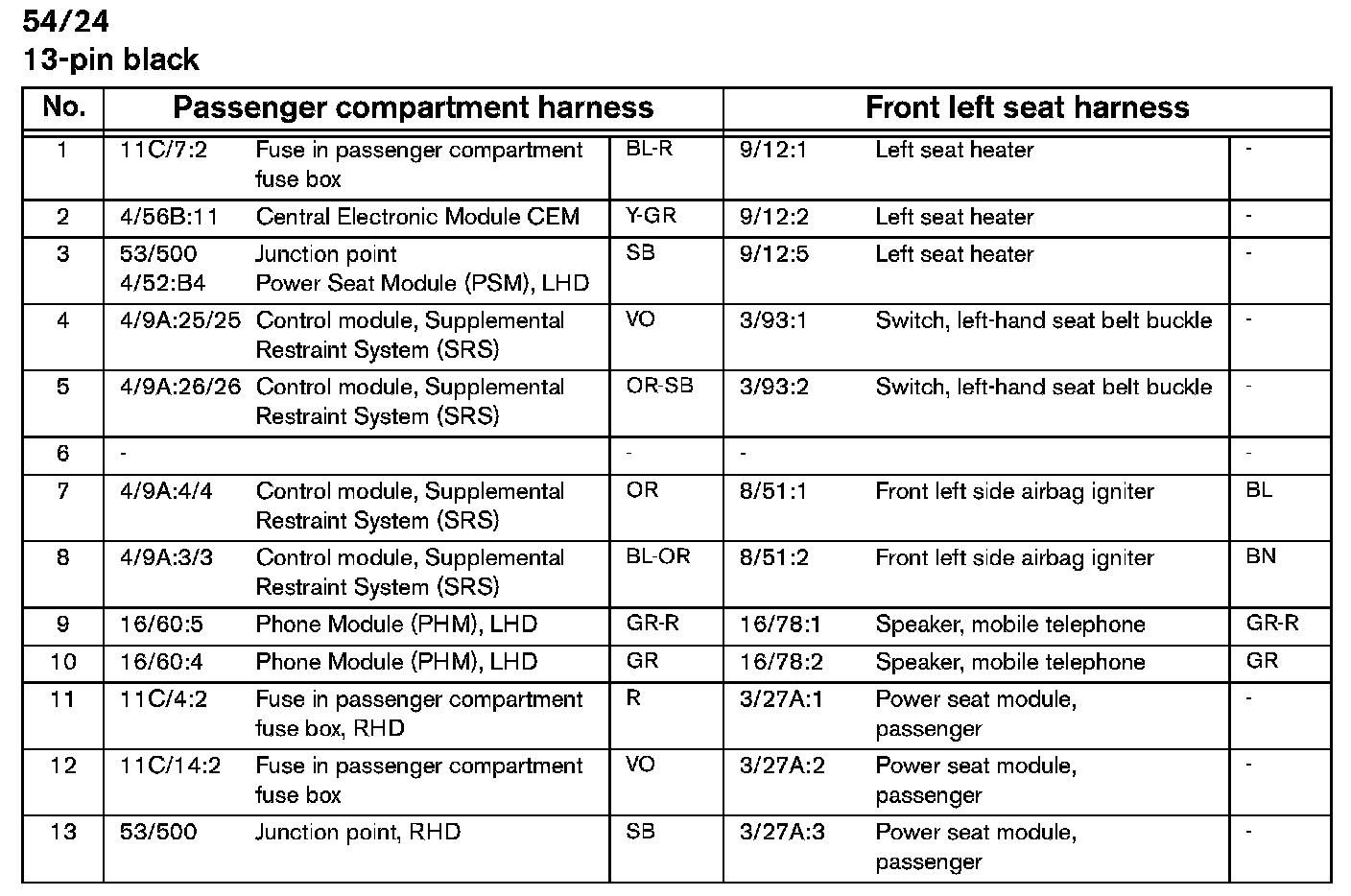

54/24 Connector:
