Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2004 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3LF

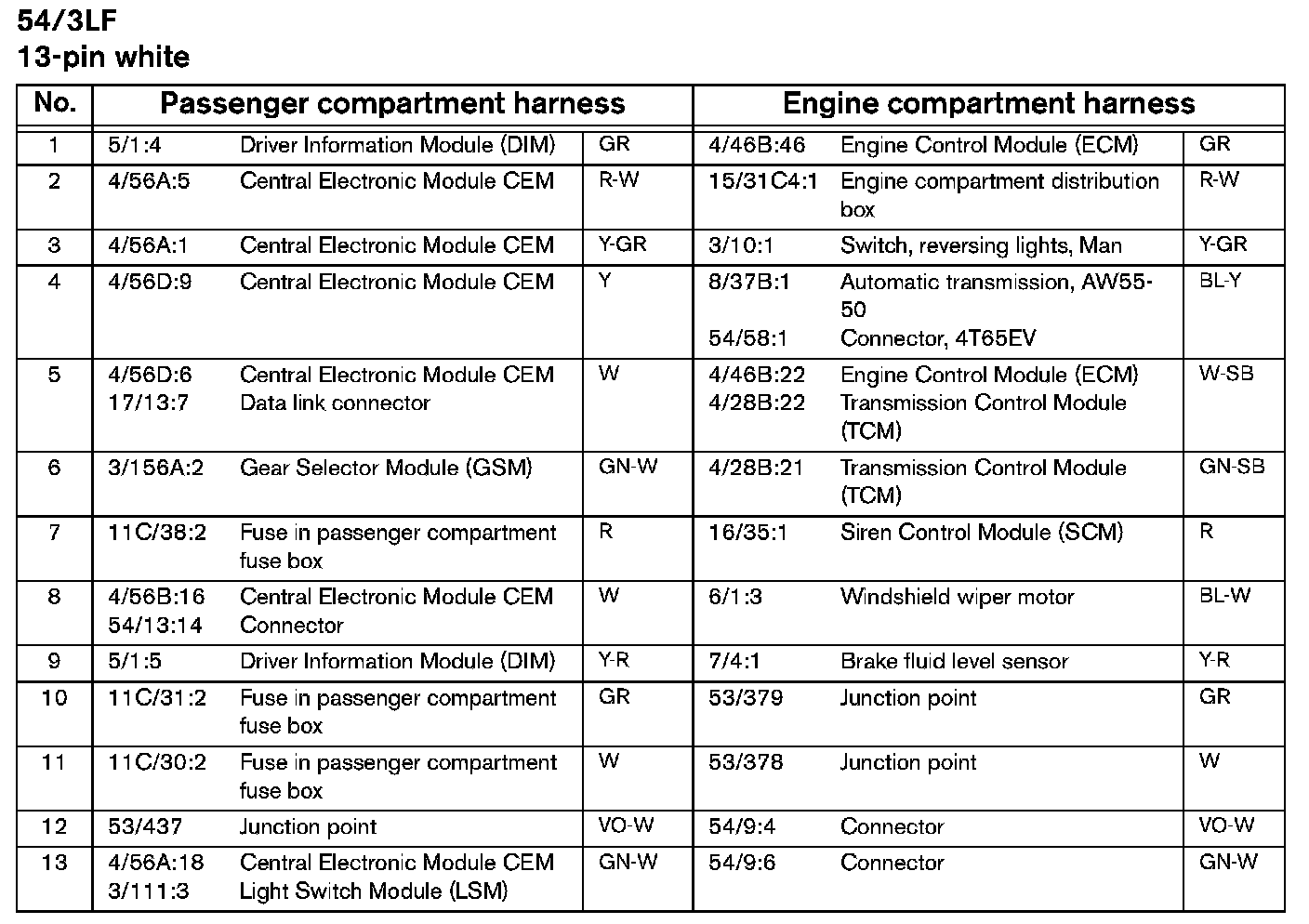

54/3LF

Connectors 54/3LF:



54/3LA-G Connector:
