Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2004 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3RB

54/3RB

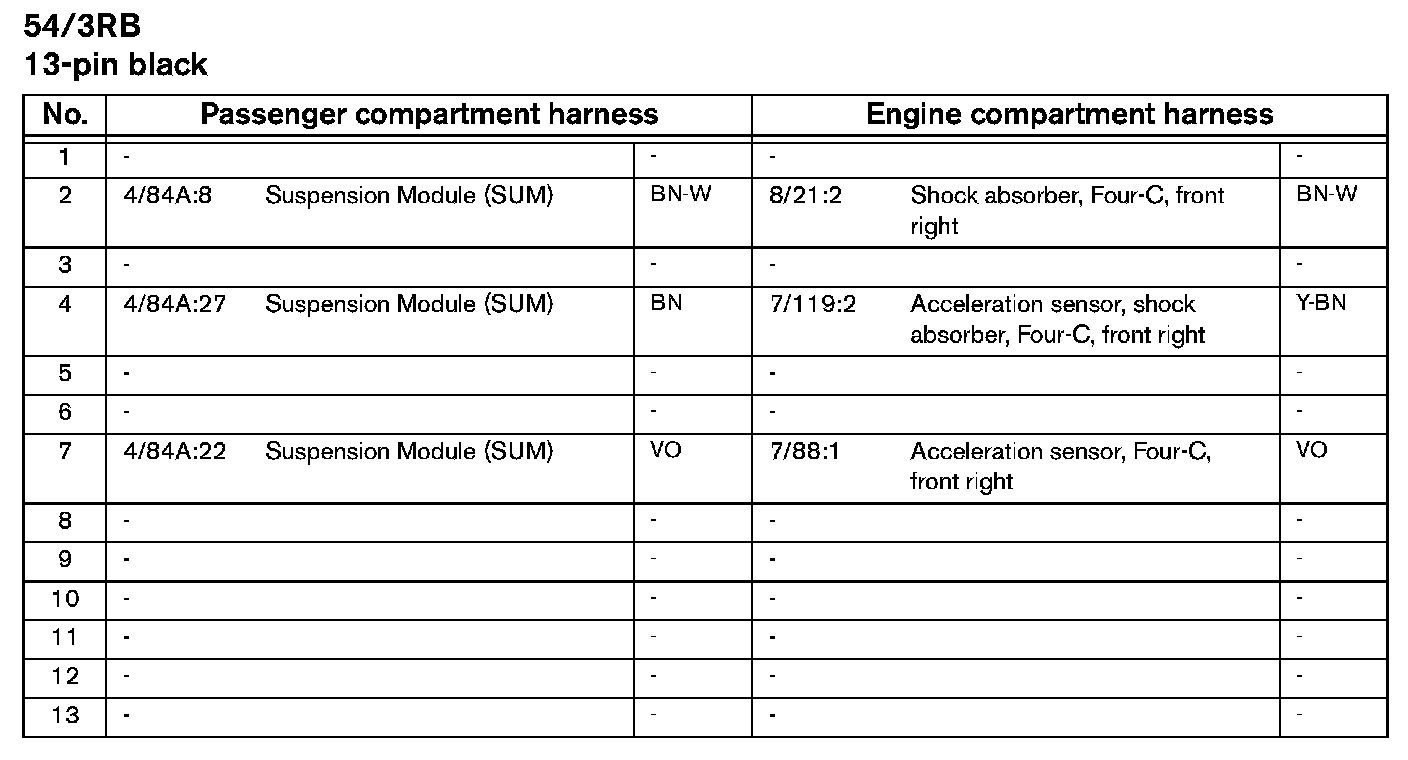

Connectors 54/3RB:



54/3RA-G Connector:
