Home >> Volvo >> 2004 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/51

54/51

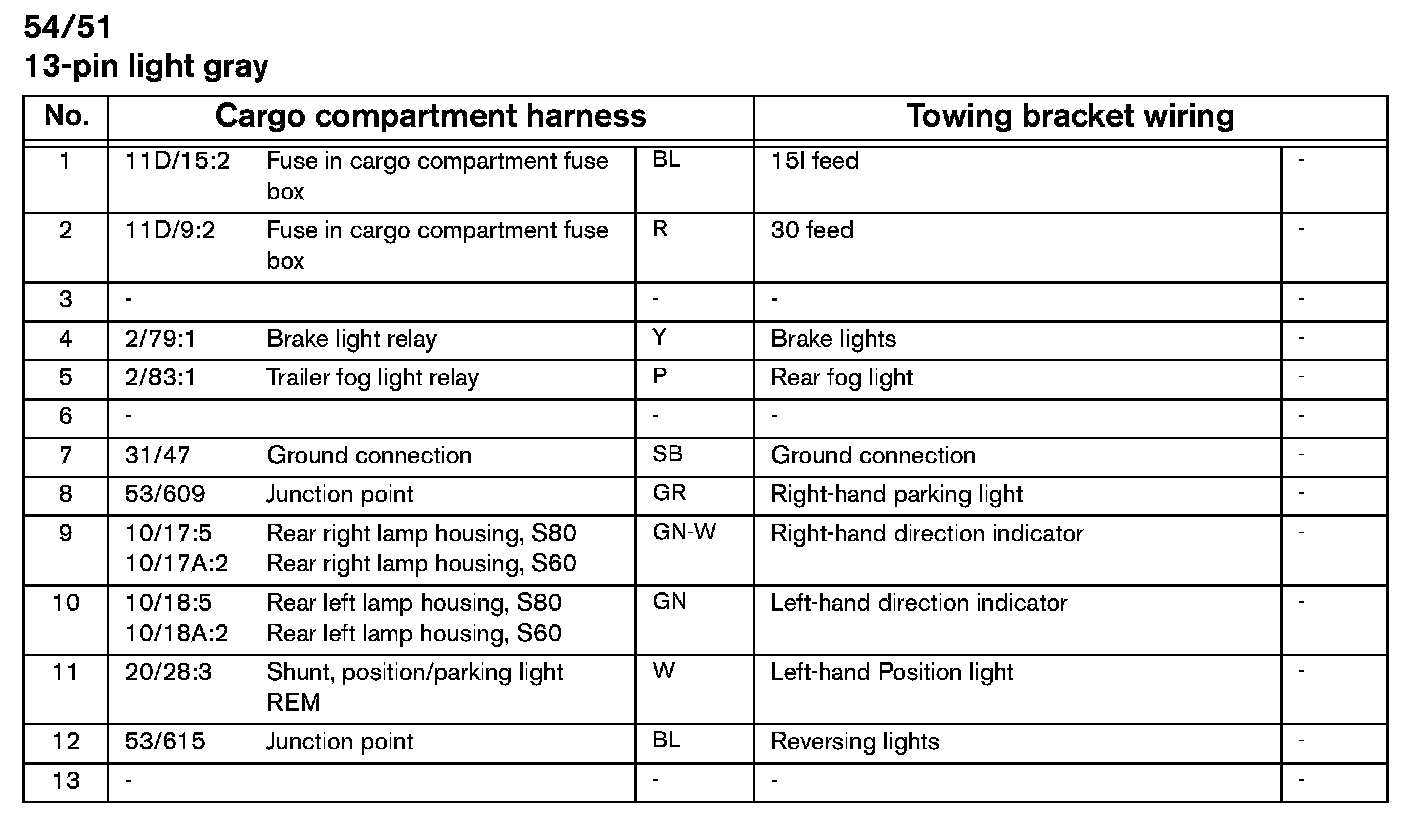

Connectors 54/51:



54/51 Connector:
