S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/59
54/59

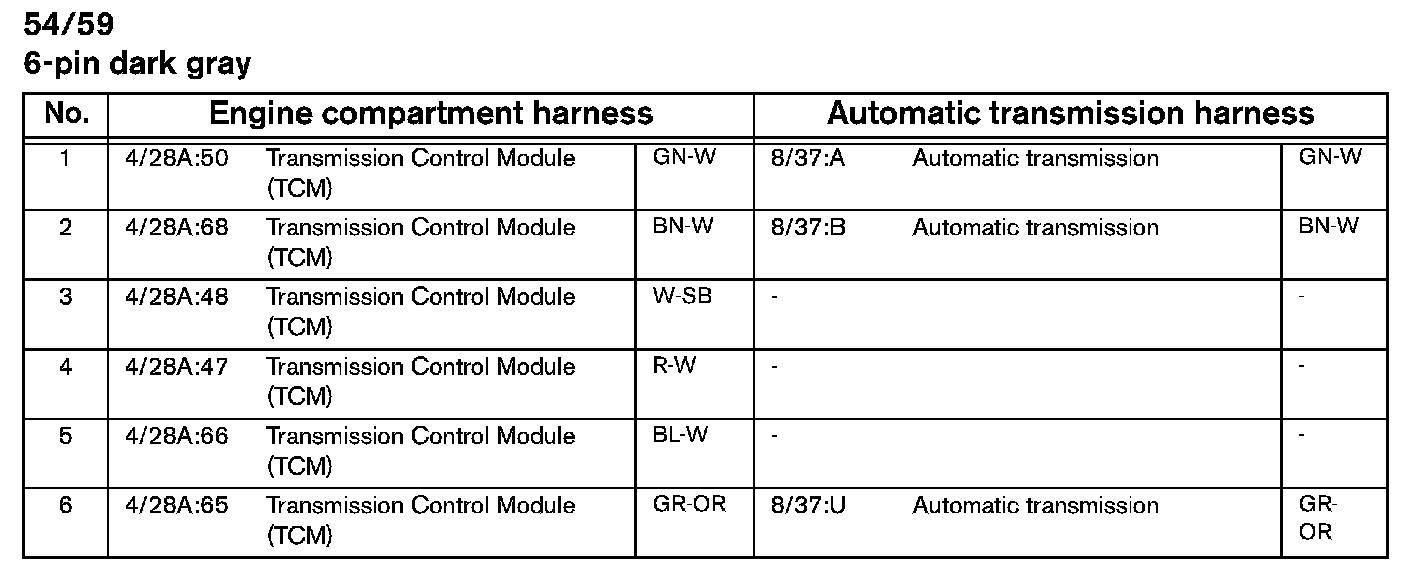

Connectors 54/59:
54/59 Connector:
