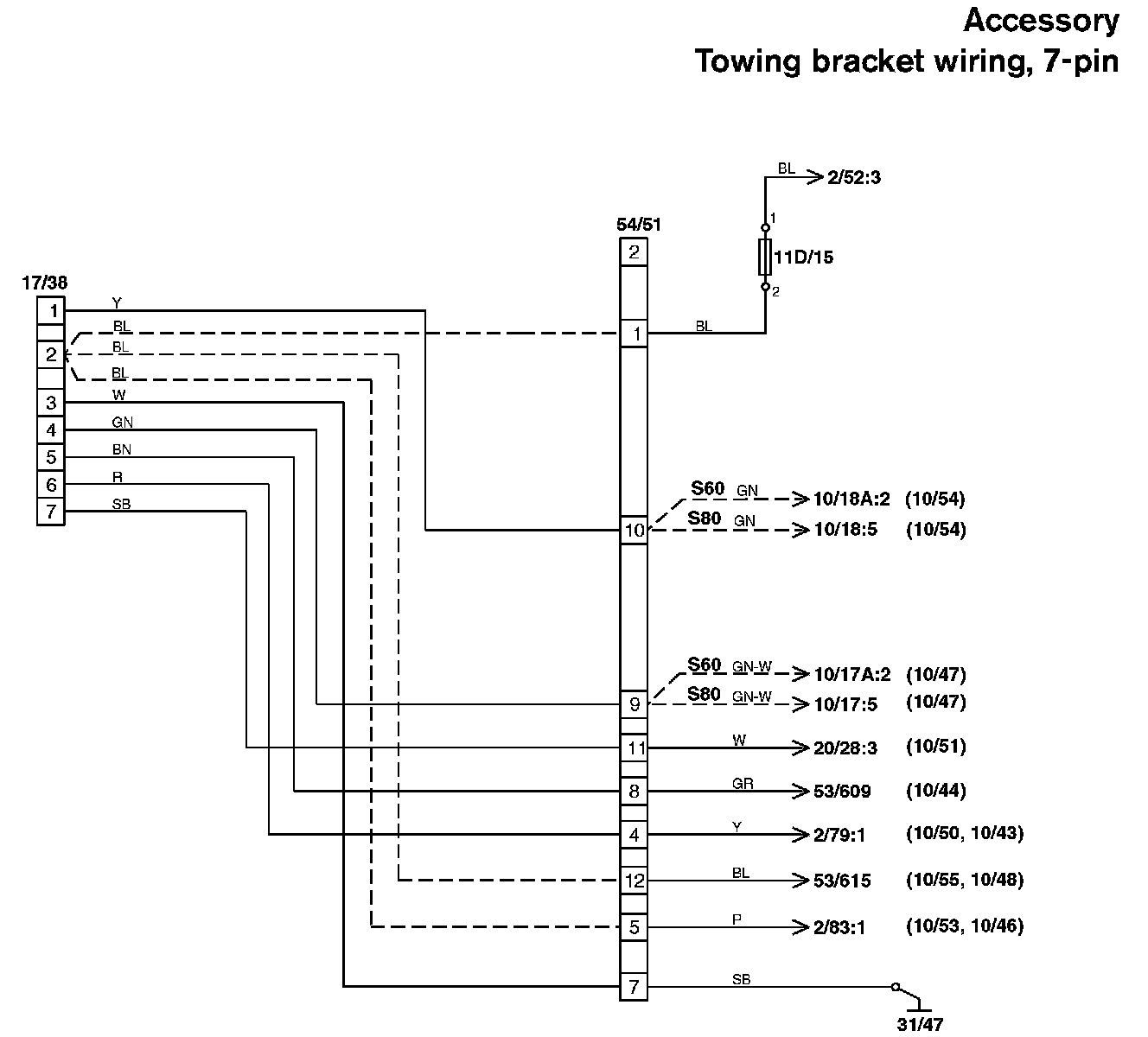

Accessory, Towing Bracket Wiring, 7-Pin

Accessory, Towing Bracket Wiring, 7-pin

Accessory, Towing Bracket Wiring, 7-pin:

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
