Electrical Diagrams

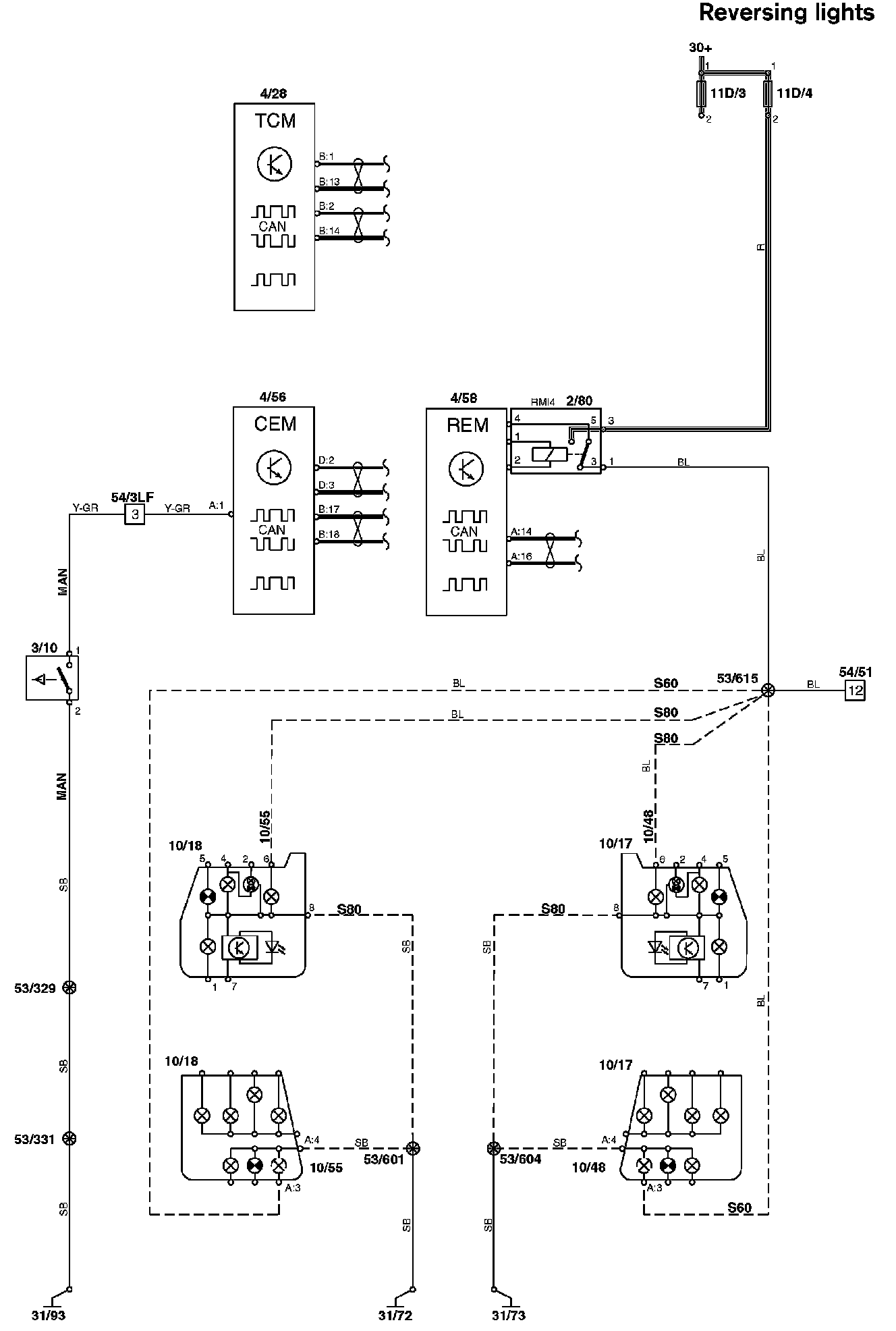

Reversing Lights

Reversing Lights:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
