Transmission Fluid, Replacing

Transmission fluid, replacing
Removing splash guards and front wheels





Raise the vehicle.

Remove

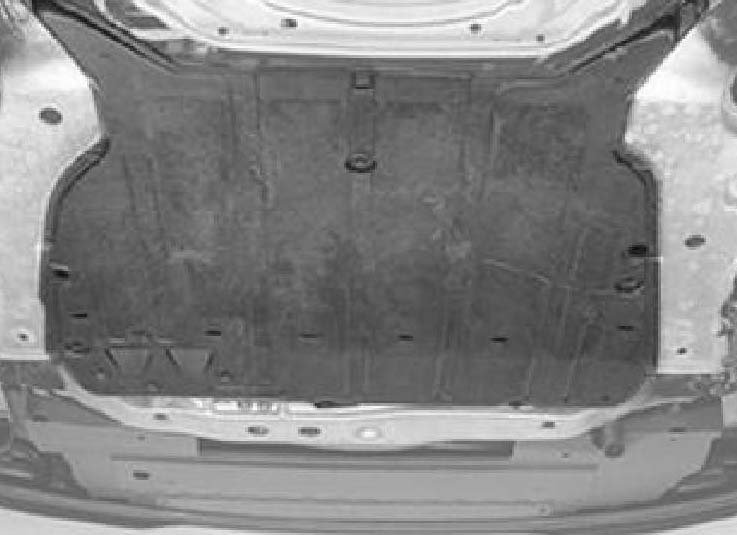

- the splash guard under the engine
- the left front wheel.

Draining the transmission fluid
Collect the oil in a container.
Remove the drain plug. Drain the oil.
Install the plug with a new gasket. Tighten to 35 Nm.

Checking the oil level





Remove the level plug and fill with oil. Use only Volvo transmission oil P/N 116 1745 (1 liter).
Volume in the transmission 2.1 liters.
Install the level plug with a new gasket. Tighten to 35 Nm.

Installing splash guards and front wheels
Install
- the splash guard under the engine. Tighten the screws. Tighten to 25 Nm
- the wheel.
