Parking Assistance System

NOTE: This article contains corrected data processed from TSB# 3390043.

Parking Assistance System

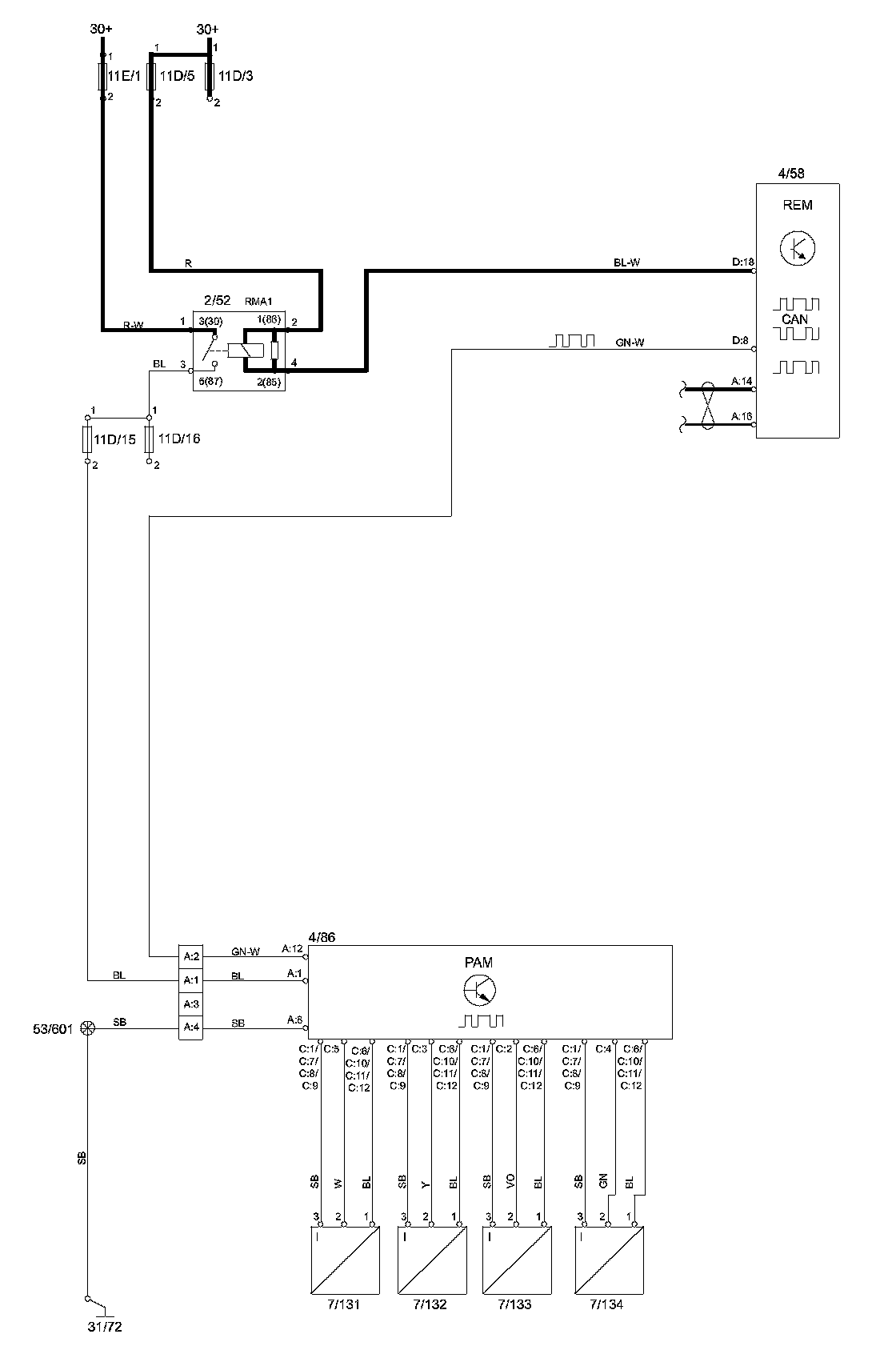

Parking Assistance System:

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
