Tightening Torque

Tightening torque
General tightening torque

Note: Screws coated with a locking fluid or self locking nuts must be replaced with new when reinstalled.





See the table to find the tightening torques for components not included in the summary.
Nuts and screws which are not self locking can be reused provided that they are in good condition.

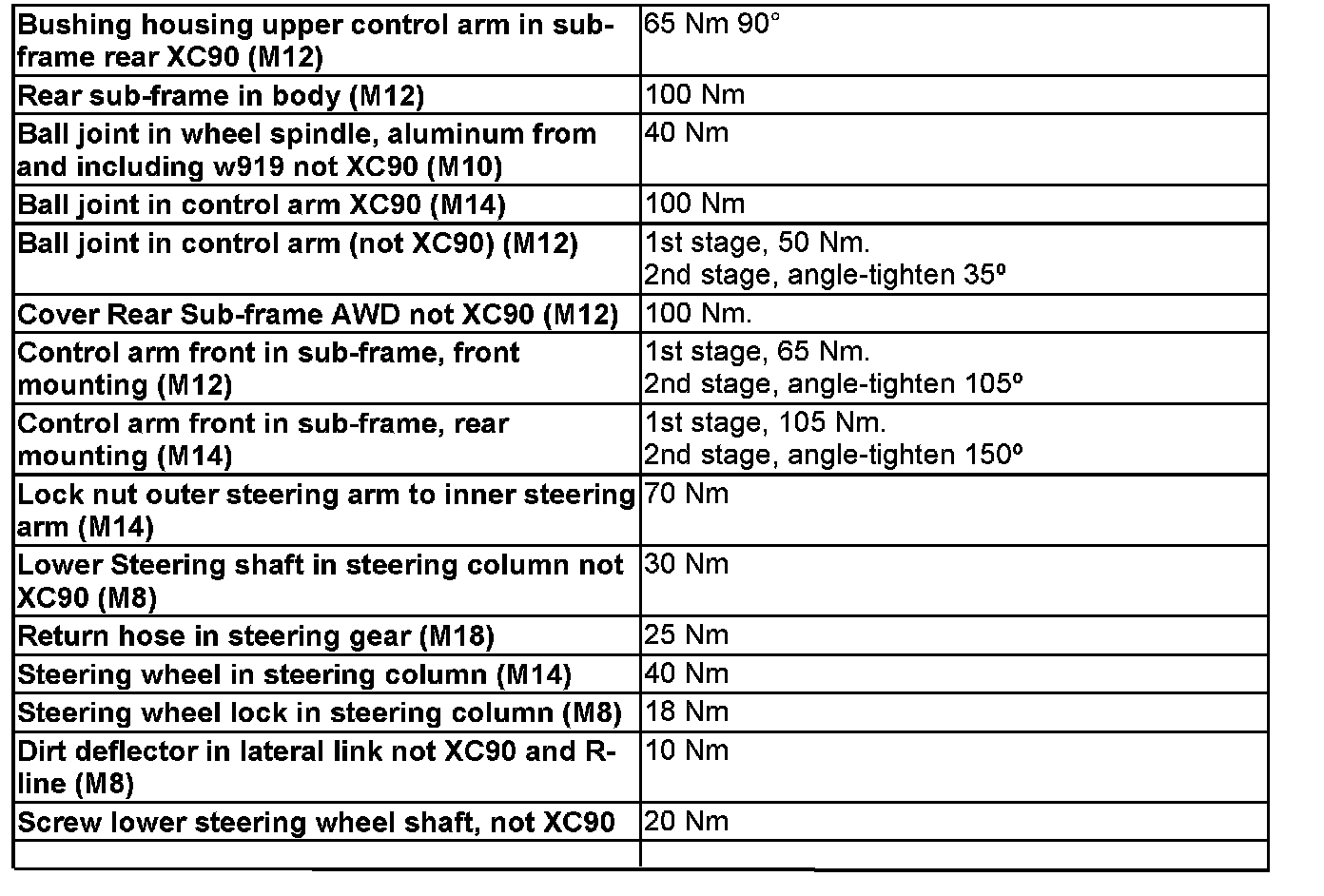

Summary of tightening torques for specific components

Note: Screws coated with locking fluid or sealant must be replaced with new when reinstalled.








Always use new screws and nuts when angle tightening. Any exceptions to this rule will be indicated in the method.
Angle-tightening in tight spaces.
