Procedures

Replacing The Antenna

Preparations
Ignition off.

Remove:
- the panels
- the panels
- the rear lighting

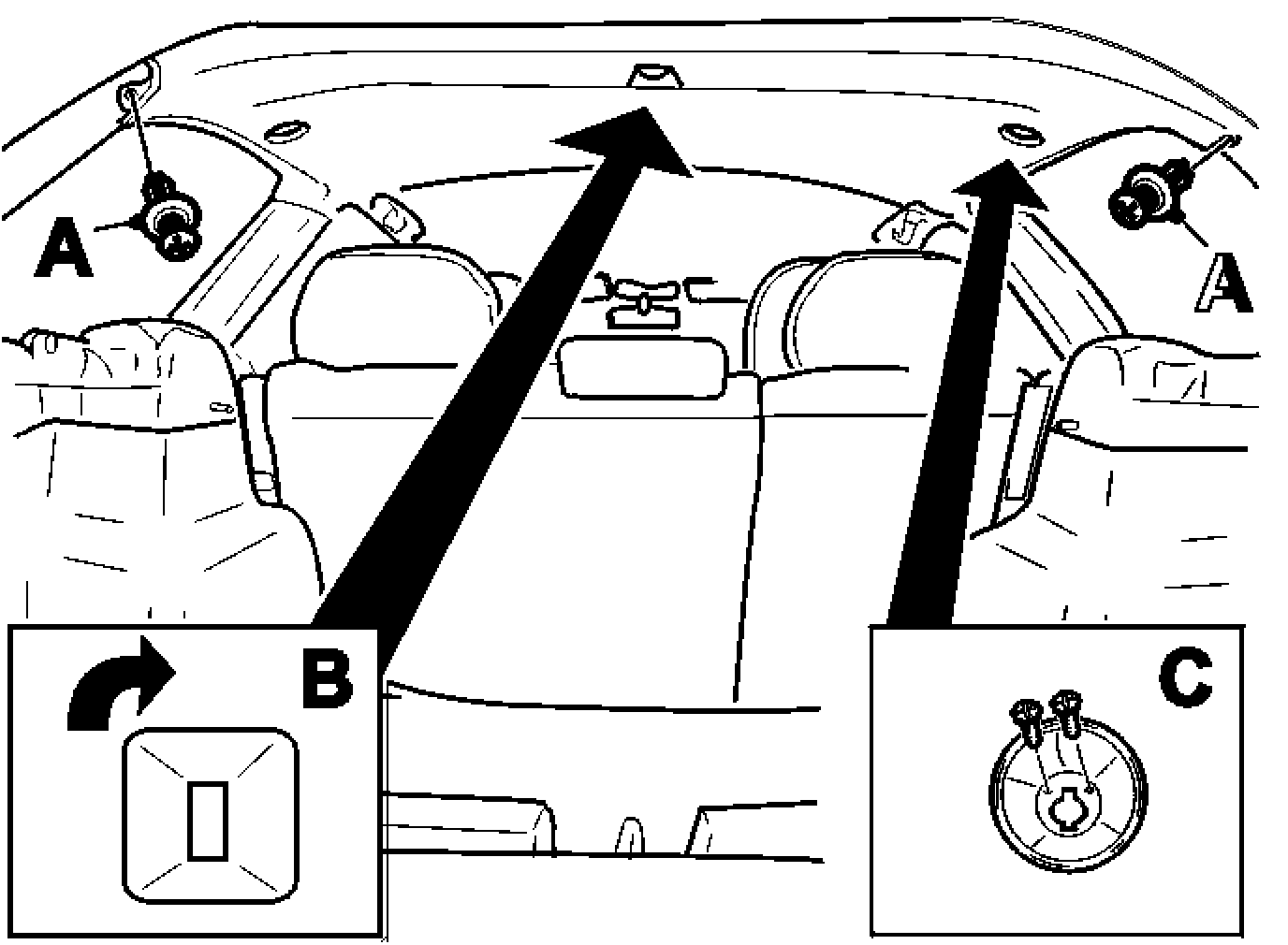

Remove:







- the two clips (A) and clamp (B) by turning a � turn
- the mountings (C) for the cargo net (if applicable)
- the rear grab handle

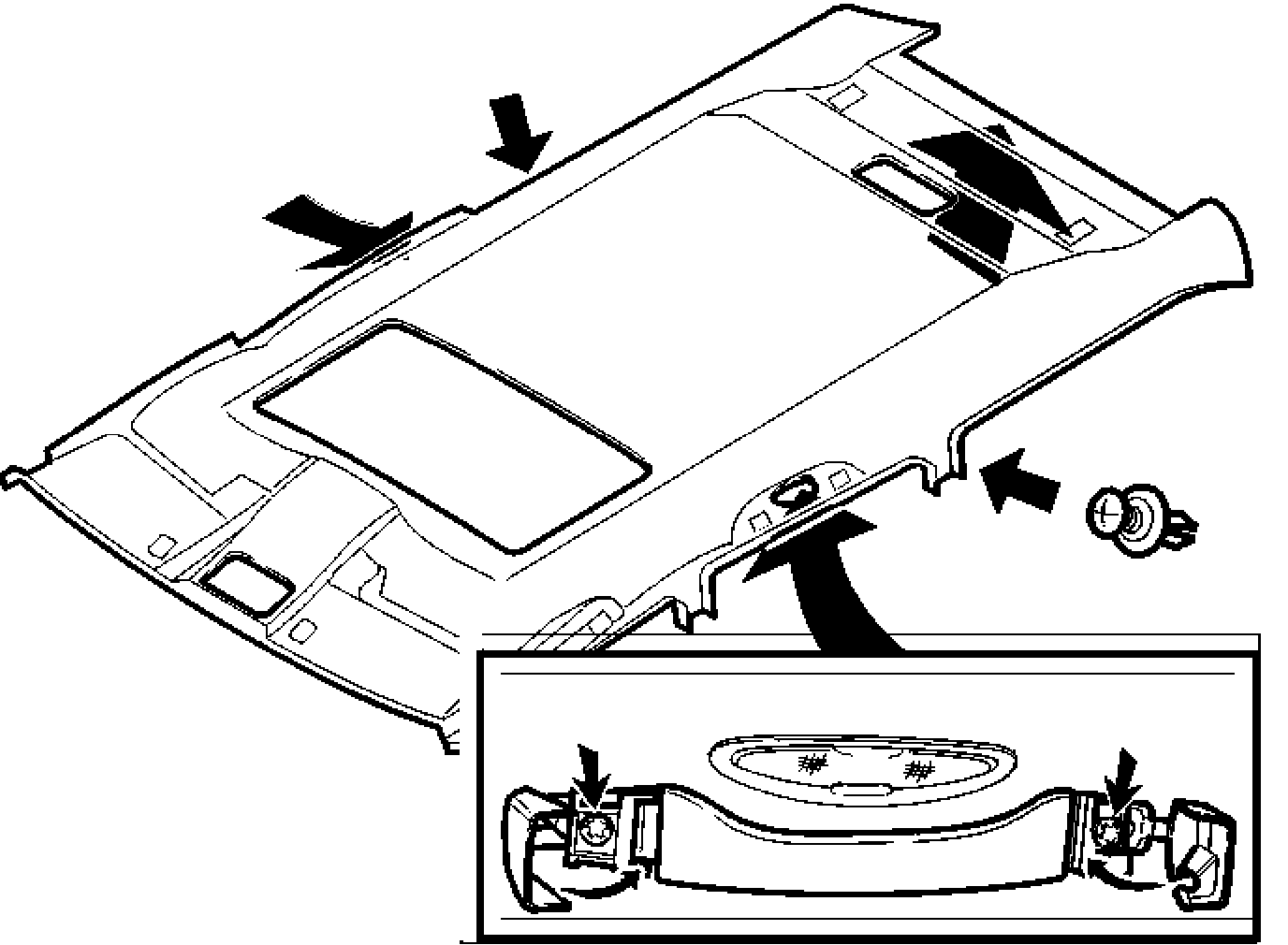

Only remove the rear edge of the headlining. Carefully lower the rear edge.

NOTE: Do not rumple or break the headlining.

Removing The Antenna







- Remove the antenna cable from the clip.

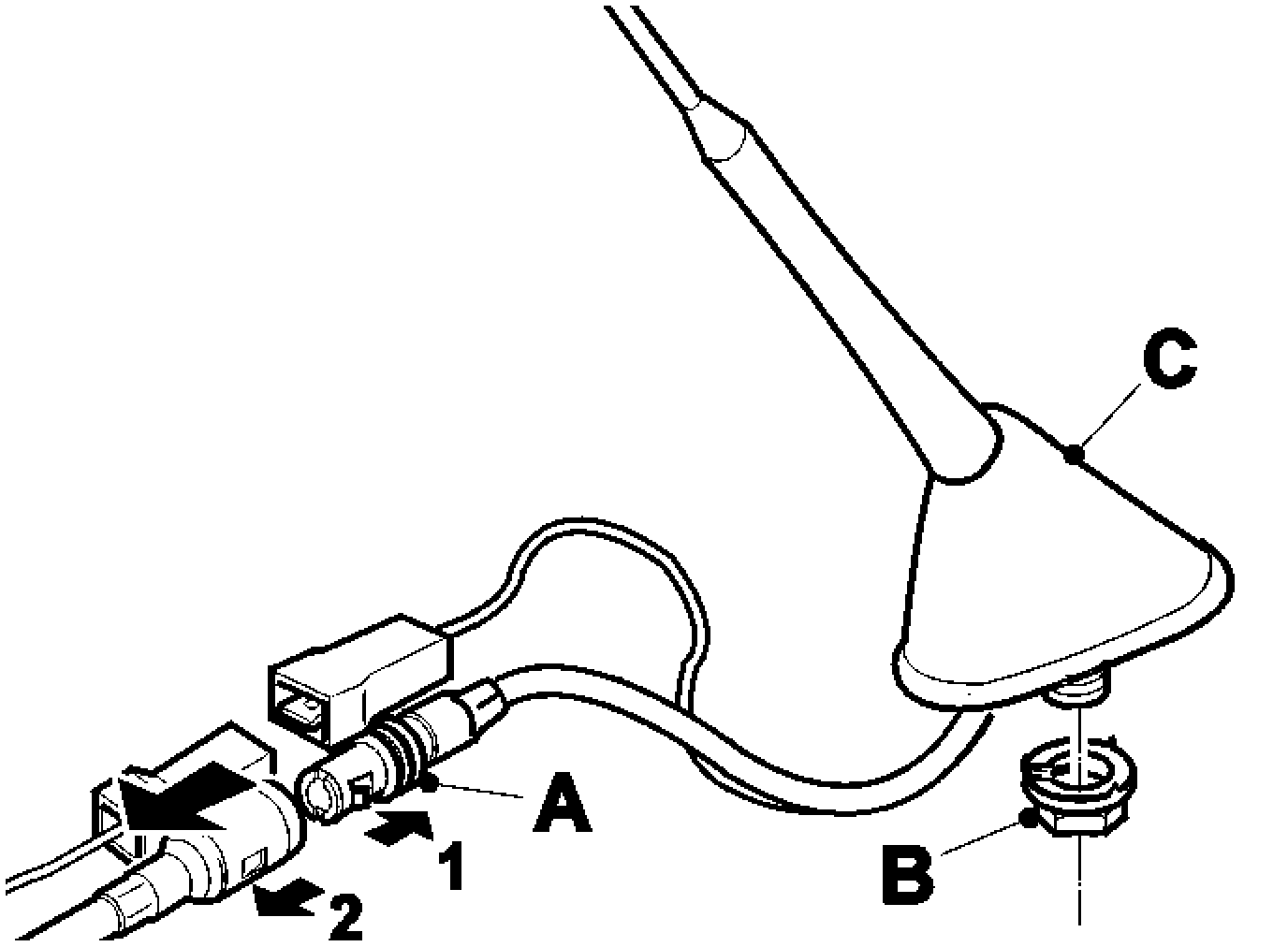

- Press lock (A) down to position (1). Remove the antenna cable and power cable.
- Remove the nut (B) from the inside. Remove the antenna amplifier (C).

Installing The Antenna

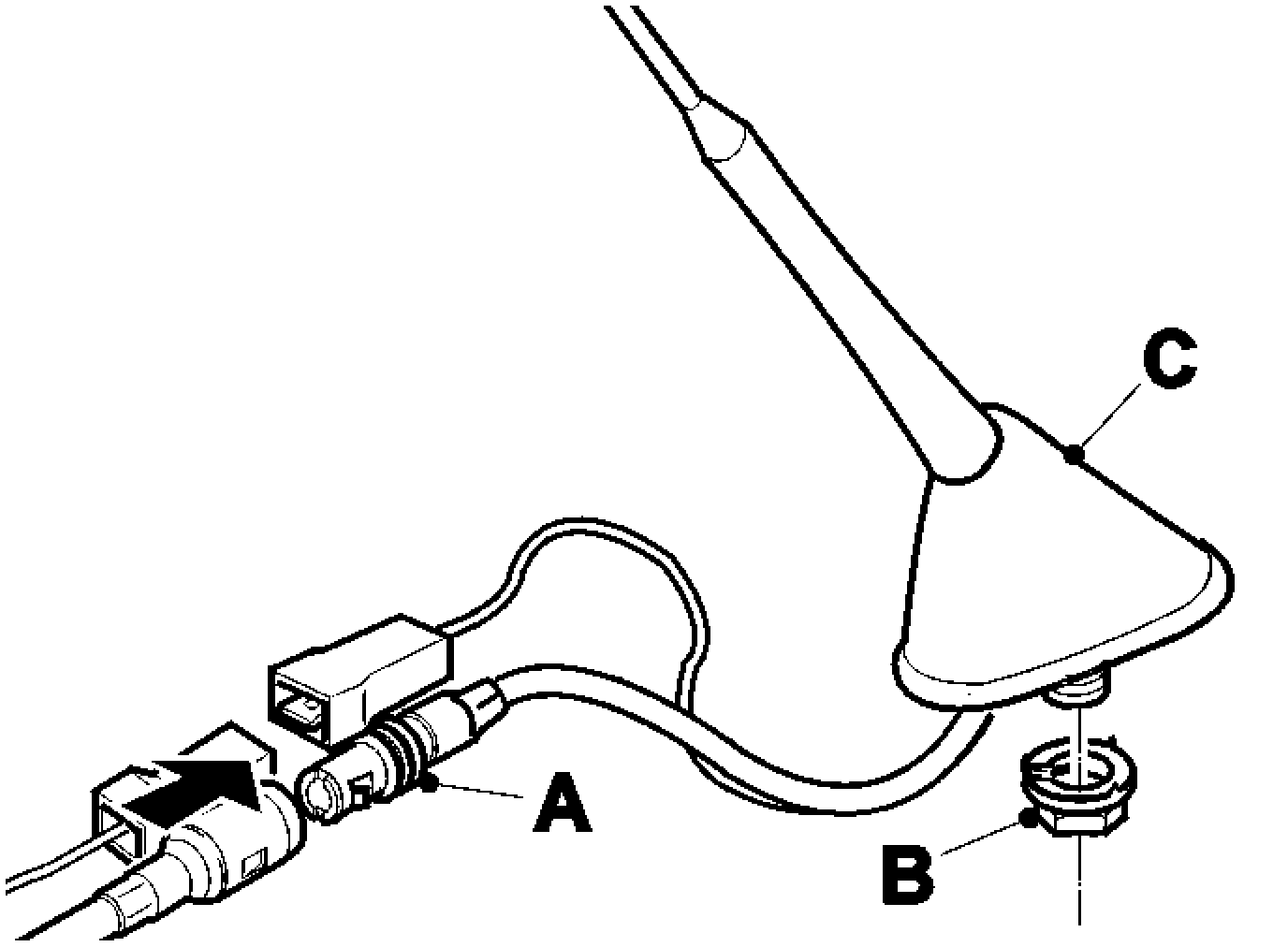

- Correctly position the antenna amplifier (C). Install the nut (B) on the inside. Tighten to 4 Nm
- Connect the antenna cable and power cable.
- Secure the antenna cable in the clip.

Installing The Headlining And Panels

Install:







- the headlining carefully in place
- the rear grab handles

Install:







- the mountings (C) for the cargo net (if applicable)
- the two clips (A) and clamp (B).

Install:
- the rear lighting
- the panels
- the panels

Check







- Ignition on.
- Switch on the radio.
- Check the function.
