Audio Level 1



Audio Level 1

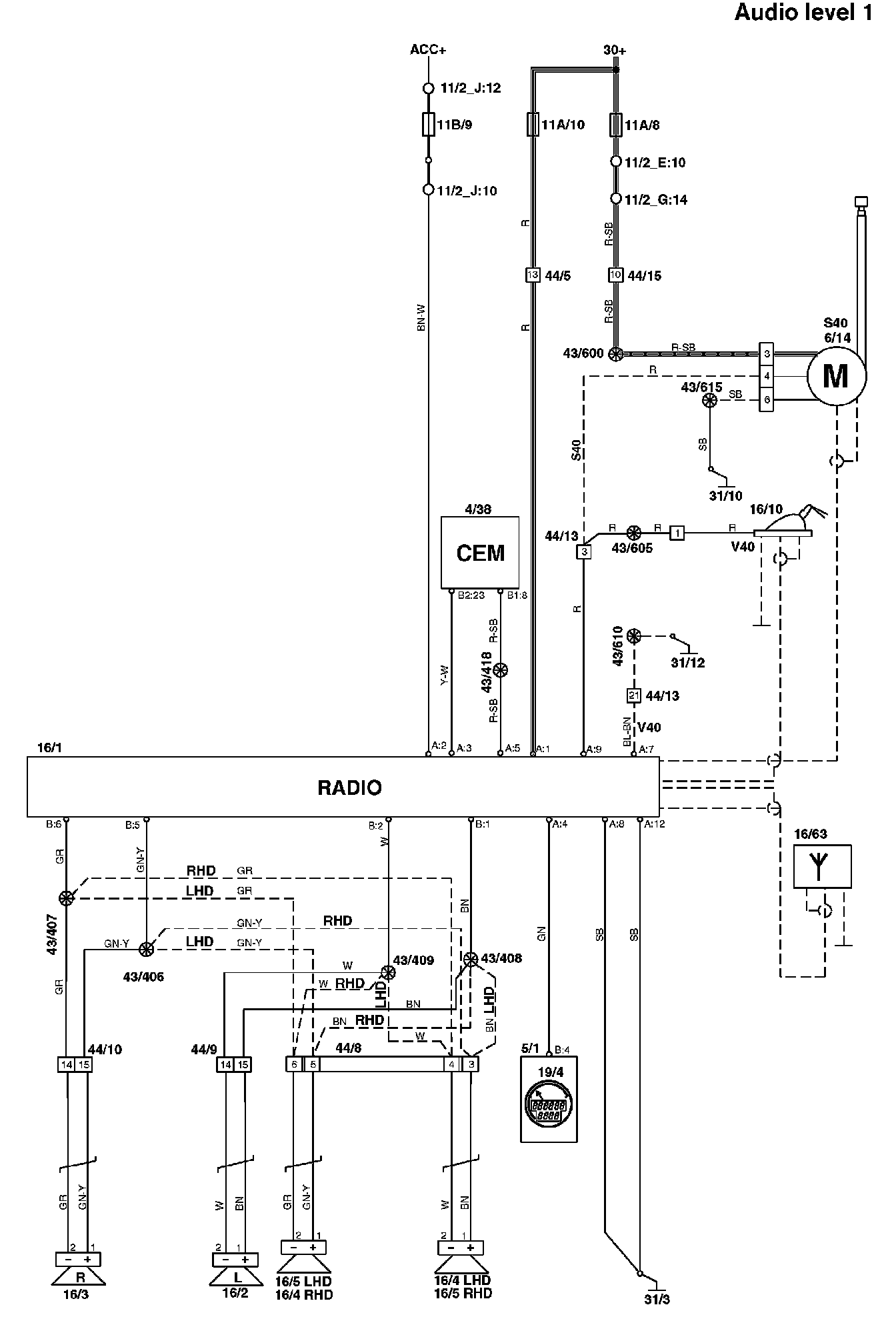

Audio Level 1:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
