Engine Mountings - Automatic Transmission


Engine Mountings. 4CYL Auto.Trans. Turbo

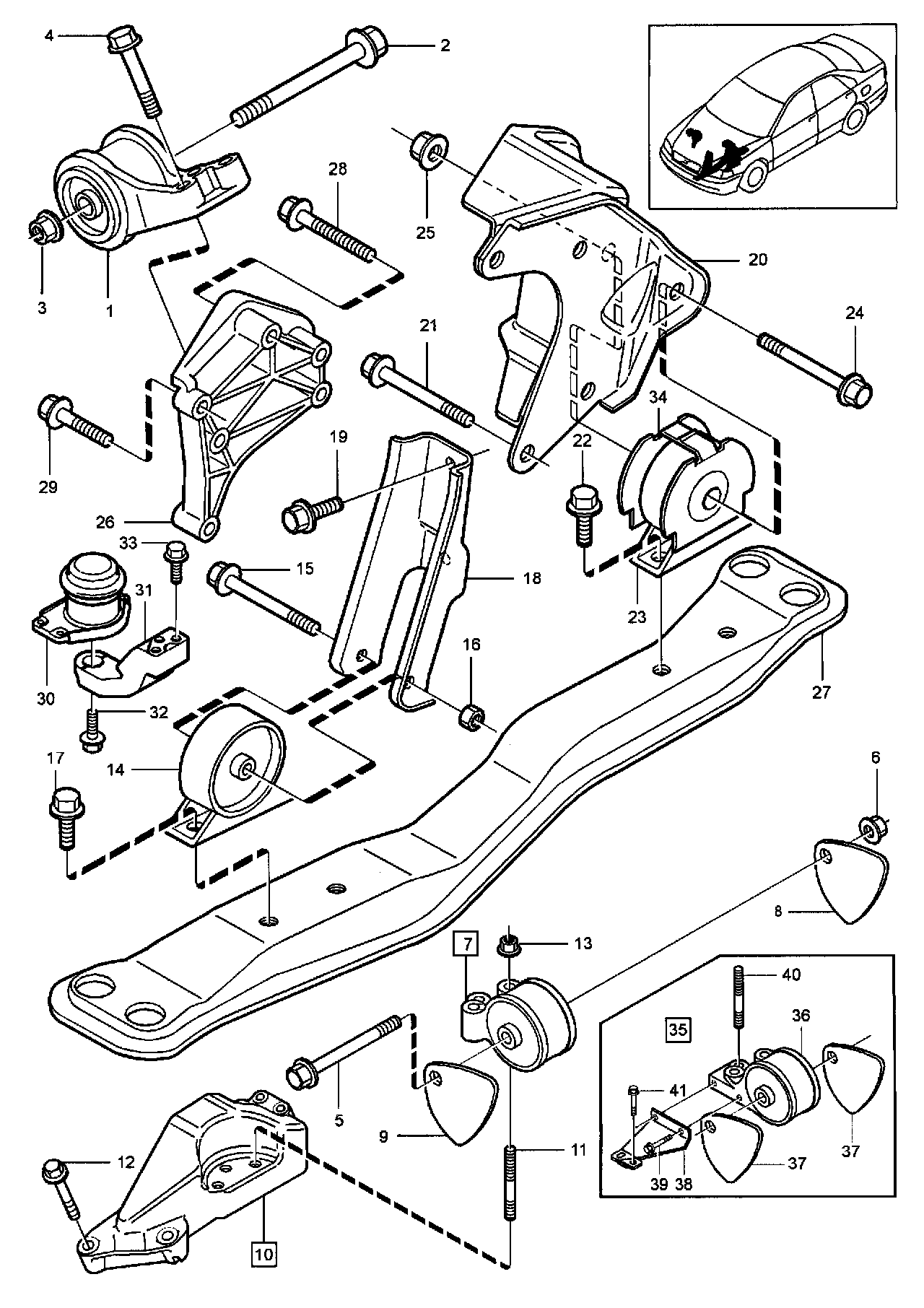

Engine Mountings. 4CYL AUTO.TRANS. TURBO (Illustration):

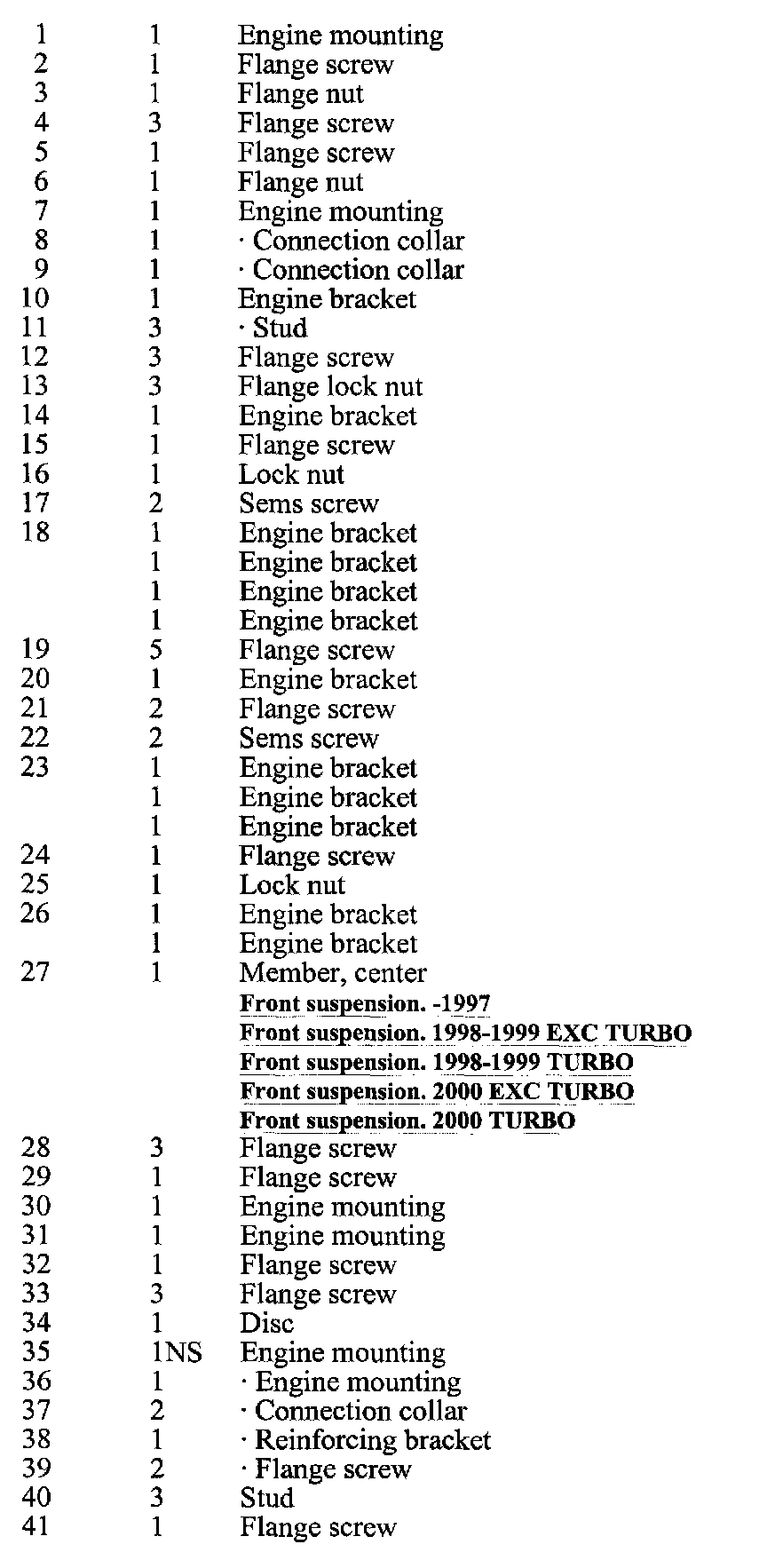

Engine Mountings. 4CYL AUTO.TRANS. TURBO (Legend):
