Component Resistance Values

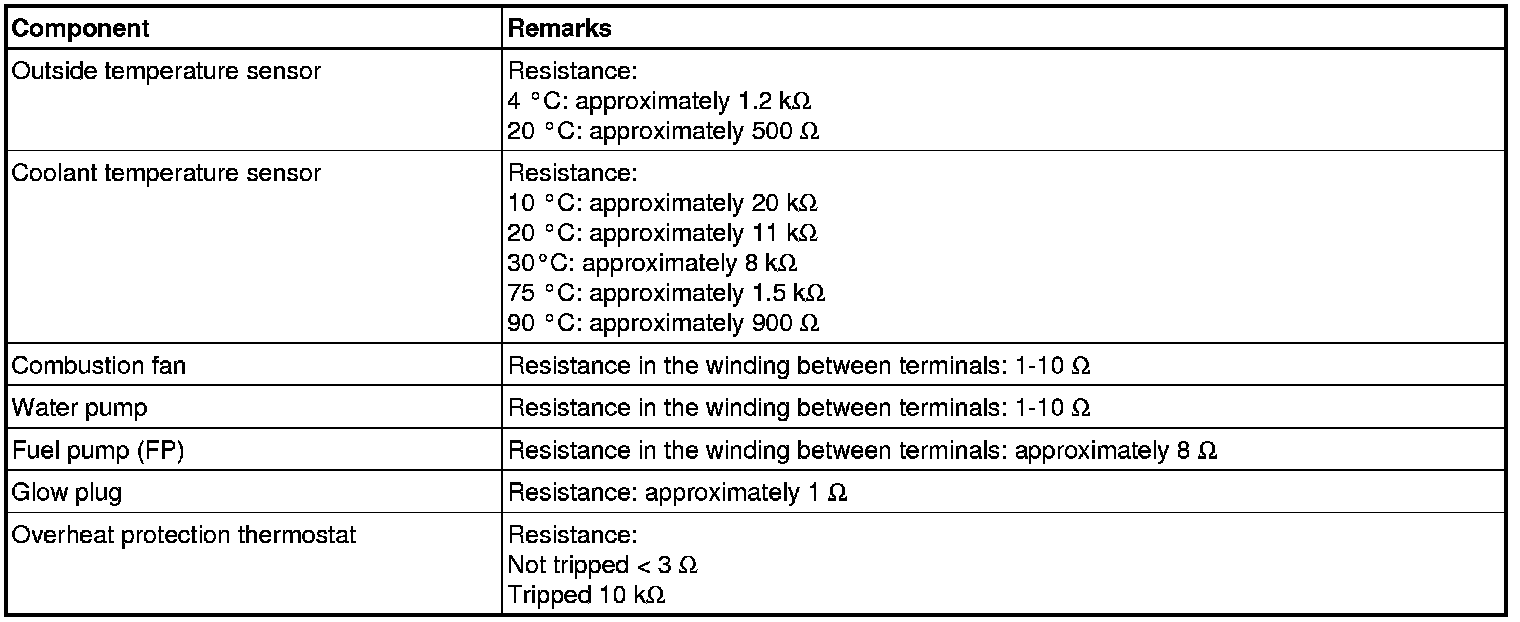

Component resistance values
The resistance values stated below are at +20°C unless otherwise indicated.
