Electrical Accessory Panel: Locations

Distribution Rails

Distribution Rails:

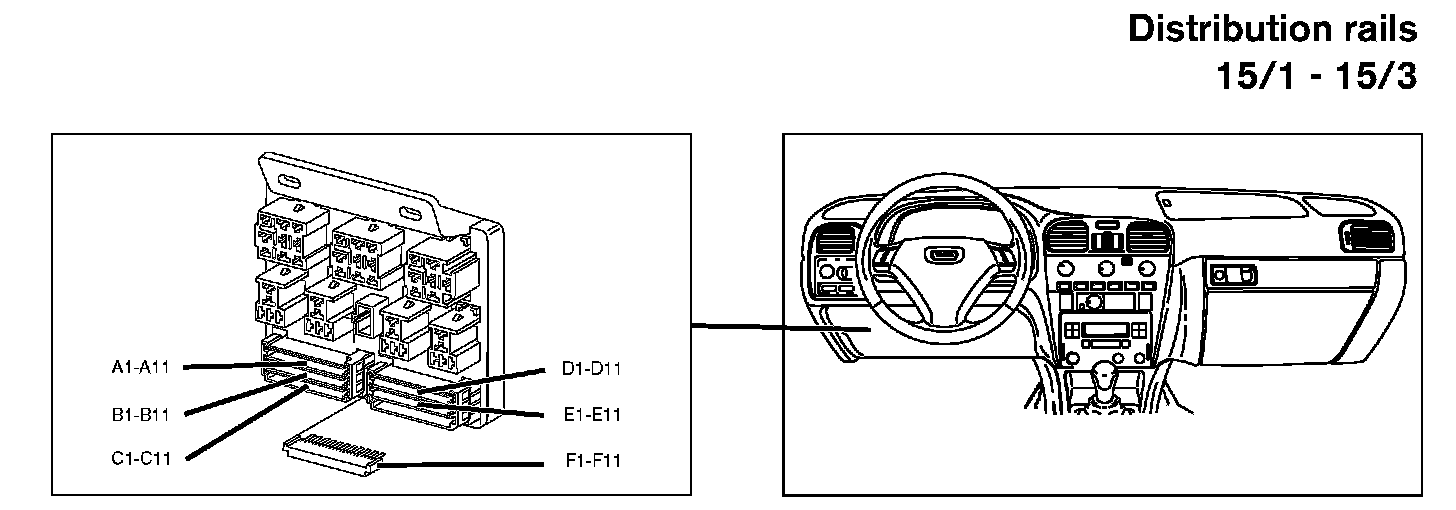

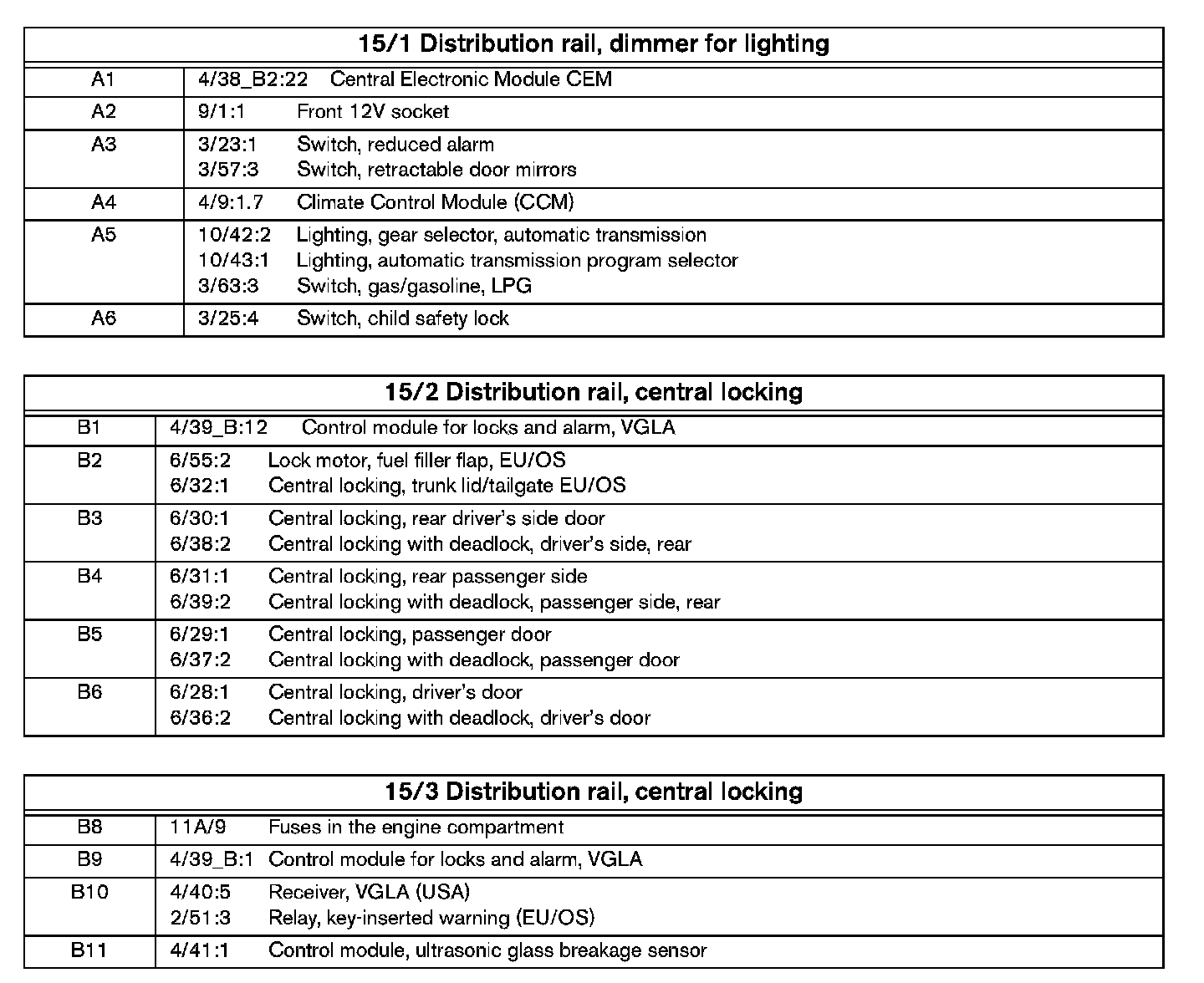

Distribution Rails 15/1 - 15/3:

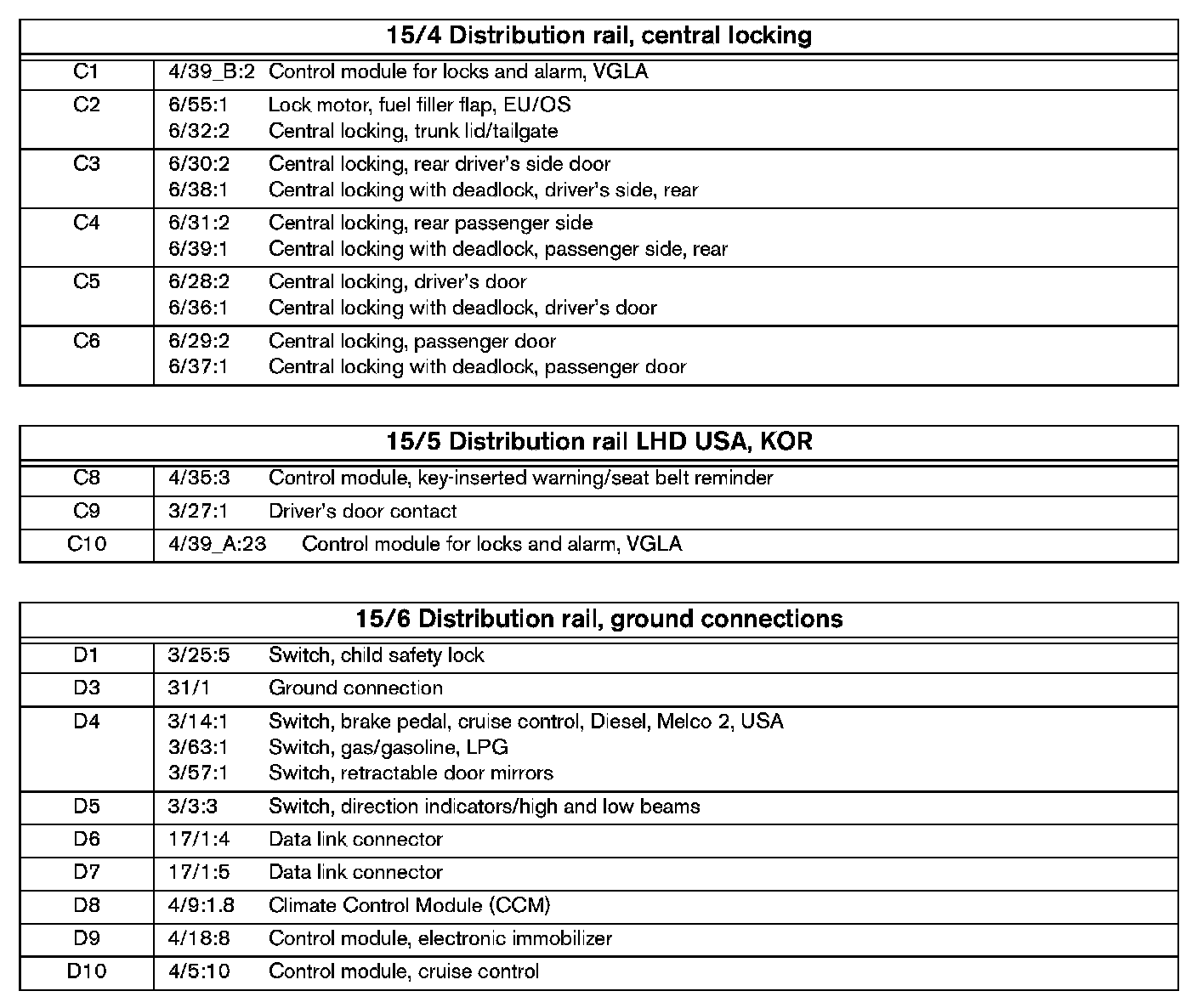

Distribution Rails 15/4 - 15/6:

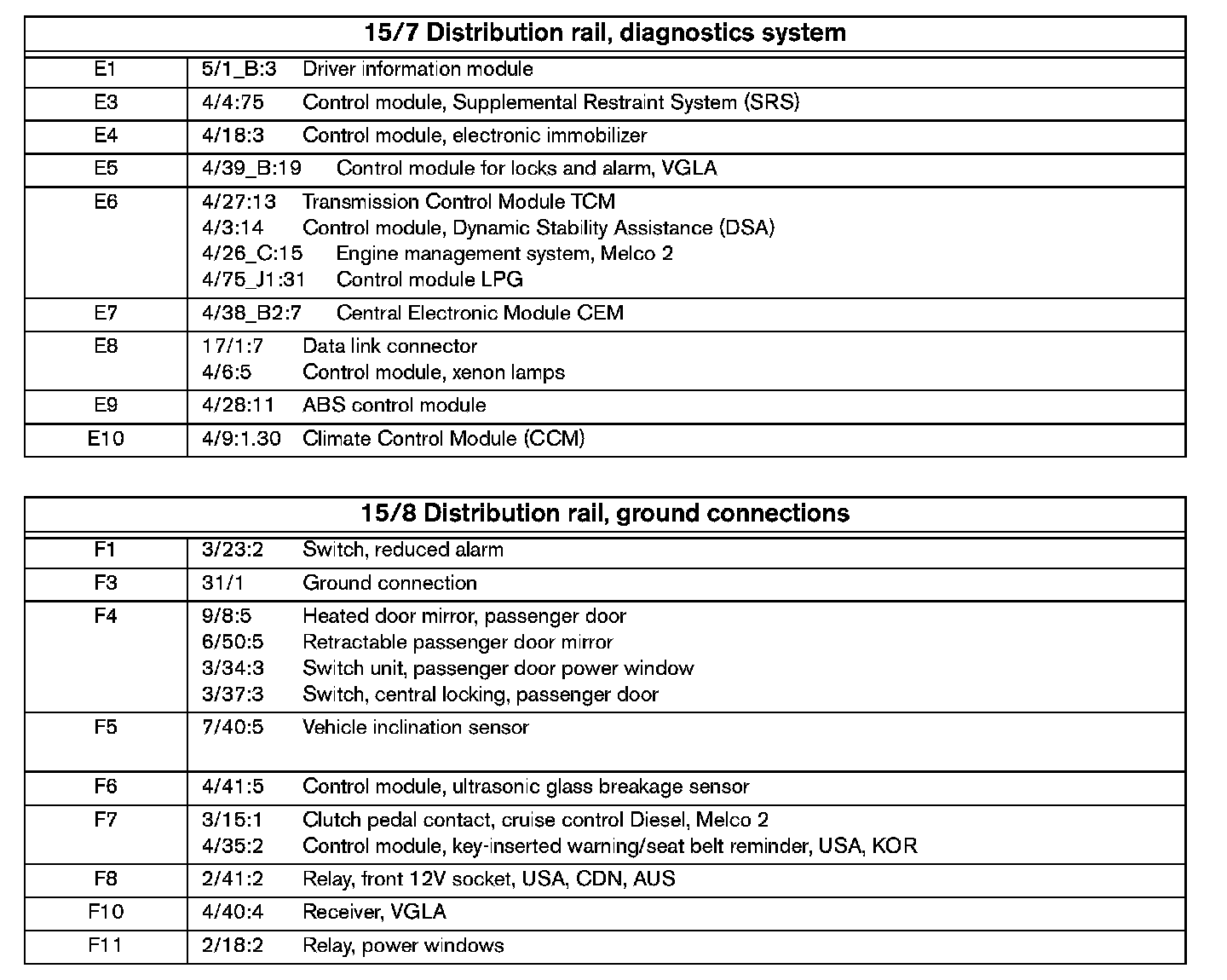

Distribution Rails 15/7 - 15/8:

15/1-8 Distribution Rail:
