Electrical Accessory Panel: Service and Repair

Relay in central electrical unit passenger compartment

Replacing relay in central electrical unit passenger compartment Removing relay







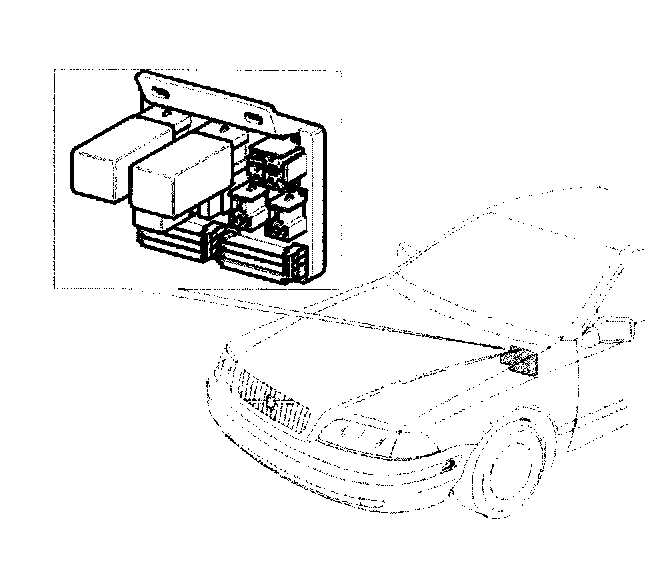

The central electrical unit is located in the passenger compartment on the driver's side under the soundproofing panel.

Remove:
- The battery ground cable.
- Soundproofing panel screws.
- Soundproofing panel.

Installing relay







Replace relay.

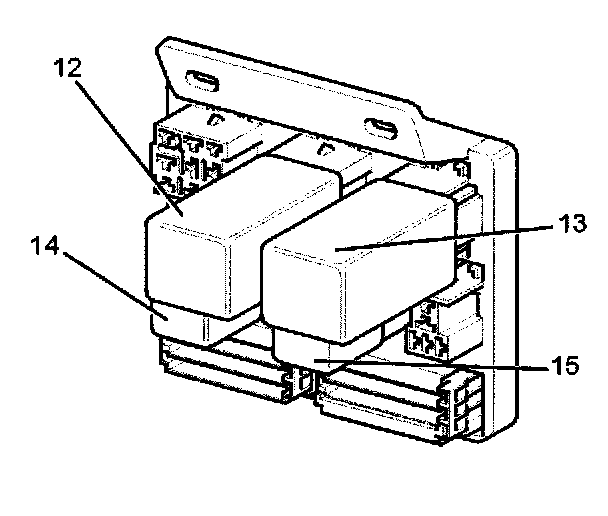

Position of relays as illustrated in graphic and table.







Connect battery negative lead.

- Test relay function.

Install soundproofing panel and screws.
