Engine Management System (EMS 2000 Turbo)

Engine Management System, EMS 2000 Turbo

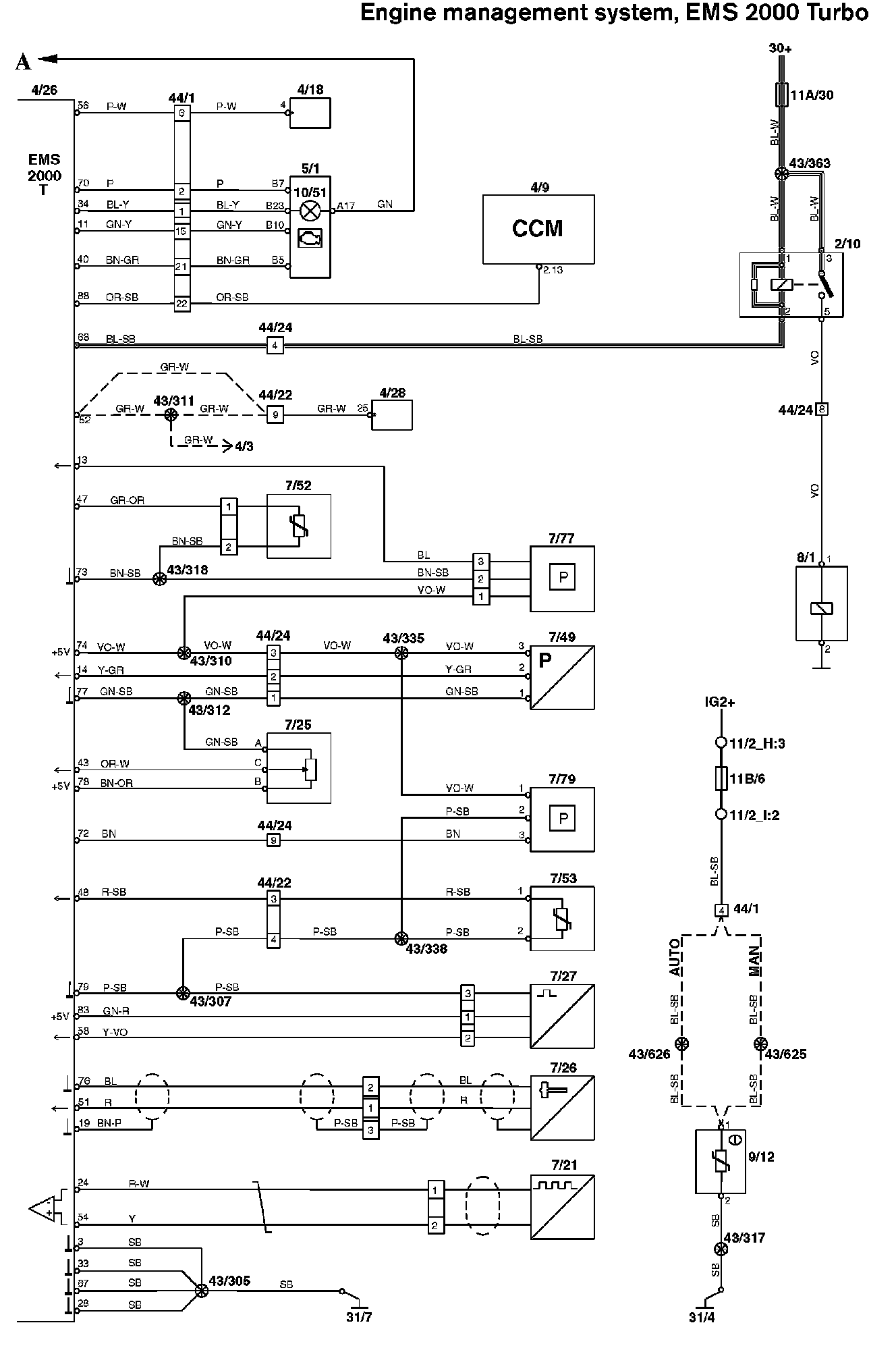

Engine Management System, EMS 2000 Turbo, Part 1:

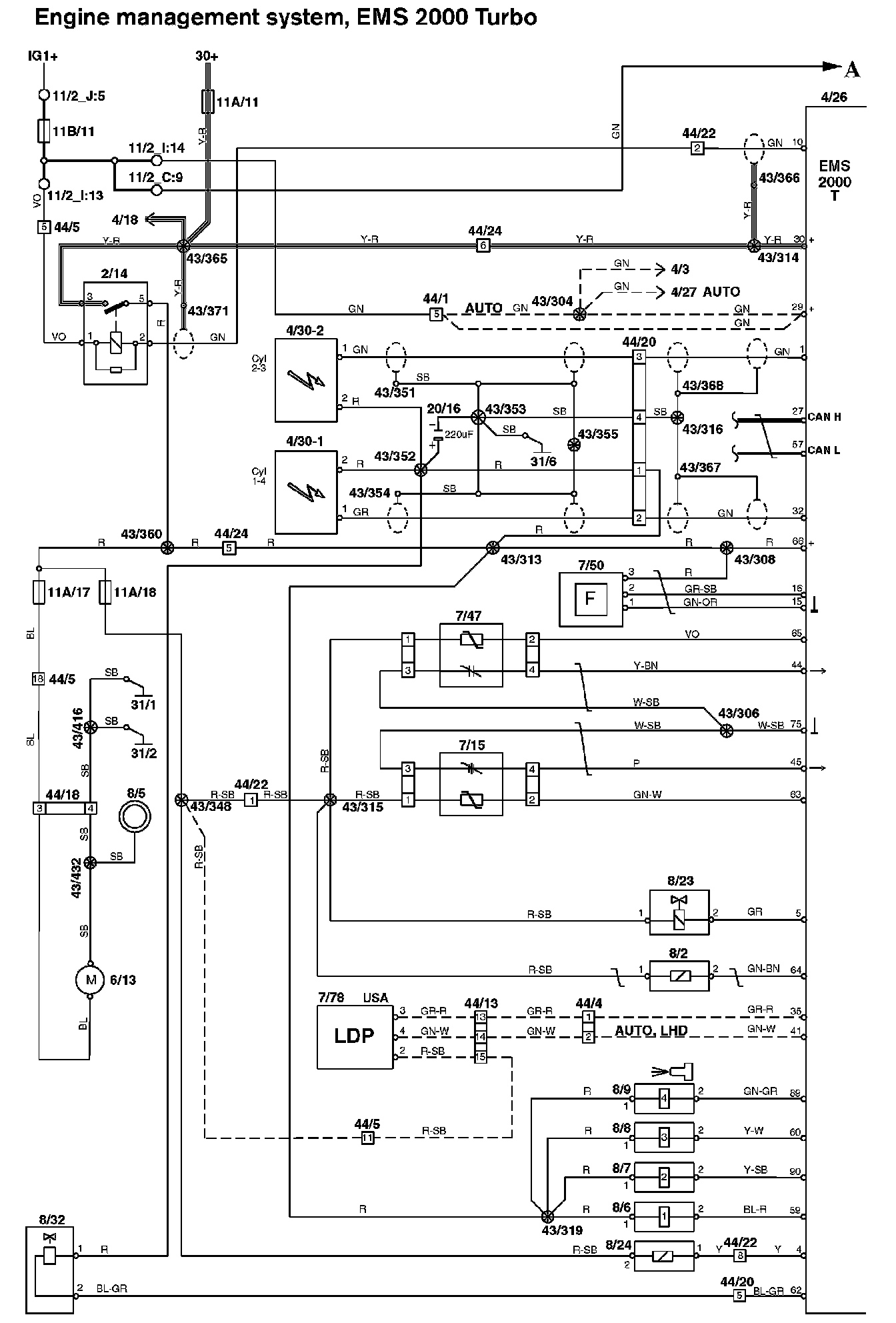

Engine Management System, EMS 2000 Turbo, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
