Transmission Connectors

Transmission connectors
Bracket and connectors





There are five connectors on a bracket on the transmission.
The transmission sensors are connected to the control system via these connectors.
The illustrations show the transmission connectors with the numbering for each terminal pin.
The cable harness connectors are numbered correspondingly.





1. Connector, black 2-pin





2. Connector, white 2-pin

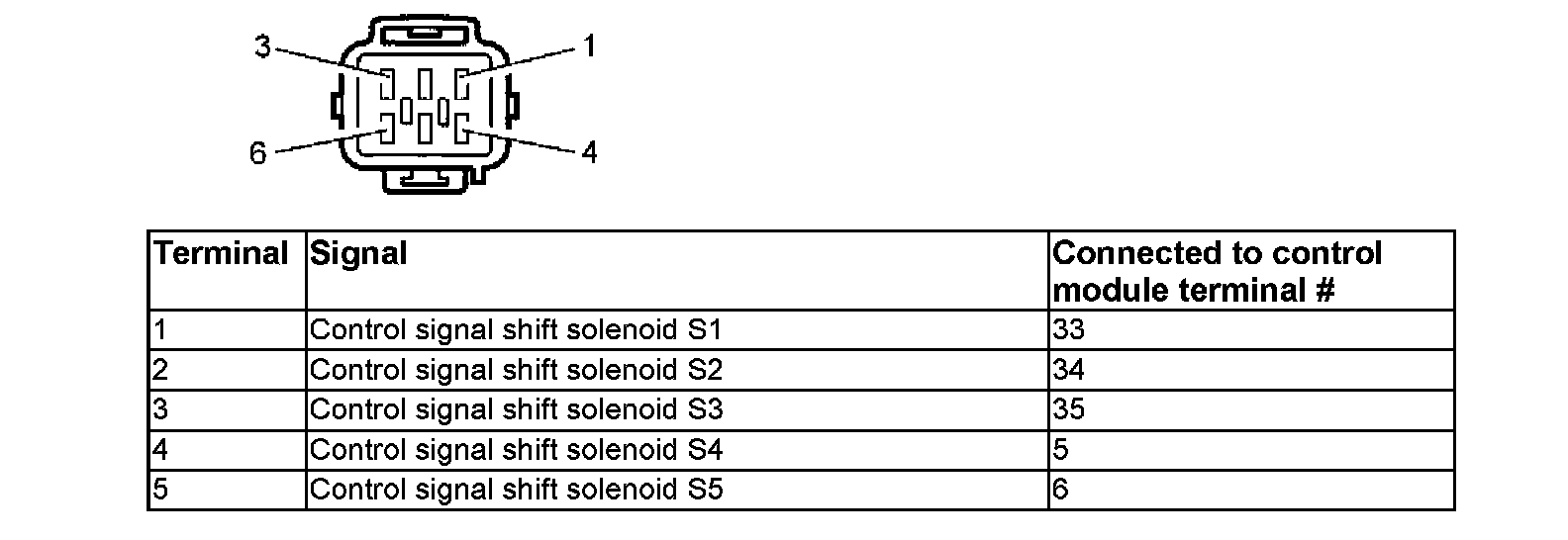

3. Connector, dark gray 6-pin





4. Connector, light gray 8-pin

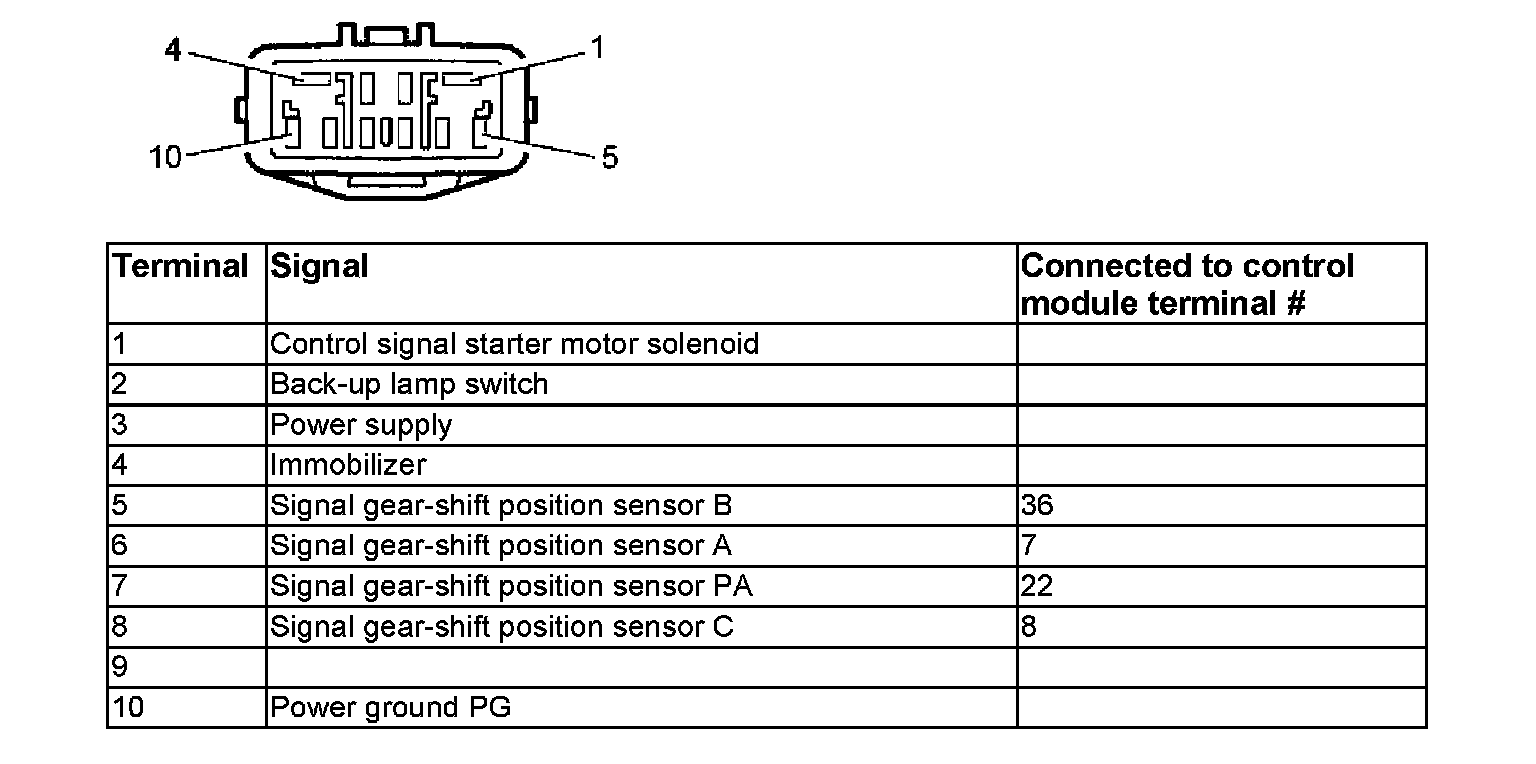

5. Connector, light gray 10-pin
