Home >> Volvo >> 2004 >> V70 L5-2.3L Turbo VIN 53 B5234T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3LG

54/3LG

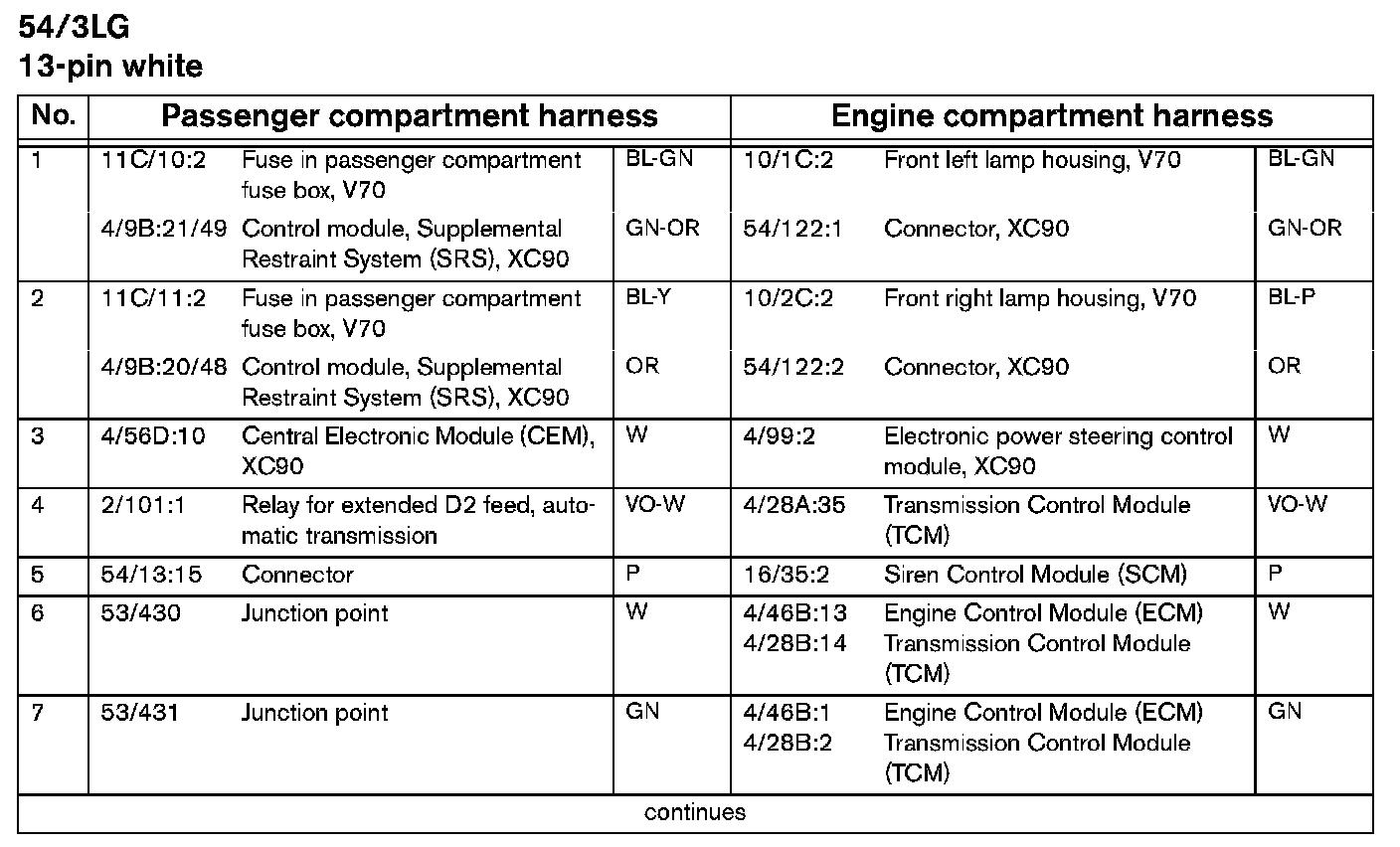

54/3LG - Part 1:

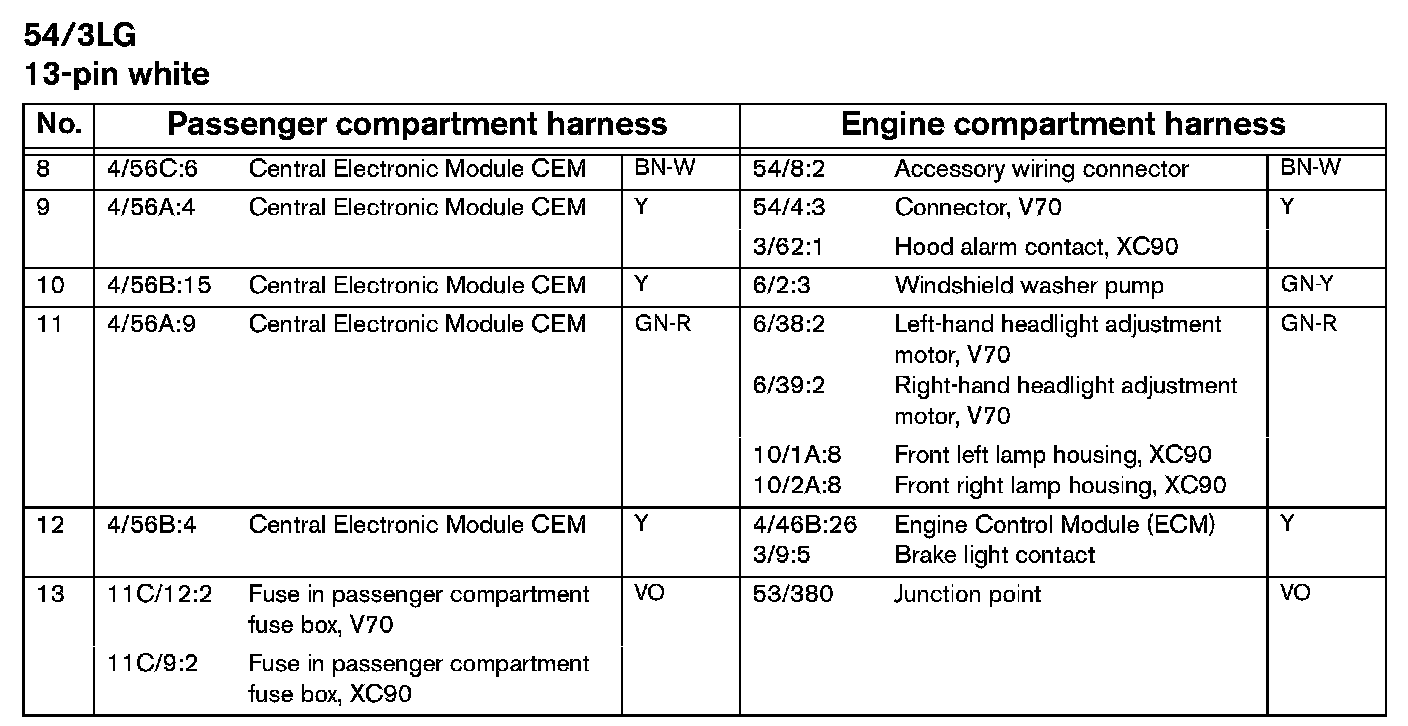

54/3LG - Part 2:



54/3LA-G Connector:
