Audio Adapter Wiring

Audio Adapter Wiring

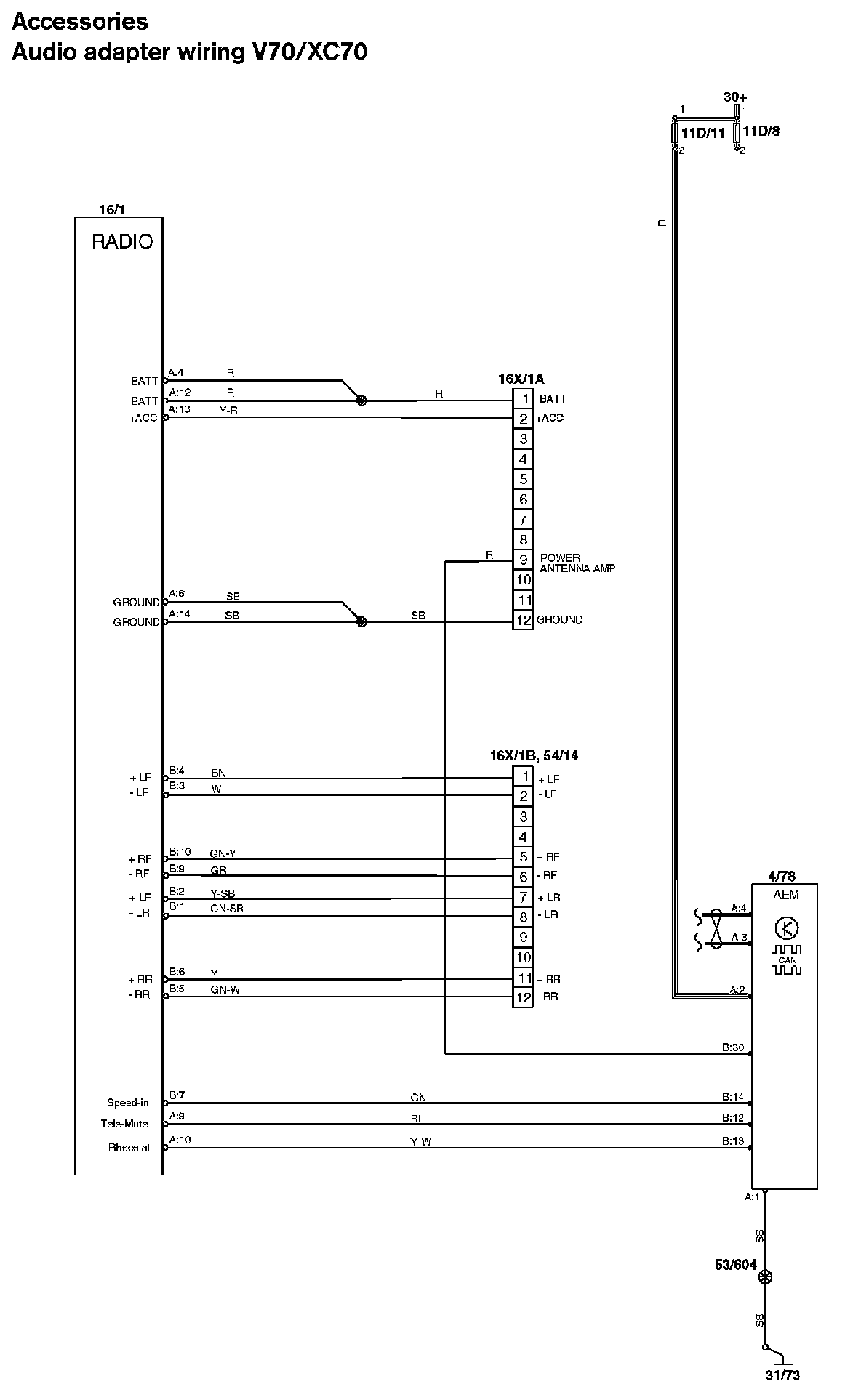

Accessories, Audio Adapter Wiring:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
