Engine: Locations

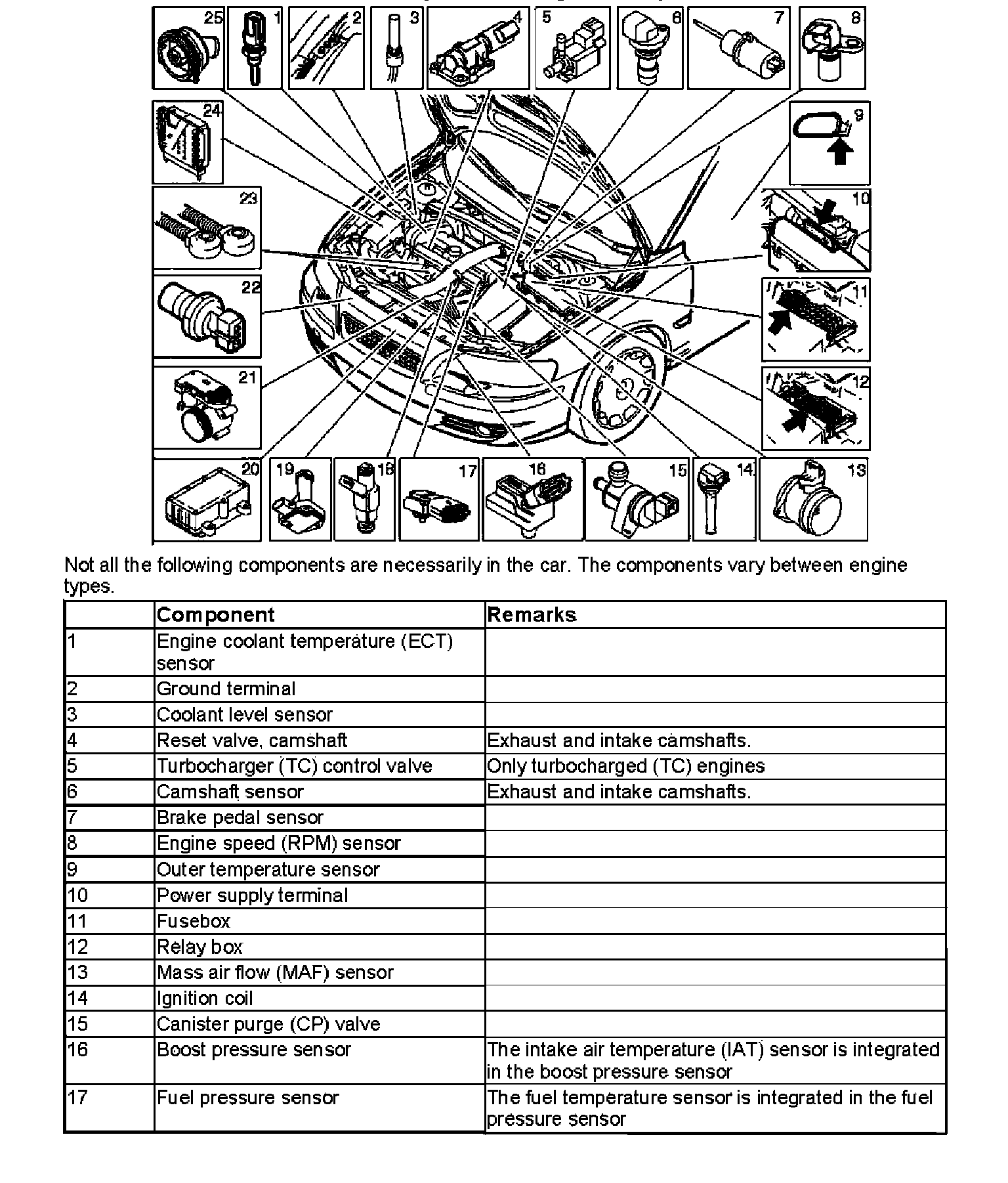

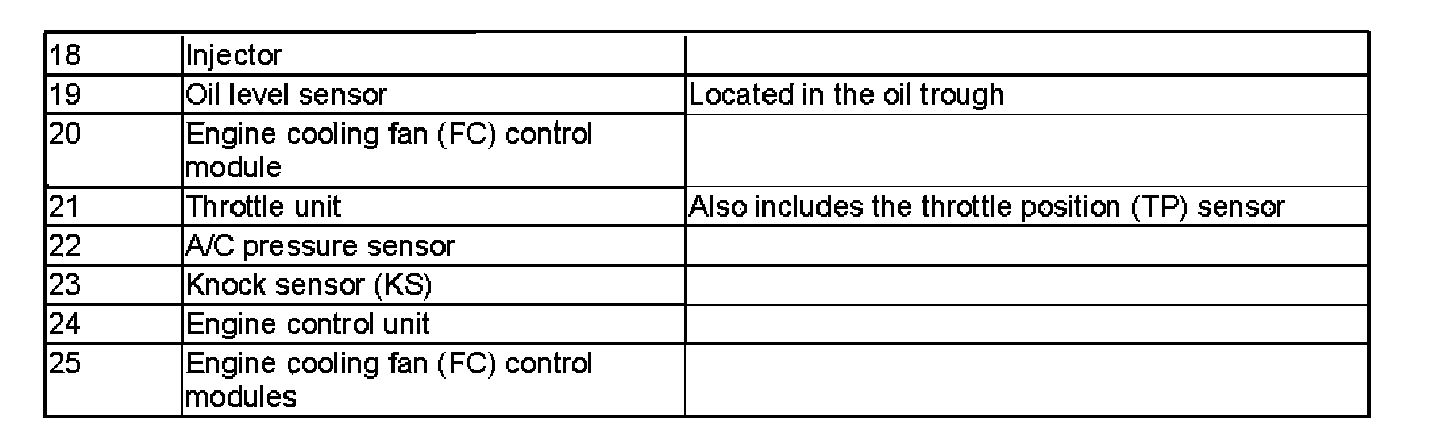

Location of components, engine compartment
Not all the following components are necessarily in the car. The components vary between engine types.
Not all the following components are necessarily in the car. The components vary between engine types.
