Engine: Tools and Equipment

Sealing micro-enclosed screws

Note: Micro-enclosed screws are used where the seal requirements are high. Loose screws are replaced or sealed with new sealing compound. Sealant "HYDRAULIC THREAD SEAL" has P/N 11 61 056-5 and sealing must be carried out according to the instructions on the packet.

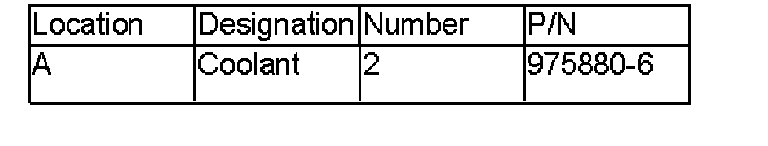

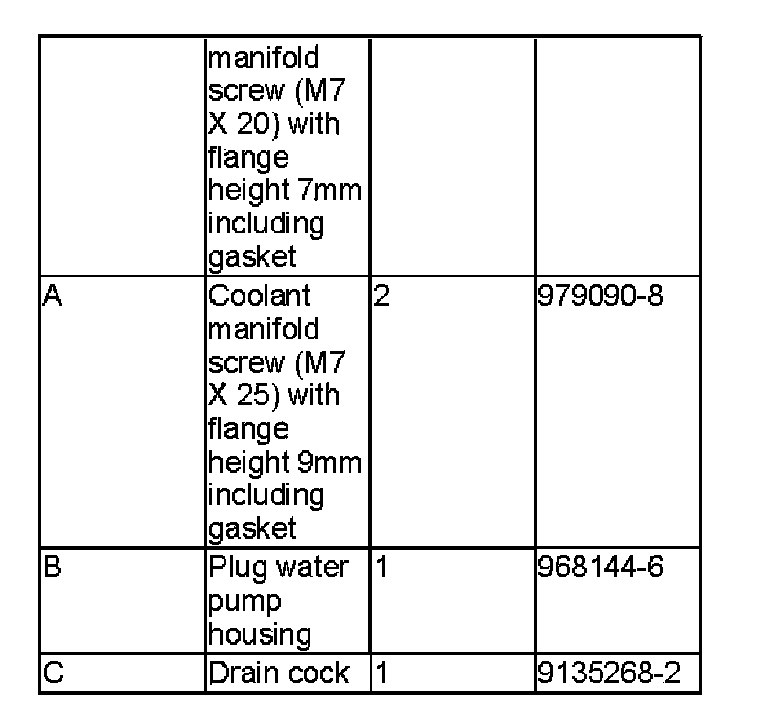

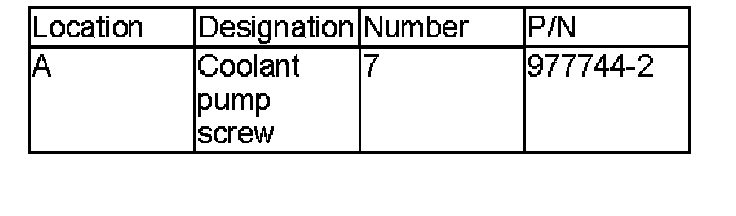

The screws to be sealed with "HYDRAULIC THREAD SEAL" and their positions are shown.

Note: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Sealant
"Hydraulic thread sealant"





- P/N 11 61 056-5
- Use a brush and/or the packet spout to apply the sealant to the screw.
- Avoid skin contact with the sealant.

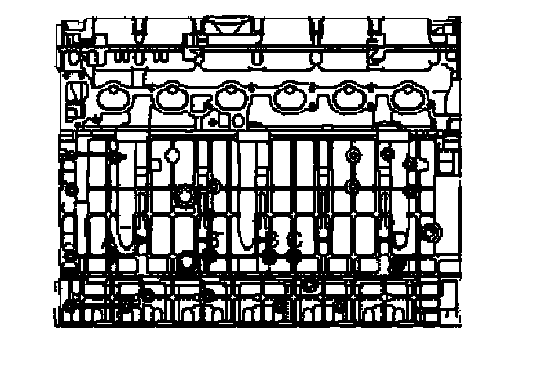

Engine intake side

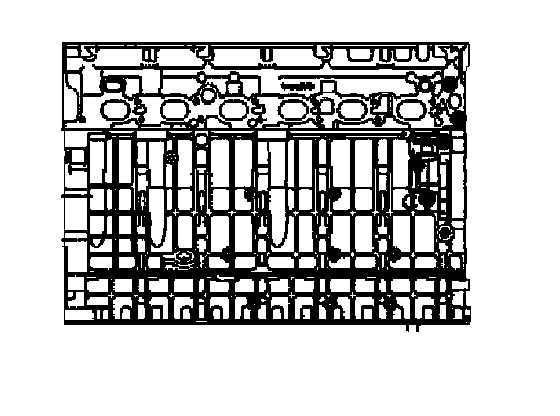

Engine exhaust side

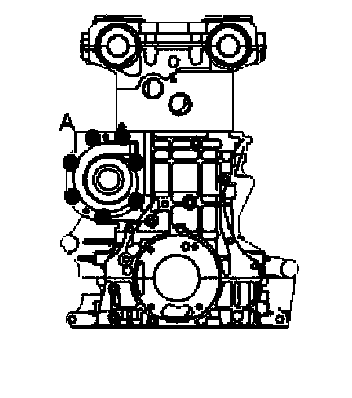

Rear of engine

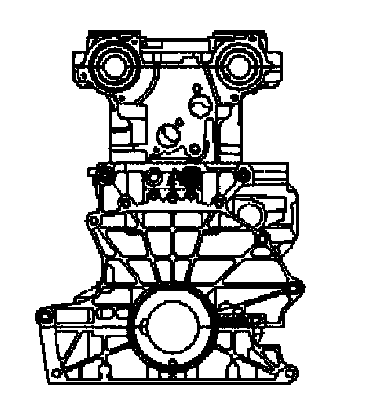

Engine front
