System Specifications

Specifications

Note! The illustrations in this service information are used for different model years and/or models. Therefore there may be some variation. However, the essential information in the illustrations is always correct.

Lubrication and oil system

12.5 r/s (750 r/min).0.10 Mpa(1)
67.7 r/s (4000 r/min).0.35 Mpa(1)
Maximum oil pressure (the relief valve opens). 0.65 Mpa
(1)The oil pressure given is for an oil temperature of 100° C, which is reached after 10-15 minutes driving.

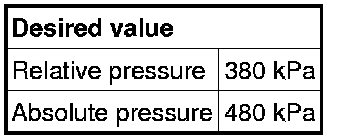

Fuel line pressure






Cooling system

Marking. 90
Starts to open at. 90° C
Fully open at. 105° C
