Bevel Gear






Bevel gear

Operation number: 43330-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Note! Note the position of the component before removal.

999 5743 Counterhold 999 5743 Counterhold

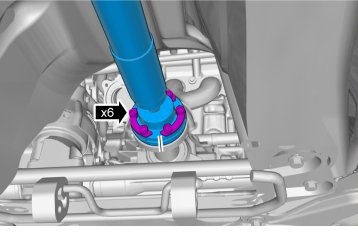

Tightening torque: Propeller shaft (CV joint, 6 screws) Refer to: Tightening Torque

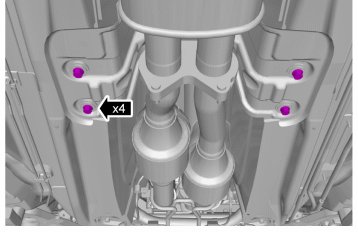

Tightening torque: M8 Refer to: Tightening Torque

Remove the starter motor. Refer to: Starter motor, B6324S Service and Repair

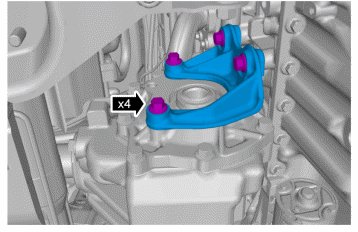

Tightening torque: Bevel gear bracket. Refer to: Tightening Torque

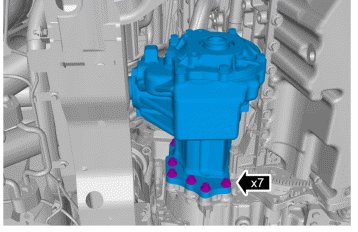

Tightening torque: Bevel gear. Refer to: Tightening Torque

Installation

To install, reverse the removal procedure
