Subwoofer



Subwoofer

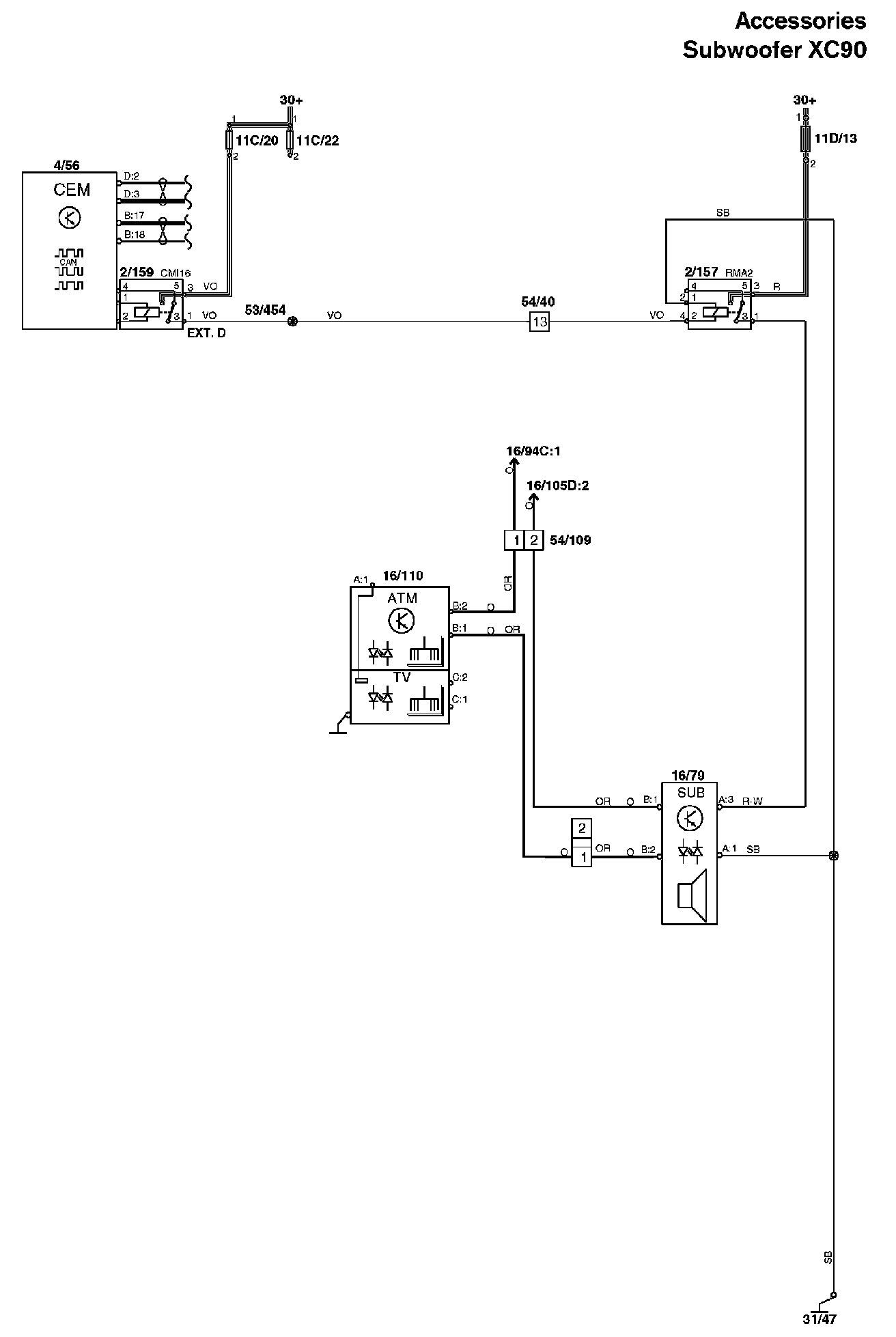

Accessories, Subwoofer:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
