Drivetrain - Front Axle Pinging Noise On Garage Shifts
NO: 77-09DATE: 3-25-2004
MODEL: XC90 (only)
M.YEAR: 2003-2004
CHASSIS: 000001 - 092938
SUBJECT: Front axle ping noise
REFERENCE: VADIS
DESCRIPTION:
When performing garage shifts (Drive to Reverse / Reverse to Drive), the hub axle interface may make a ping type noise. This noise may also be heard while cruising and changing from acceleration to deceleration.
SERVICE:

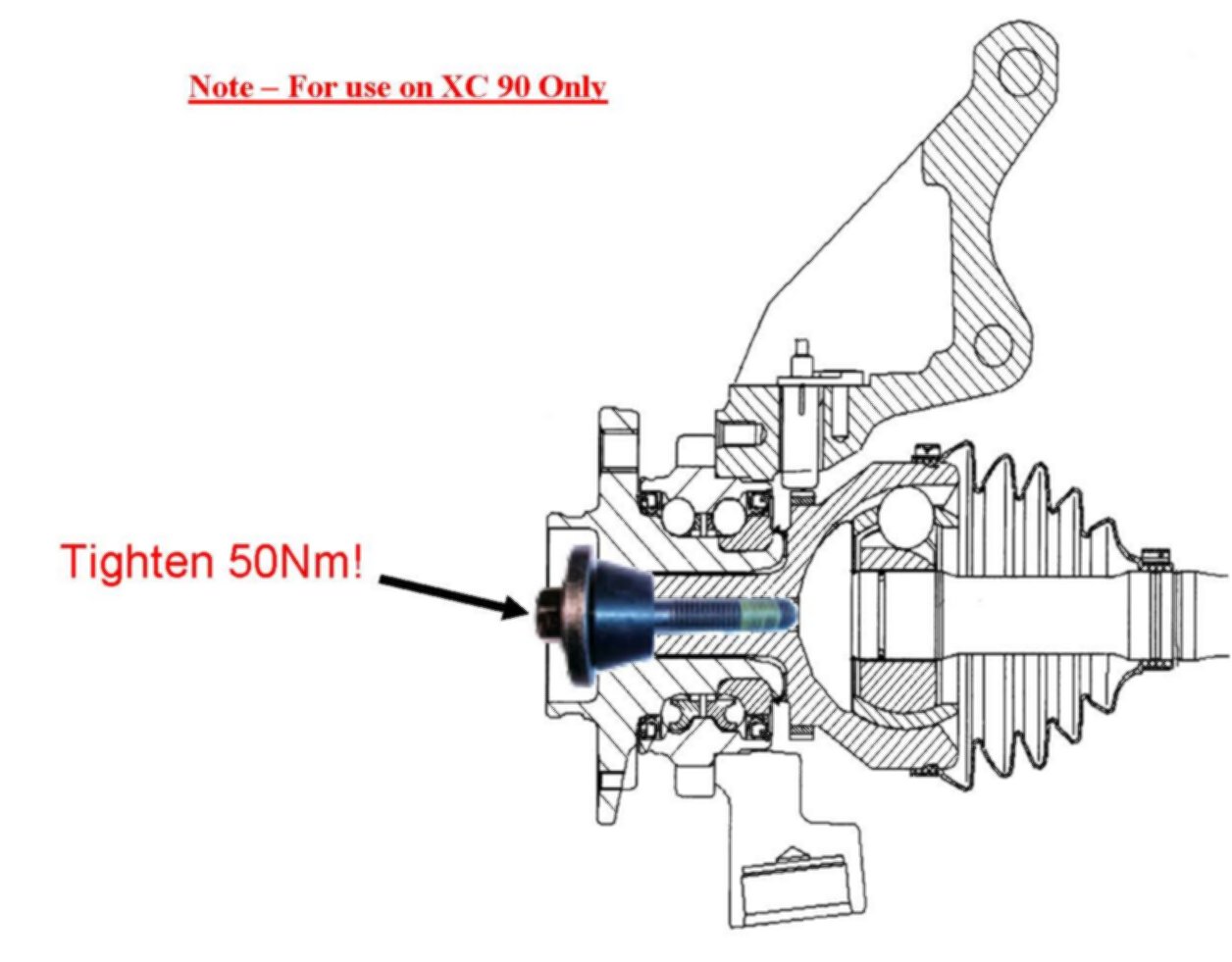

On Vehicles within the above chassis break a new axle bolt and spacer assembly can be installed. Remove the existing axle bolt and install the new bolt and spacer assembly (PN 30714142 x 2) on both front axles as per illustration (Shown). Tighten the new bolt to 50 Nm.

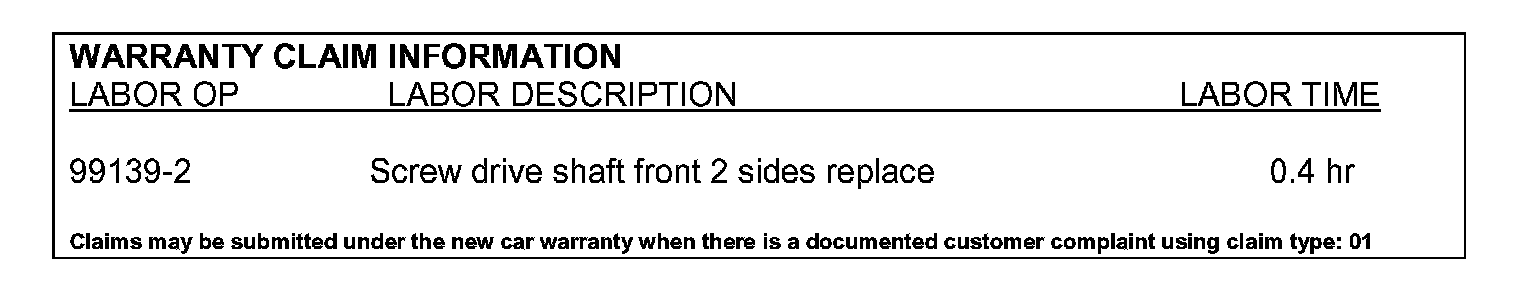

Warranty Claim Information
