Interior - 2nd Row Rear Seat Belts Get Caught in Door
XC902003-2004
Section
8
Group
88
No.
0034
Year
03
Month
09
Belt guide seat belt rear, installing
Background
A new belt guide has been introduced as a service solution to prevent the locking tab of the outer seat belts for the 2nd row rear seat from catching in the door.
Affected vehicle
Model Factory Chassis No.
XC90 1 -467977
Material
Description Quantity P/N
Belt guide, graphite L (kit) 1 30675135
Belt guide, graphite R (kit) 1 30675231
Belt guide, oak L (kit) 1 30675233
Belt guide, oak R (kit) 1 30675235
Seat belts and other retention systems
Belt guide, installing

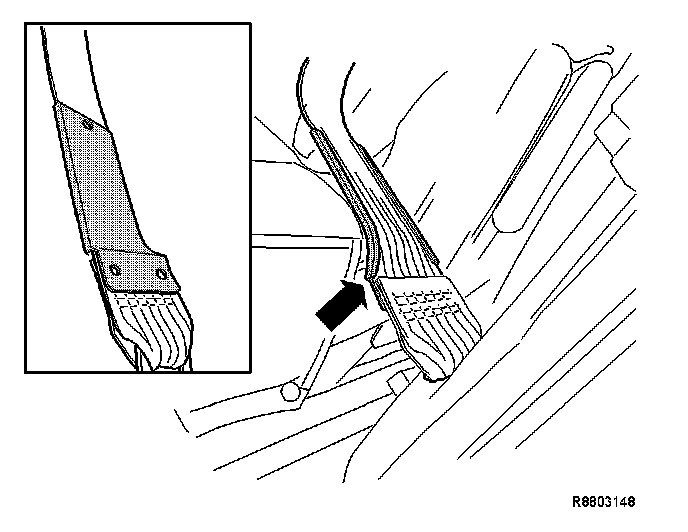

Installing the belt guide 1
Install the belt guide on the inside of the seat belt.
The profile of the belt guide must align with the doubled over section of the seat belt.

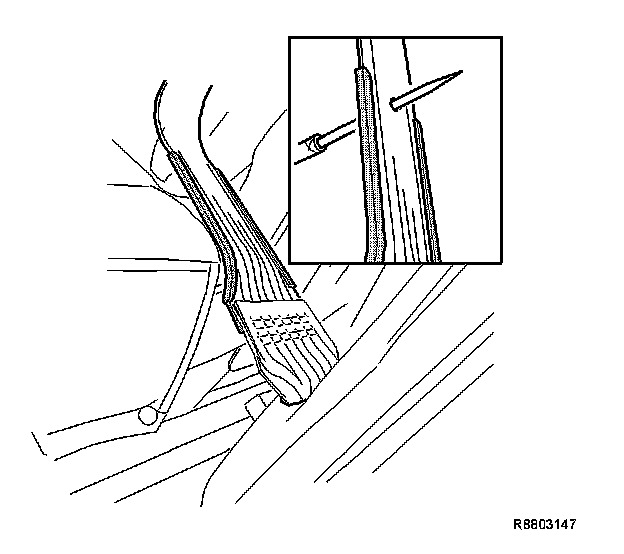

Marking for the upper rivet 2
Using an awl, carefully make a mark for the upper rivet by pushing through the guide and seat belt webbing.

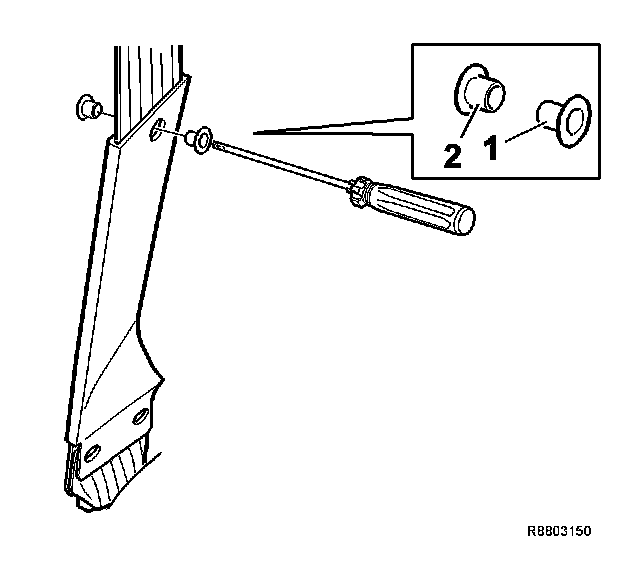

Installing the upper rivet 3
Insert the rivet 1 (longer piece) through the belt guide and the seat belt (as illustrated).
Hint: Position the rivet on a torx 15 driver to make installation easier (as illustrated).
Install rivet cap (2) (as illustrated).
Securing the rivet 4
Apply tape (1) to the jaws of a slip joint adjustable plier to protect the rivet from scratches.
Compress the rivet with the pliers.

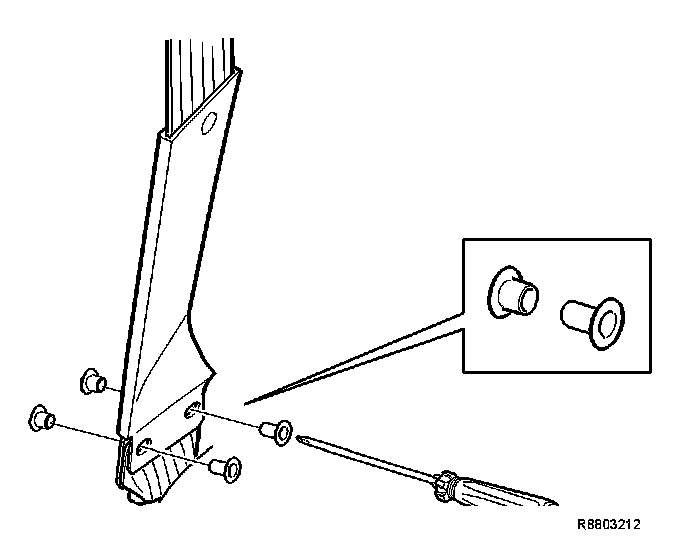

Installing other rivets 4
Install the remaining rivets on both of the lower mountings for the belt guide as described in steps # 2 and # 3.
Check the function of the seat belt.
WARRANTY STATEMENT:
Claims may be submitted under the New Car Warranty when there is a documented customer complaint, using claim type 01.
