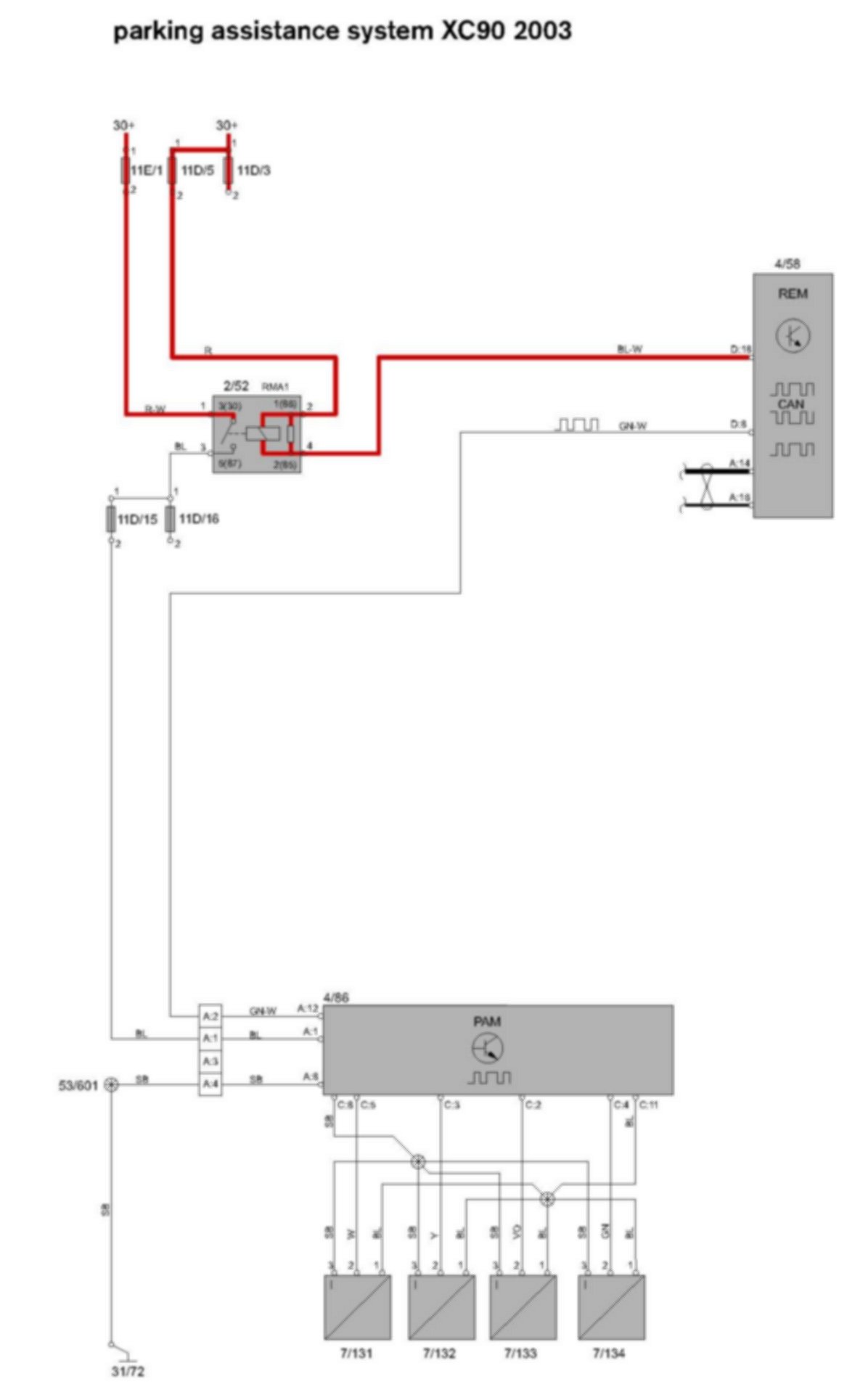

Parking Assist System - Wiring Diagram Supplements

S80 2004
XC90 2003-2004

Dept
3

Group
39

No.
0043

Year
04

Month
10

Reference:

TP 3970032, Department (39) Wiring diagram, S60/S6OR/S80 2004
TP 3964032, Department (39) Wiring diagram, V70/XC70 & XC90 2003
TP 3971032, Department (39) Wiring diagram, V70/XC70/V70R/XC90 2004

Supplemental information

Background:




















This Service Bulletin contains supplemental information for the factory installed reverse parking assistance system listed in the wiring diagram manuals listed above

Please make reference of this Bulletin in each of the manuals.

Please note in relevant information that there is a service bulletin for the aforementioned car models.
