Home >> Volvo >> 2005 >> S40 AWD L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/30

64/30

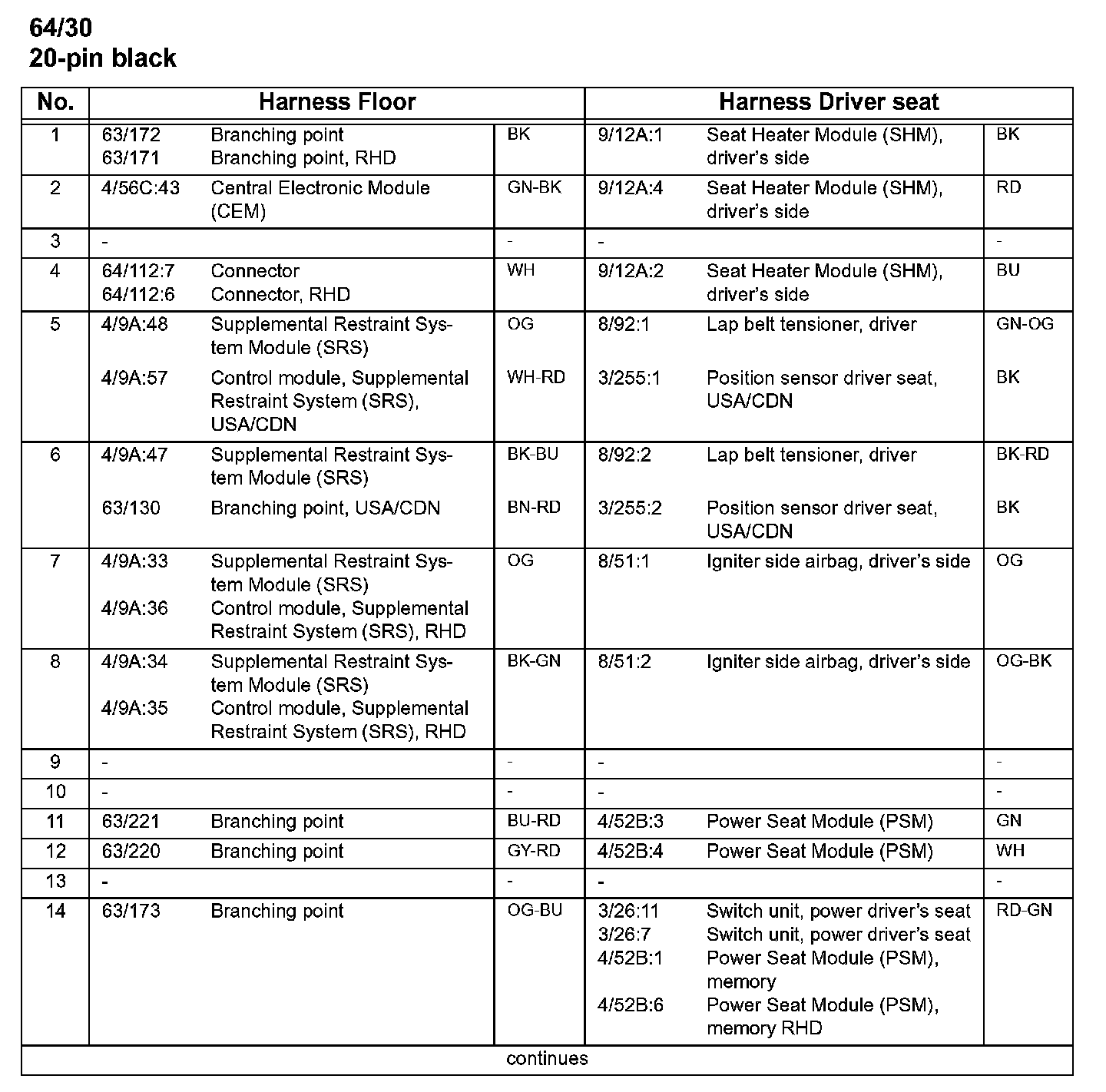

64/30, Part 1:

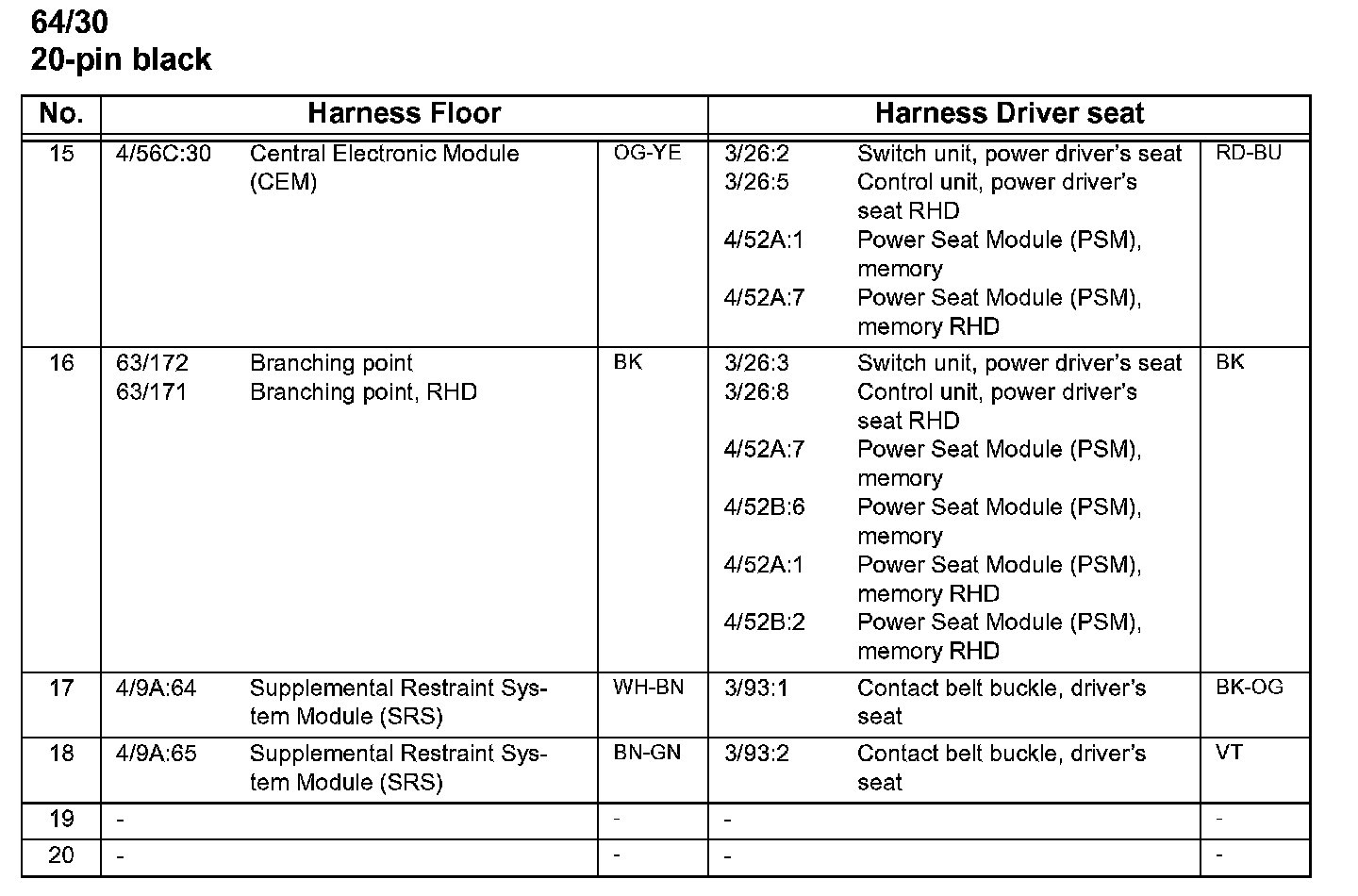

64/30, Part 2:

64/30 Connector:
