Home >> Volvo >> 2005 >> S40 AWD L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/31

64/31

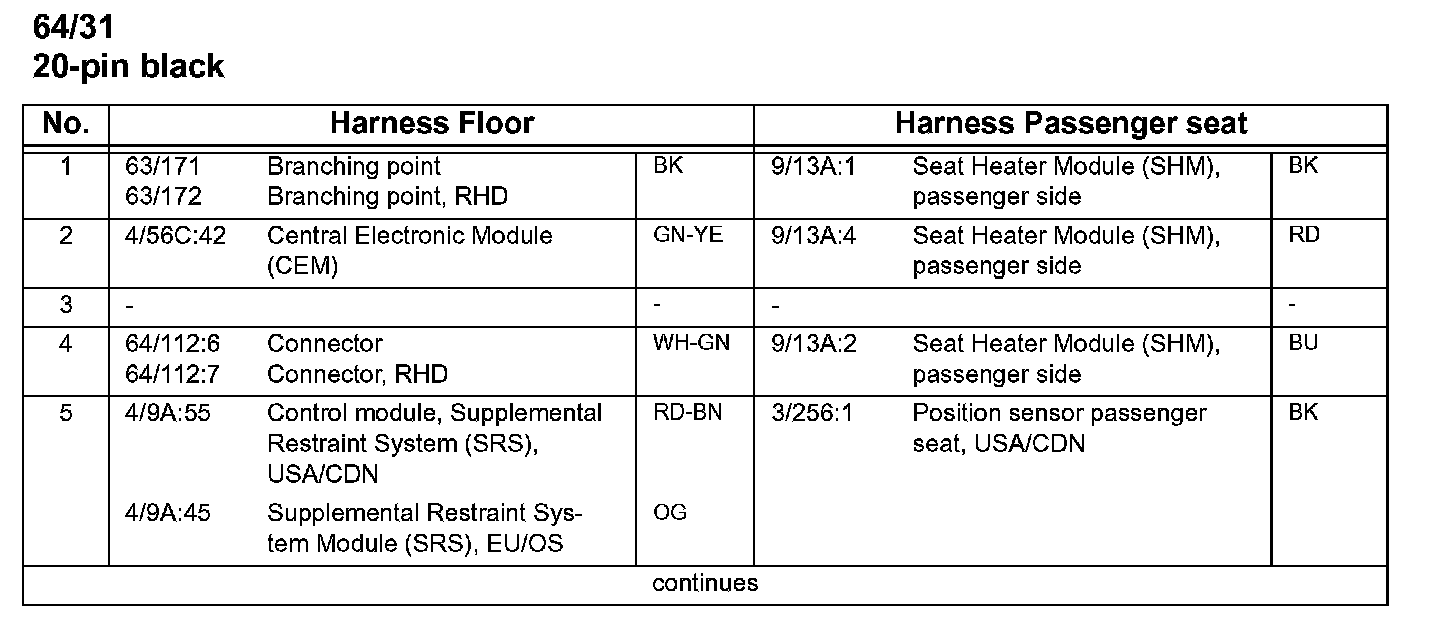

64/31, Part 1:

64/31, Part 2:

64/31 Connector:
