Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2005 >> S40 AWD L5-2.5L Turbo VIN 68 B5254T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 64/425

64/425

64/425:

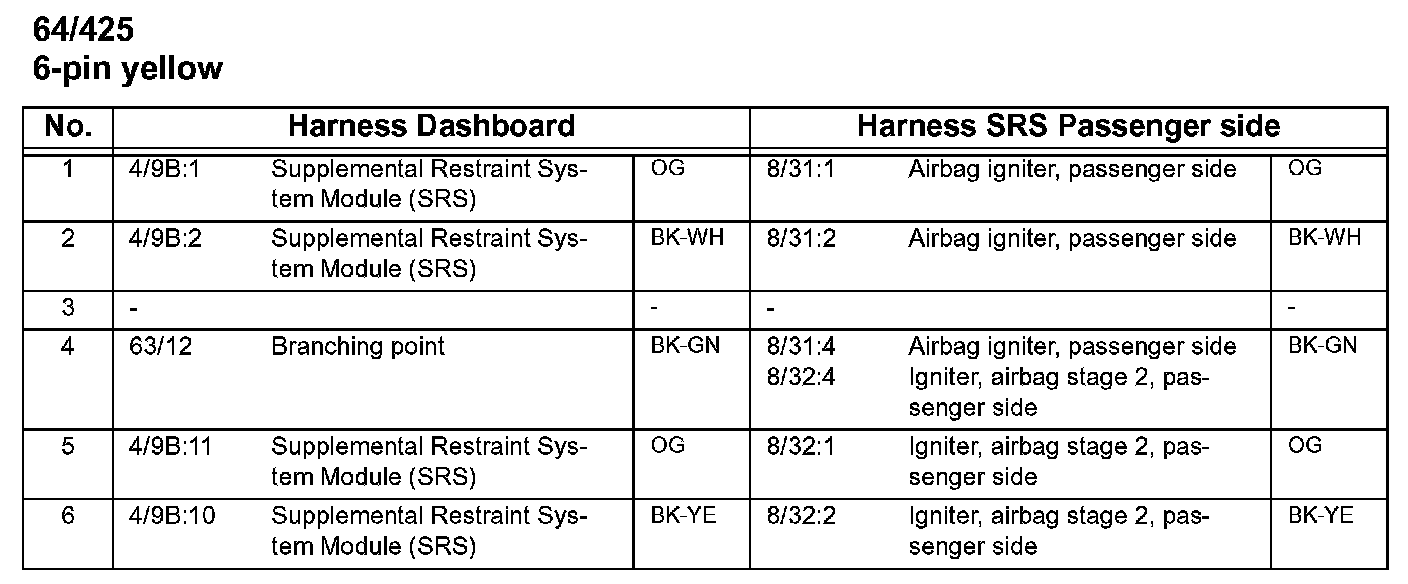

64/425 Connector:
