Receiver Dryer: Service and Repair

Air Conditioning, B5254T3, L.H.D

Accumulator

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Draining the air conditioning (A/C) system and removing components

WARNING: Follow the safety instructions for work on air conditioning systems. See: Refrigerant, safety regulations.

Read the instructions for slow and fast leaks acc. to: AC-system, refilling.

CAUTION: Always use new O-rings lubricated with compressor oil.

NOTE: Plug the pipes and connections when working on the climate control system.

Drain the refrigerant from the air conditioning (A/C) system. See: Refrigerant, draining.

Remove:
- right-hand front headlamp.
- the bumper shell.

Remove:
- the front edge of the right-hand fender liner
- the plastic nut, x 1

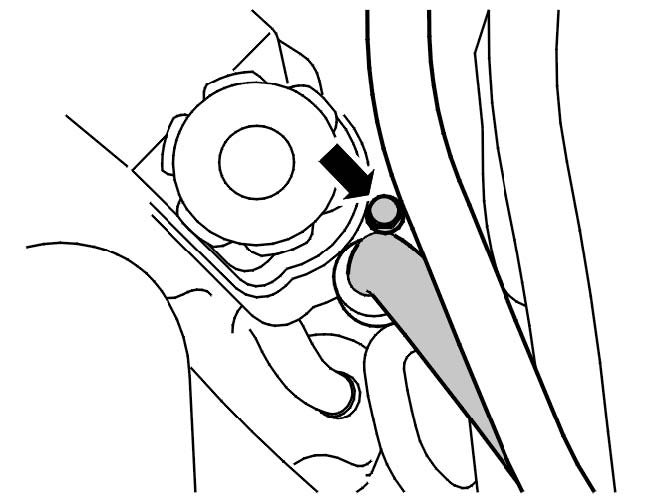

- the retaining clip against the engine cover under the vehicle.

Removal

Removing receiver

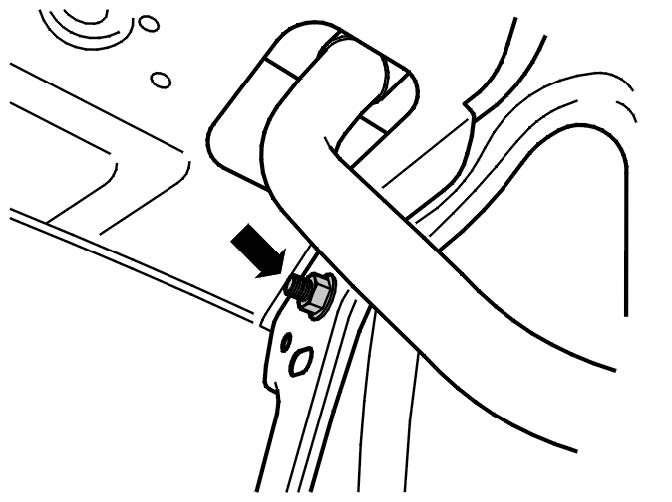

Remove the nut under the front fender liner on the righthand side. See the illustration.

NOTE: Lubricate the thread using a little rustproofing agent so that the pressed in screw does not come loose.





Disconnect the pipe / hose connection to the receiver. See the illustration.





Remove:
- the screw (A) for the pipe coupling
- the 3 screws (B) for mounting the receiver. Remove the receiver.

Installation

NOTE: For tightening torques, see: Tightening torque. Mechanical Specifications

Installing receiver

Fill the recommended volume of compressor oil. See: AC-system, refilling.

NOTE: Install the receiver within 5-10 minutes of the plugs having been removed. This prevents the absorbent material absorbing moisture from the air.

Install:
- the receiver together with 3 M8 screws. Tighten
- the pipe couplings, 2 x M8. Make sure the O-rings are securely located. Tighten the screws
- the M8 nut below the fender liner. Tighten
- the fender liner together with the plastic nut and the retaining clip.

Finishing

Checking the function and leak tracing

Vacuum pump the air conditioning (A/C) system. See: Vacuum pumping. Fill the air conditioning (A/C) system with refrigerant. See: Refrigerant, filling. Leak trace the air conditioning (A/C) system. See: Leak detection, tracer agent or: Leak tracing, electronic leak detector.

Installing components and checking performance

Install:
- the bumper cover.
- right-hand front headlamp.

Carry out a performance test on the climate control unit. See: Climate control system, check.
