Interior Lighting

Interior Lighting

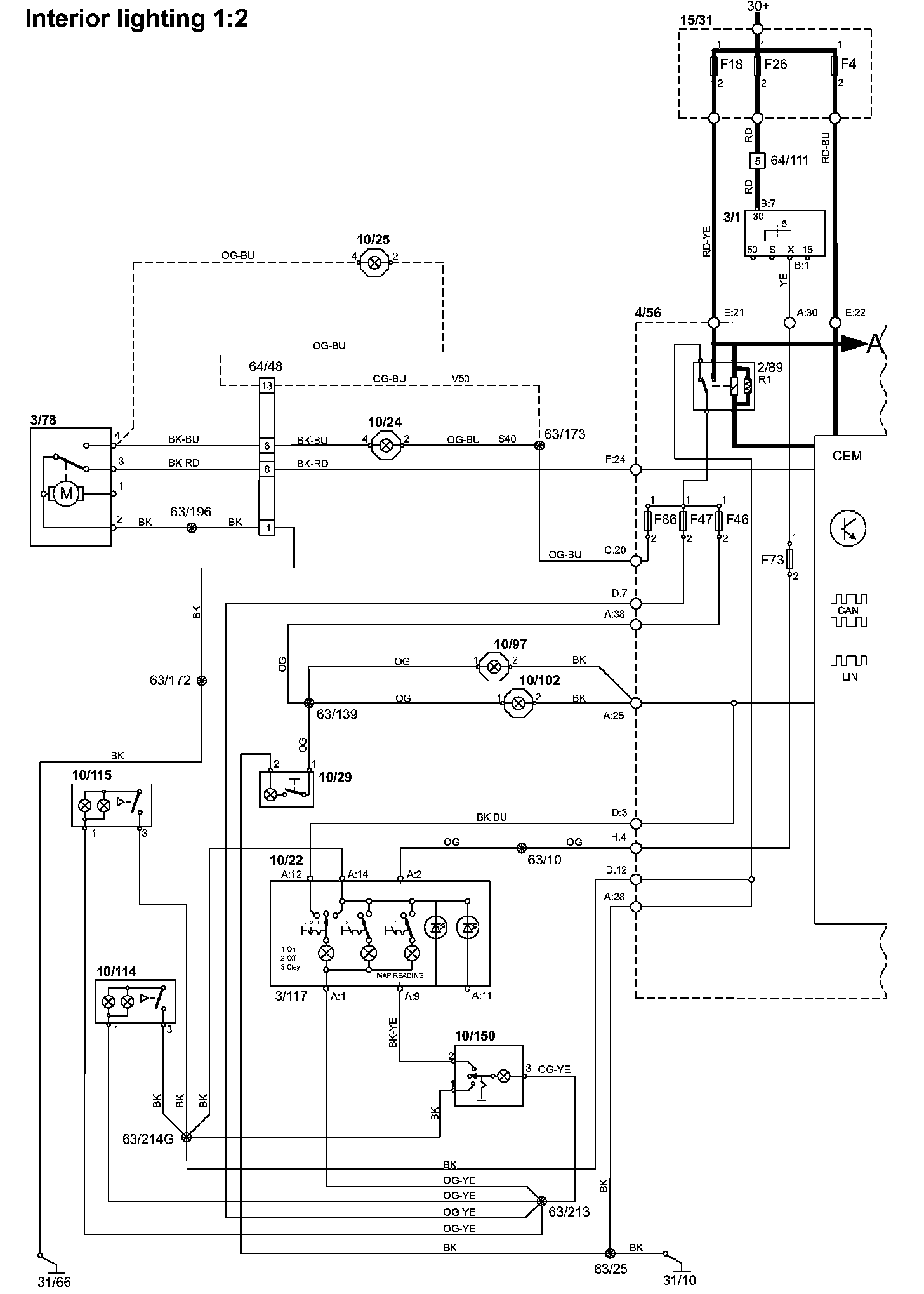

Interior Lighting, Part 1:

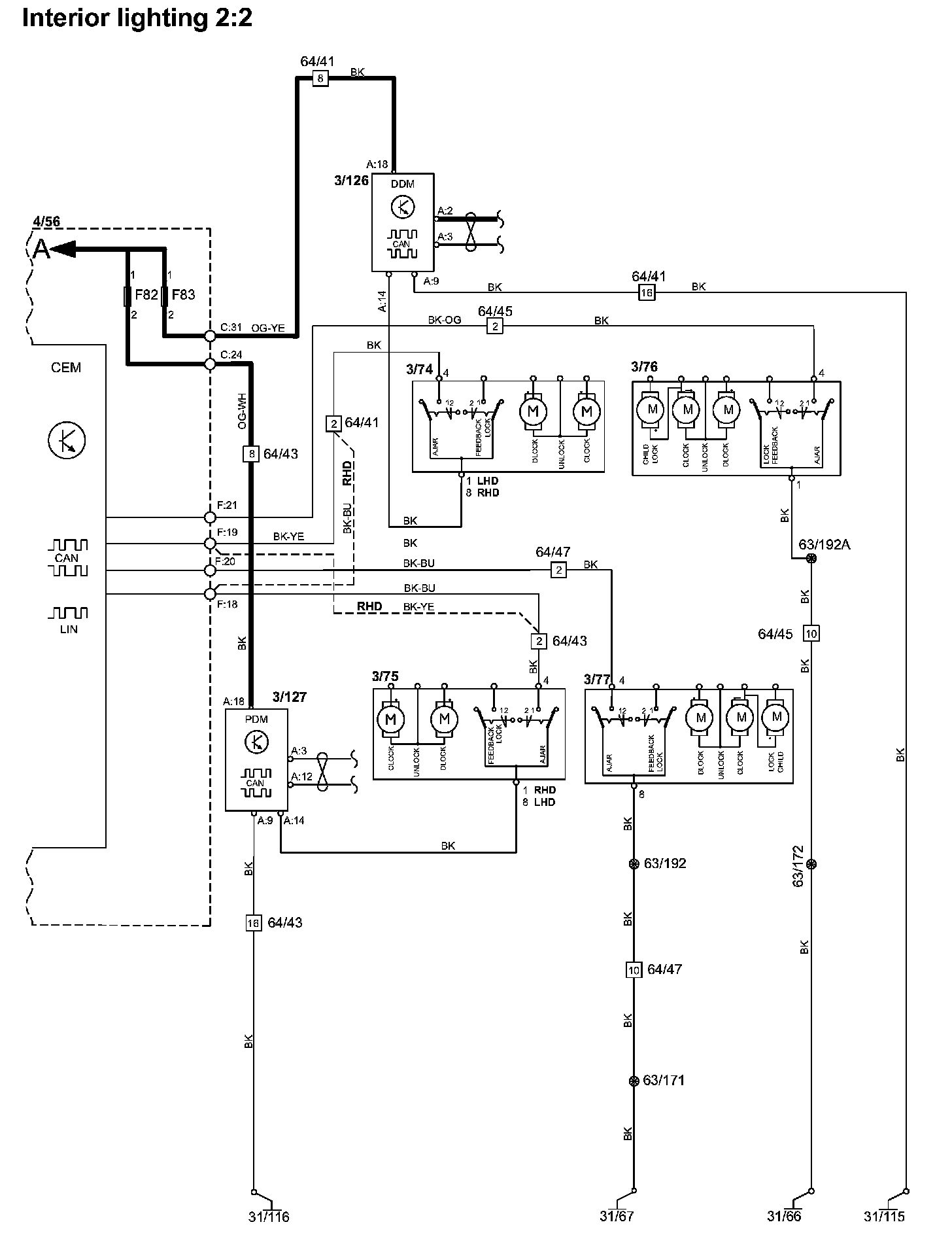

Interior Lighting, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
