Electrical Diagrams

Supplemental Restraint System (SRS)

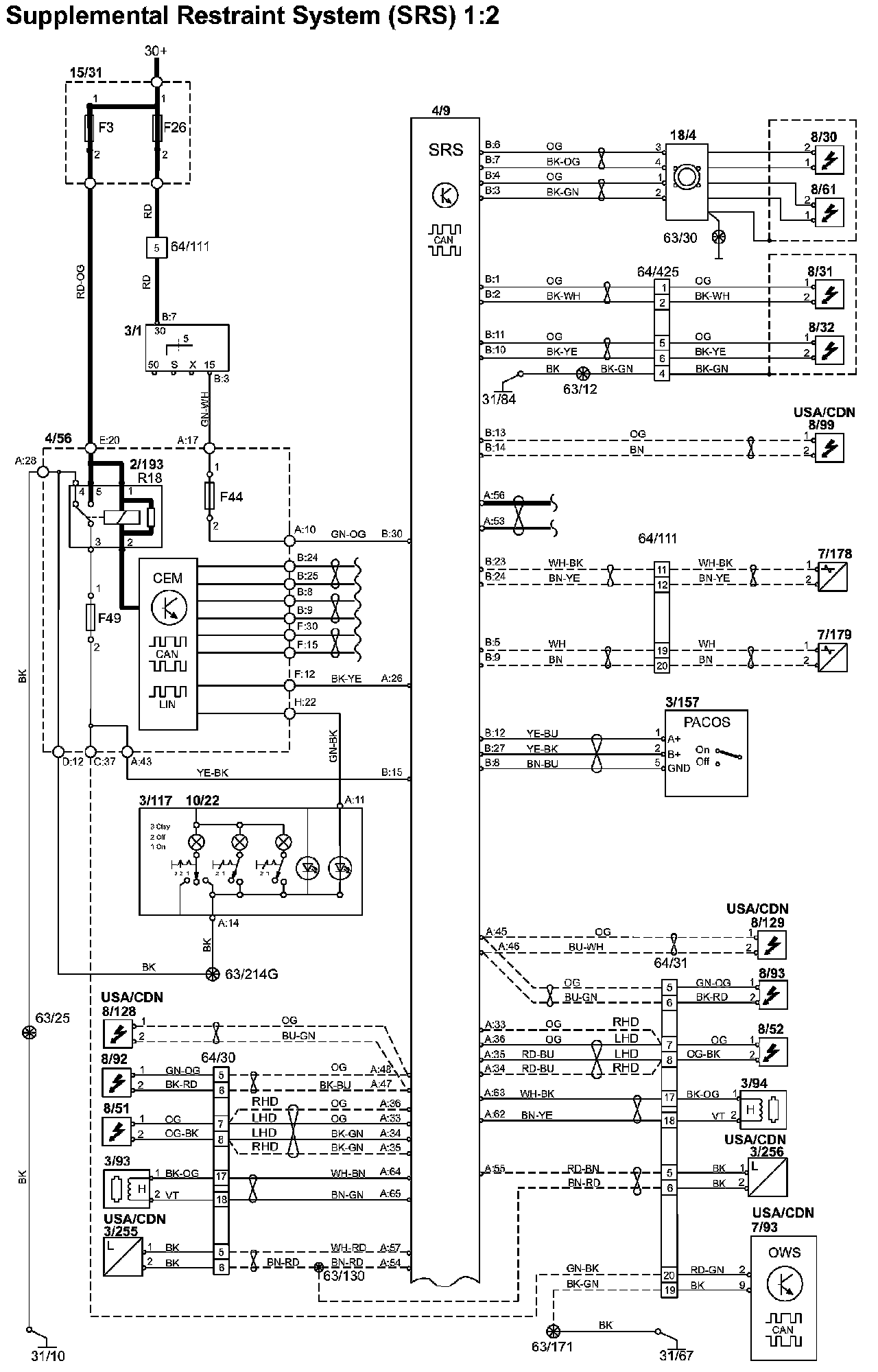

Supplemental Restraint System (SRS), Part 1:

Supplemental Restraint System (SRS), Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
