Entertainment Systems

Rear Seat Entertainment (RSE)

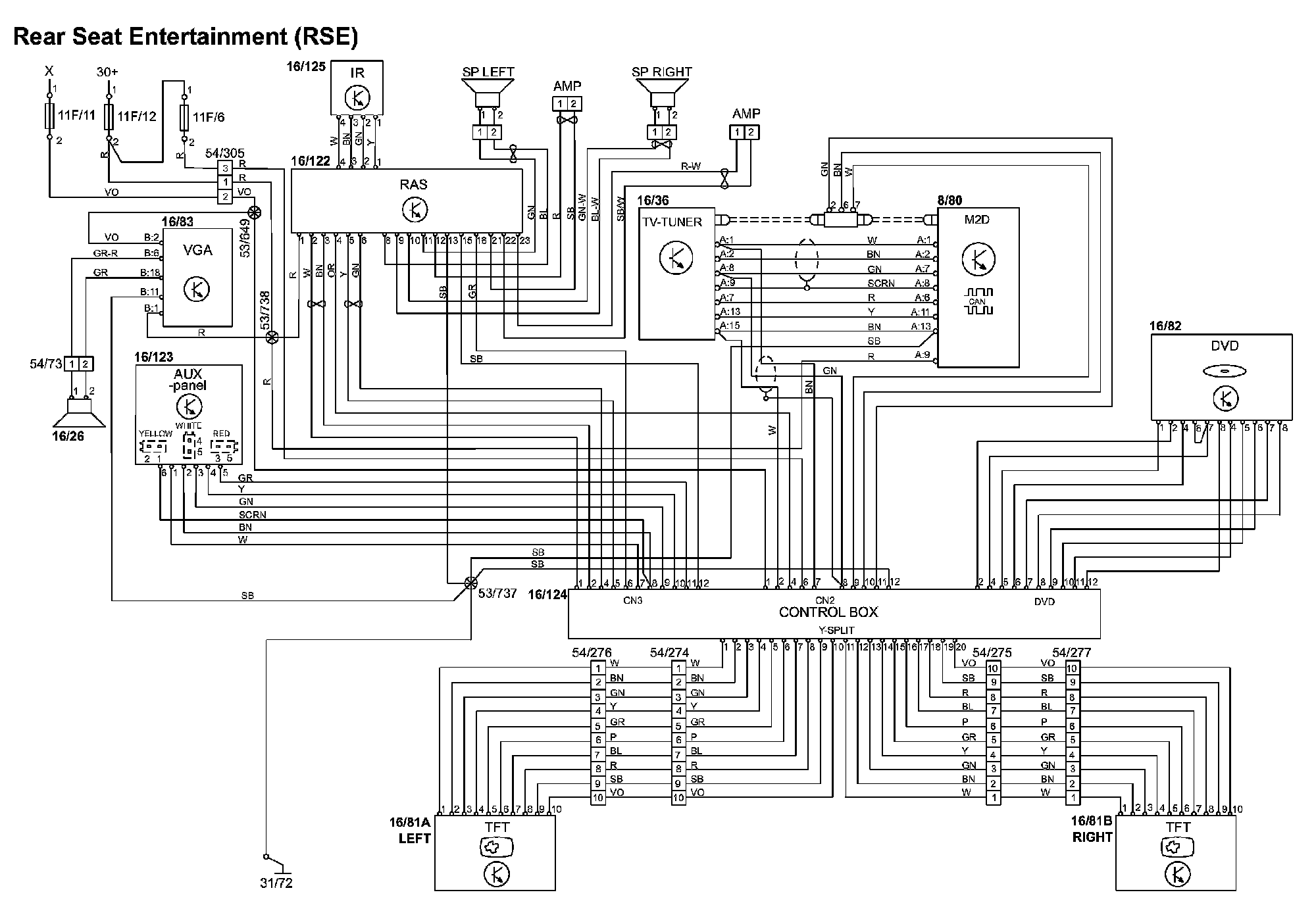

Rear Seat Entertainment (RSE):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
