Tow Hitch, Fixed

Tow hitch, fixed





































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Tow hitch, fixed

Preparations




- Remove the four screws (1) for the bumper cover. The screws are underneath/on the sides of the tailgate opening and in the lower edge of the bumper.





Carry out on both the left and right-hand sides:
- Remove the six screws (1) holding the bumper cover at the rear edge of the wing liner in the rear wheel arch.





Carry out on both the left and right-hand sides:
- Detach the end of the bumper cover by grasping it inside the wing liner and carefully pulling until the catches at the top edge release.




- Remove the bumper cover by pulling it straight backwards.
- Disconnect any parking assistance connectors.




- Clean any underseal and dirt from the inner member of the bumper where the L-profile for the tow hitch is to be located.
- Clean the metal flange on the inside and outside where the reinforcement stay is to be located.




- Install the L profile on the inner member of the bumper with four M10x25 flange screws and corresponding flanged nuts. Do not tighten yet.




- Fit the tow hitch retainer on the L profile using two M14x110 flanged screws and corresponding flanged nuts. Do not tighten yet.





Applies to cars with 5-cylinder engines
- Place a support under the silencer.
- Detach the silencer's rubber mounting from its brackets on the right-hand and left-hand side.





Applies to cars with 5-cylinder engines
- Remove the screws and brackets of the silencer mounting on the right and left side.





Applies to cars with 4-cylinder engines
- Detach the rubber mounting for the end pipes from the bracket on the underside of the left-hand side member.
- Remove the screw and the bracket.

Installation

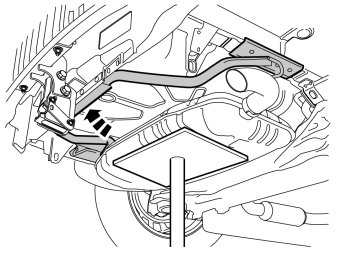

- Insert the reinforcement stay from the back over the silencer.




- Install three M8x30 screws with washers on each side of the reinforcement stay. Do not tighten yet. Install in the order illustrated.








- Install four M10x25 flange screws, which are screwed through the tow hitch cradle and reinforcement stay in the mounting plate. Do not tighten yet.

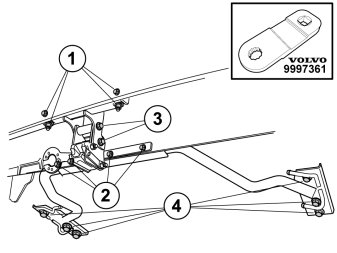

- Tighten the L profile's four M10 screws (1) alternating so that the L profile and the inner member of the bumper lie against each other correctly. Tightening torque: 47 Nm (35 lbf.ft).
- Tighten the four M10 screws (2) of the towbar retainer and reinforcement stay alternating. Tightening torque: 47 Nm (35 lbf.ft).
- Tighten the two M14 screws (3). Tightening torque: 200 Nm (147 lbf.ft).
- Tighten the six screws (4) for the reinforcement stay's front mountings alternately. Torque tighten to 20 Nm (15 lbf.ft), angle tighten to 90°. There is not much space for torque tightening the middle screw, use special tool, 9814102 with a 3/8" socket extension.




- Refit the rubber mounting.
- Remove the support from under the silencer.
- Install the tow hitch wiring following separate installation instructions.

Illustration A





Applies to cars without body kit
- Apply tape to the outside of the bumper cover, opposite the marking (1) on the inside. This is done to protect the paint from the saw when cutting out the cut-out for the towbar.
- Cut out the cut-out following the existing marking. The marking on the bumper cover is only a thin line.

Note! Do not damage the painted surface of the bumper cover.

- Smooth off the sawn edges with a fine toothed file or knife. Remove the tape.

Illustration B





Applies to cars with body kit
- On older spoilers this mark does not exist. Therefore, make a mark as follows: Height 100 mm, start from the mark to the left in the image (1). Width 250 mm. Start from the mark at the top of the image (2). The radius of the two corners is 30 mm




- Reinstall the bumper cover to the body.
- Connect any parking assistance connectors.
- Press the bumper cover ends so that they engage in the body mountings.
- Reinstall the screws in the wheel arches, on the top and at the lower edge of the bumper cover.
